File Detail parts/s/32333s02.dat

Unofficial File parts/s/32333s02.dat

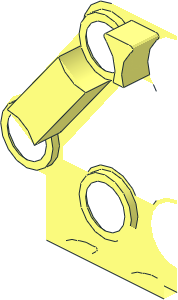

~Technic Brick 5 x 3 x 1 with 8 Pegholes and 2 Studs - Quarter

File Header:

0 ~Technic Brick  5 x  3 x  1 with  8 Pegholes and  2 Studs - Quarter
0 Name: s\32333s02.dat
0 Author: Vincent Messenet [Cheenzo]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

1 16 0 10 10 -9 0 0 0 0 -9 0 -8 0 1-8cylo.dat
1 16 -20 10 10 9 0 0 0 0 -9 0 -8 0 1-8cylo.dat
1 16 -20 10 10 0 0 -9 9 0 0 0 -8 0 3-16cylo.dat
1 16 -44 42 10 0 0 9 -9 0 0 0 -8 0 3-16cylo.dat
4 16 -8.41 13 2 -9 10 2 -9 10 10 -8.41 13 10
4 16 -11 10 2 -11.59 13 2 -11.59 13 10 -11 10 10
5 24 -11 10 10 -11 10 2 -11.59 13 2 -11.6849 6.5557 2
5 24 -9 10 10 -9 10 2 -8.3151 6.5557 2 -8.41 13 2

1 16 -20 10 10 0 0 1 -1 0 0 0 -1 0 3-4ring8.dat
1 16 -20 10 10 -9 0 0 0 0 -10 0 -1 0 1-4ering.dat
1 16 -20 10 10 -8 0 0 0 0 -8 0 -1 0 1-4tang.dat
1 16 -20 10 10 -9 0 0 0 0 -10 0 -1 0 1-4edge.dat
1 16 -20 10 10 -1 0 0 0 0 1 0 -1 0 peghole.dat
1 16 -44 42 10 -1 0 0 0 0 1 0 -1 0 peghole.dat
1 16 -20 10 10 6.36396 0 -6.36396 6.36396 0 6.36396 0 -1 0 1-16edge.dat

1 16 -20 50 10 -1 0 0 0 0 1 0 -1 0 peghole.dat
1 16 0 50 10 -8 0 0 0 0 8 0 -1 0 1-4ndis.dat
1 16 -20 50 10 8 0 0 0 0 8 0 -1 0 2-4ndis.dat
1 16 -20 50 6 -8 0 0 0 0 8 0 1 0 2-4ndis.dat
1 16 0 50 6 -8 0 0 0 0 8 0 1 0 1-4ndis.dat
1 16 -44 42 10 0 0 8 8 0 0 0 -1 0 1-4ndis.dat
1 16 0 50 10 -1 0 0 0 0 -1 0 -1 0 1-4ring8.dat
1 16 -20 50 10 -1 0 0 0 0 -1 0 -1 0 2-4ring8.dat
1 16 -20 50 10 -6.36396 0 6.36396 -6.36396 0 -6.36396 0 -1 0 1-4edge.dat

4 16 -11.6849 6.5557 2 -13.6361 3.6361 2 -6.3639 3.6361 2 -8.3151 6.5557 2
4 16 -6.3639 3.6361 2 -13.6361 3.6361 2 -13.3394 1.69 2 -6.6606 1.69 2
4 16 -18.2099 1 10 -1.7901 1 10 -6.6606 1.69 10 -13.3394 1.69 10
3 16 -14.400313 2.757314 10 -13.6361 3.6361 10 -14.9015 2.3698 10
3 16 -14.400313 2.757314 10 -14.9015 2.3698 10 -14.39429 2.17117 10
3 16 -14.39429 2.17117 10 -14.9015 2.3698 10 -16.5557 1.6849 10

0 BFC INVERTNEXT
1 16 -13.6544 2.4171 10 .315 0 -.73989 -.72707 0 -.24593 0 -8 0 8\3-8cylo.dat
1 16 -13.6544 2.4171 2 .315 0 -.73989 -.72707 0 -.24593 0 -1 0 8\3-8chrd.dat
1 16 -20 10 10 0 0 9 -9 0 0 0 -1 0 1-8tang.dat
4 16 -18.2099 1 10 -13.95484 1.729092 10 -14.39429 2.17117 10 -16.5557 1.6849 10
3 16 -13.95484 1.729092 10 -18.2099 1 10 -13.3394 1.69 10
3 16 -13.6361 3.6361 2 -14.400313 2.757314 2 -13.3394 1.69 2
4 16 -13.6361 3.6361 2 -13.6361 3.6361 10 -14.400313 2.757314 10 -14.400313 2.757314 2
2 24 -13.6361 3.6361 2 -14.400313 2.757314 2
2 24 -14.400313 2.757314 10 -13.6361 3.6361 10
3 16 -5.0985 2.3698 10 -6.3639 3.6361 10 -5.599687 2.757314 10
3 16 -5.60571 2.17117 10 -5.0985 2.3698 10 -5.599687 2.757314 10
3 16 -3.4443 1.6849 10 -5.0985 2.3698 10 -5.60571 2.17117 10

0 BFC INVERTNEXT
1 16 -6.3456 2.4171 10 -.315 0 .73989 -.72707 0 -.24593 0 -8 0 8\3-8cylo.dat
1 16 -6.3456 2.4171 2 -.315 0 .73989 -.72707 0 -.24593 0 -1 0 8\3-8chrd.dat
1 16 0 10 10 0 0 -9 -9 0 0 0 -1 0 1-8tang.dat
4 16 -1.7901 1 10 -3.4443 1.6849 10 -5.60571 2.17117 10 -6.04516 1.729092 10
3 16 -6.6606 1.69 10 -1.7901 1 10 -6.04516 1.729092 10
3 16 -6.6606 1.69 2 -5.599687 2.757314 2 -6.3639 3.6361 2
4 16 -6.3639 3.6361 2 -5.599687 2.757314 2 -5.599687 2.757314 10 -6.3639 3.6361 10
2 24 -6.3639 3.6361 2 -5.599687 2.757314 2
2 24 -5.599687 2.757314 10 -6.3639 3.6361 10

1 16 -10 1.69 6 -3.3394 0 0 0 -1 0 0 0 -4 rect2p.dat
4 16 -9 10 2 -11 10 2 -11.6849 6.5557 2 -8.3151 6.5557 2
5 24 -6.3639 3.6361 2 -6.3639 3.6361 10 -5.599687 2.757314 10 -8.3151 6.5557 10
5 24 -13.6361 3.6361 2 -13.6361 3.6361 10 -14.400313 2.757314 10 -11.6849 6.5557 10
5 24 -13.3394 1.69 2 -13.3394 1.69 10 -13.95484 1.729092 10 -6.6606 1.69 10
5 24 -6.6606 1.69 2 -6.6606 1.69 10 -6.04516 1.729092 10 -13.3394 1.69 10

2 24 -36 64 6 0 64 6
2 24 -40 64 10 0 64 10

2 24 -6.364 43.636 10 -7.2768 45.00213 10
2 24 -13.63604 43.63604 10 -12.72318 45.00212 10
2 24 -26.3639 43.6361 10 -27.27682 45.00212 10
4 16 -9 10 2 -8.41 13 2 -11.59 13 2 -11 10 2
2 24 -11 10 10 -11.59 13 10
2 24 -9 10 10 -8.41 13 10
2 24 -11 10 2 -11.59 13 2
2 24 -9 10 2 -8.41 13 2
1 16 -10 13 6 0 0 -1.59 0 1 0 -4 0 0 rect.dat
4 16 -11.6849 13.4443 10 -11.59 13 10 -8.41 13 10 -8.315150136 13.444175152 10
4 16 -12.72 15 10 -11.6849 13.4443 10 -8.315150136 13.444175152 10 -7.28 15 10
4 16 -12 58 6 -8 58 6 -8 50 6 -12 50 6
4 16 -36 48 6 -36 64 6 -28 50 6 -28 48 6
3 16 -36 64 6 -28 58 6 -28 50 6
4 16 -12 58 6 -20 58 6 -36 64 6 0 64 6
3 16 -20 58 6 -28 58 6 -36 64 6
3 16 0 64 6 -8 58 6 -12 58 6
3 16 0 64 6 0 58 6 -8 58 6
4 16 -12.72318 45.00212 10 -7.2768 45.00213 10 -8.3149 46.5558 10 -11.6849 46.5557 10
4 16 -11.6849 46.5557 10 -8.3149 46.5558 10 -9 50 10 -11 50 10
4 16 -28.3151 46.5557 10 -36 50 10 -35 45 10 -27.27682 45.00212 10
3 16 -9 50 10 -8 50 10 -8 58 10
4 16 -8 58 10 -12 58 10 -11 50 10 -9 50 10
3 16 -12 58 10 -12 50 10 -11 50 10
3 16 -8 58 10 0 58 10 0 64 10
3 16 -12 58 10 -8 58 10 0 64 10
4 16 -40 64 10 -20 58 10 -12 58 10 0 64 10
3 16 -40 64 10 -28 58 10 -20 58 10
4 16 0 64 10 0 64 6 -36 64 6 -40 64 10
3 16 -18.2099 1 10 -20 1 10 -20 0 10
4 16 -18.2099 1 10 -20 0 10 0 0 10 -1.7901 1 10
3 16 0 0 10 0 1 10 -1.7901 1 10
1 16 -44 42 10 1 0 0 0 0 -1 0 -1 0 3-4ring8.dat
4 16 -47.4443 33.6849 10 -29 10 10 -28.315 13.444 10 -44 33 10

1 16 -36.1575 23.222 6 7.8425 0 0 -9.778 -1 0 0 0 -4 rect.dat

4 16 -16.55 18.32 10 -35 42 10 -35.685 38.556 10 -20 19 10
1 16 -32 26 2 4.1575 0 -7.8425 2.778 0 9.778 0 -1 0 rect1.dat

1 16 -27.8425 28.778 6 7.8425 0 0 -9.778 1 0 0 0 4 rect3.dat

2 24 -13.63604 16.36396 10 -12.72 15 10
4 16 -36 50 10 -40 51 10 -44 51 10 -44 50 10
3 16 -40 51 10 -36 50 10 -40 64 10
4 16 -28 58 10 -40 64 10 -29 50 10 -28 50 10
4 16 -28.3151 46.5557 10 -29 50 10 -40 64 10 -36 50 10
4 16 -35 45 10 -36 50 10 -36 42 10 -35 42 10
2 24 -6.36 16.36 10 -7.28 15 10
2 24 -23.696 56.968 1.531 -23.062 57.391 2.48
2 24 -24 56.764 0 -23.696 56.968 1.531
2 24 -21.531 57.696 3.696 -20 58 4
2 24 -22.828 57.438 2.828 -21.531 57.696 3.696
2 24 -23.062 57.391 2.48 -22.828 57.438 2.828
2 24 -16.938 57.391 2.48 -17.172 57.438 2.828
2 24 -18.469 57.696 3.696 -17.172 57.438 2.828
2 24 -20 58 4 -18.469 57.696 3.696
2 24 -16 56.764 0 -16.304 56.968 1.531
2 24 -16.304 56.968 1.531 -16.938 57.391 2.48
2 24 -3.696 56.968 1.531 -3.062 57.391 2.48
2 24 -4 56.764 0 -3.696 56.968 1.531
2 24 -1.531 57.696 3.696 0 58 4
2 24 -2.828 57.438 2.828 -1.531 57.696 3.696
2 24 -3.062 57.391 2.48 -2.828 57.438 2.828
4 16 -28.3151 6.173 10 -28 8.4088 10 -28 10 10 -29 10 10
3 16 -28 8.4088 10 -28.3151 6.173 10 -27.3912 6.9384 10
4 16 -26.3639 2.929 10 -26.7824 5.468 10 -27.3912 6.9384 10 -28.3151 6.173 10
3 16 -26.7824 5.468 10 -26.3639 2.929 10 -25.6568 4.3432 10
4 16 -23.4443 .761 10 -24.532 3.2176 10 -25.6568 4.3432 10 -26.3639 2.929 10
3 16 -24.532 3.2176 10 -23.4443 .761 10 -23.0616 2.6088 10
4 16 -23.0616 2.6088 10 -23.4443 .761 10 -20 0 10 -21.5912 2 10
3 16 -21.5912 2 10 -20 0 10 -20 2 10

Status:

Needs More Votes (N)

This part has the following automated holds from the Parts Tracker

No path of certified files to a certified or official parent in the parts folder

Current Votes:

None

Official parents and subparts

Part Events:

Vincent Messenet [Cheenzo]

initially submitted the part.

2023-03-06 08:06:59

Magnus Forsberg [MagFors]

posted a vote of Hold.

2023-03-06 22:22:48

This is a difficult one. It's a strange mix of brick and beam.
I think the npeghol6d could be used.
1 13 -20 10 10 0 0 1 -1 0 0 0 -1 0 npeghol6d.dat
or maybe a inlined, resized prim?
1 13 -21 10 10 0 0 1.1 -1.1 0 0 0 -1 0 npeghol6d.dat

This edge need to be made of edge primitives:
2 24 -13.64 3.64 10 -11.68 6.55 10
2 24 -11.68 6.55 10 -11 10 10
2 24 -11 10 10 -11.59 13 10
2 24 -20.44 18.912 10 -23.45 18.32 10
2 24 -23.45 18.32 10 -26.36 16.36 10
2 24 -26.36 16.36 10 -28.32 13.45 10
2 24 -43.569 33.086 10 -40.55 33.68 10
2 24 -40.55 33.68 10 -37.64 35.64 10
2 24 -37.64 35.64 10 -35.68 38.55 10
2 24 -17.642 18.531 10 -16.55 18.32 10
2 24 -16.55 18.32 10 -13.64 16.36 10
2 24 -13.64 16.36 10 -12.72 15 10

There's still a gap here:
2 5 -20 1 10 -16.5557 1.6849 10
2 5 -16.5557 1.6849 10 -13.6361 3.6361 10

Vincent Messenet [Cheenzo]

submitted a new version of the part.

2023-03-08 08:16:39

I finally inlined npeghol12 excluding npeghol6a

Vincent Messenet [Cheenzo]

submitted a new version of the part.

2023-03-08 08:17:42

Vincent Messenet [Cheenzo]

submitted a new version of the part.

2023-03-08 09:29:35

Removed some duplicated surfaces but I know there is one remaining due to
1 16 -20 10 10 0 0 1 -1 0 0 0 -1 0 4-4ring8.dat
1 16 -20 10 10 -.9 0 0 0 0 -1 0 -1 0 1-4ring9.dat

If I use
1 16 -20 10 10 0 0 1 -1 0 0 0 -1 0 3-4ring8.dat
1 16 -20 10 10 -.9 0 0 0 0 -1 0 -1 0 1-4ring9.dat
Is there any prim I can use to complete missing surface? Or any other solution?

Vincent Messenet [Cheenzo]

submitted a new version of the part.

2023-03-08 09:42:45

Vincent Messenet [Cheenzo]

submitted a new version of the part.

2023-03-08 09:48:57

Added missing edges

Vincent Messenet [Cheenzo]

submitted a new version of the part.

2023-03-09 06:44:28

2 other missing edges added

Magnus Forsberg [MagFors]

made the following comment.

2023-03-17 15:51:38

Maybe something like this instead of overlapping ring prims?
1 16 -20 10 10 0 0 1 -1 0 0 0 -1 0 3-4ring8.dat
0 1 16 -20 10 10 -.9 0 0 0 0 -1 0 -1 0 1-4ring9.dat
1 12 -20 10 10 -9 0 0 0 0 -10 0 -1 0 1-4ering.dat
1 11 -20 10 10 -8 0 0 0 0 -8 0 -1 0 1-4tang.dat
and some triangles.

And I really like the new shape. Looks much better.

Vincent Messenet [Cheenzo]

submitted a new version of the part.

2023-03-17 19:52:28

Ah yes of course, why didn't I think of that?
Thanks for your help and comment!

Magnus Forsberg [MagFors]

made the following comment.

2023-03-18 09:27:56

This could be made using a primitive:
2 24 -16.55 18.32 10 -13.64 16.36 10

Lots of 3D-scaled flat primitives.

Vincent Messenet [Cheenzo]

submitted a new version of the part.

2023-03-19 17:48:19

Edge replaced by a prim, removed warnings.

Magnus Forsberg [MagFors]

made the following comment.

2023-03-19 21:40:40

Could you please close these to?
2 5 -7.28 45 10 -8.316 46.553 10
2 5 -12.72 45 10 -11.6849 46.5557 10
2 5 -27.28 45 10 -28.316 46.553 10

Vincent Messenet [Cheenzo]

made the following comment.

2023-03-19 22:14:37

Sorry, not clear to me. Do you mean to use prims:
1 16 -20 50 10 8.31492 0 -3.44415 -3.44415 0 -8.31492 0 -1 0 3-8edge.dat
1 16 0 50 10 -6.36396 0 -6.36397 -6.36397 0 6.36396 0 -1 0 1-16edge.dat
And lower linked quads + adapt other subfile?

Magnus Forsberg [MagFors]

made the following comment.

2023-03-19 22:22:20

No, there are gaps at both ends of those lines. All 6 vertices need editing.

Vincent Messenet [Cheenzo]

submitted a new version of the part.

2023-03-20 16:04:06

Thanks Magnus, that's done

Vincent Messenet [Cheenzo]

submitted a new version of the part.

2023-03-20 16:07:32

Magnus Forsberg [MagFors]

made the following comment.

2023-03-20 16:55:35

No, it looks like you only fixed 3 of the 6 vertices.

Vincent Messenet [Cheenzo]

made the following comment.

2023-03-20 17:39:36

Weird... I changed the 6 like this:
2 24 -6.36396 43.63604 10 -7.2768 45.00213 10
2 24 -13.63604 43.63604 10 -12.72318 45.00212 10
2 24 -26.3639 43.6361 10 -27.27682 45.00212 10

Vincent Messenet [Cheenzo]

submitted a new version of the part.

2023-03-20 17:43:40

OK... I was not looking at the 6 you mentioned... Doh!

Magnus Forsberg [MagFors]

posted a vote of Certify.

2023-03-20 19:34:23

Gerald Lasser [GeraldLasser]

posted a vote of Hold.

2024-11-20 23:16:09

remove
1 16 0 10 10 -9 0 0 0 0 -9 0 -1 0 1-8edge.dat
1 16 0 10 2 -9 0 0 0 0 -9 0 -1 0 1-8edge.dat
1 16 -20 10 10 9 0 0 0 0 -9 0 -1 0 1-8edge.dat
1 16 -20 10 2 9 0 0 0 0 -9 0 -1 0 1-8edge.dat
1 16 -20 10 10 0 0 -9 9 0 0 0 -1 0 3-16edge.dat
1 16 -20 10 2 0 0 -9 9 0 0 0 -1 0 3-16edge.dat
1 16 -44 42 2 0 0 9 -9 0 0 0 -1 0 3-16edge.dat
1 16 -44 42 10 0 0 9 -9 0 0 0 -1 0 3-16edge.dat

add
1 13 0 10 10 -9 0 0 0 0 -9 0 -8 0 1-8cylo.dat
1 13 -20 10 10 9 0 0 0 0 -9 0 -8 0 1-8cylo.dat
1 13 -20 10 10 0 0 -9 9 0 0 0 -8 0 3-16cylo.dat
1 13 -44 42 10 0 0 9 -9 0 0 0 -8 0 3-16cylo.dat

add quads to cover the gaps

Vincent Messenet [Cheenzo]

submitted a new version of the part.

2025-07-18 07:05:01

Fixed bleeding issues

Rene Rechthaler [Blechtaler]

made the following comment.

2025-09-23 17:08:09

try using the ring prims only between two round prims...
as of now, you will have mismatches/overlap on prim subst.

Creative Commons Attribution License information
