Unofficial File parts/6399093a.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

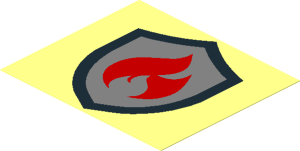

0 Sticker 3.2 x 3.7 with Fire Logo Badge
0 Name: 6399093a.dat
0 Author: Bjoern Sigve Storesund [Storesund]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Sticker
0 !KEYWORDS Bricklink 60320stk01, Brickowl 95087, Rebrickable 10100070
0 !KEYWORDS Set 60320
0 !HISTORY 2025-06-08 [Holly-Wood] Used updated primShow file code:
0 BFC NOCLIP
1 0 0 -.25 .96 1 0 0 0 1 0 0 0 1 logo-fire-badge-shield-border.dat
1 80 0 -.25 .96 1 0 0 0 1 0 0 0 1 logo-fire-badge-shield-background.dat
1 4 0 -.25 .96 1 0 0 0 1 0 0 0 1 logo-fire-badge-big-flame.dat
1 4 0 -.25 .96 1 0 0 0 1 0 0 0 1 logo-fire-badge-small-flame.dat
0 BFC CLIP
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\stickerback032x037.dat
1 16 35.5 -.25 30.5 1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
1 16 35.5 -.25 -30.5 1.5 0 0 0 1 0 0 0 -1.5 1-4chrd.dat
1 16 -35.5 -.25 -30.5 -1.5 0 0 0 1 0 0 0 -1.5 1-4chrd.dat
1 16 -35.5 -.25 30.5 -1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
3 16 -35.5 -.25 32 0 -.25 30.585 35.5 -.25 32
3 16 0 -.25 30.585 -35.5 -.25 32 -2 -.25 29.08
3 16 -2 -.25 29.08 -35.5 -.25 32 -5.04 -.25 27
3 16 -5.04 -.25 27 -35.5 -.25 32 -8.68 -.25 24.8
3 16 -8.68 -.25 24.8 -35.5 -.25 32 -12.2 -.25 23
3 16 -12.2 -.25 23 -35.5 -.25 32 -16.12 -.25 21.4
3 16 -16.12 -.25 21.4 -35.5 -.25 32 -19.76 -.25 20.08
3 16 -19.76 -.25 20.08 -35.5 -.25 32 -24.2 -.25 18.8
3 16 35.5 -.25 32 0 -.25 30.585 2 -.25 29.08
3 16 35.5 -.25 32 2 -.25 29.08 5.04 -.25 27
3 16 35.5 -.25 32 5.04 -.25 27 8.68 -.25 24.8
3 16 35.5 -.25 32 8.68 -.25 24.8 12.2 -.25 23
3 16 35.5 -.25 32 12.2 -.25 23 16.12 -.25 21.4
3 16 35.5 -.25 32 16.12 -.25 21.4 19.76 -.25 20.08
3 16 35.5 -.25 32 19.76 -.25 20.08 24.2 -.25 18.8
3 16 -24.2 -.25 -.88 -35.5 -.25 -32 -23.4 -.25 -5.2
3 16 -23.4 -.25 -5.2 -35.5 -.25 -32 -21.4 -.25 -11.08
3 16 -21.4 -.25 -11.08 -35.5 -.25 -32 -19.2 -.25 -15.28
3 16 -19.2 -.25 -15.28 -35.5 -.25 -32 -16.36 -.25 -19.2
3 16 -16.36 -.25 -19.2 -35.5 -.25 -32 -13.72 -.25 -22.08
3 16 -13.72 -.25 -22.08 -35.5 -.25 -32 -10.6 -.25 -24.6
3 16 -10.6 -.25 -24.6 -35.5 -.25 -32 -7.6 -.25 -26.4
3 16 -7.6 -.25 -26.4 -35.5 -.25 -32 -3.2 -.25 -28.8
3 16 -3.2 -.25 -28.8 -35.5 -.25 -32 0 -.25 -30.6
3 16 0 -.25 -30.6 -35.5 -.25 -32 35.5 -.25 -32
3 16 0 -.25 -30.6 35.5 -.25 -32 3.2 -.25 -28.8
3 16 3.2 -.25 -28.8 35.5 -.25 -32 7.6 -.25 -26.4
3 16 7.6 -.25 -26.4 35.5 -.25 -32 10.6 -.25 -24.6
3 16 10.6 -.25 -24.6 35.5 -.25 -32 13.72 -.25 -22.08
3 16 13.72 -.25 -22.08 35.5 -.25 -32 16.36 -.25 -19.2
3 16 16.36 -.25 -19.2 35.5 -.25 -32 19.2 -.25 -15.28
3 16 19.2 -.25 -15.28 35.5 -.25 -32 21.4 -.25 -11.08
3 16 21.4 -.25 -11.08 35.5 -.25 -32 23.4 -.25 -5.2
3 16 23.4 -.25 -5.2 35.5 -.25 -32 24.2 -.25 -.88
3 16 24.2 -.25 -.88 35.5 -.25 -32 24.2 -.25 18.8
3 16 24.2 -.25 18.8 35.5 -.25 -32 35.5 -.25 32
3 16 -35.5 -.25 -32 -24.2 -.25 -.88 -24.2 -.25 18.8
3 16 -35.5 -.25 -32 -24.2 -.25 18.8 -35.5 -.25 32
4 16 -35.5 -.25 -32 -35.5 -.25 32 -37 -.25 30.5 -37 -.25 -30.5
4 16 37 -.25 30.5 35.5 -.25 32 35.5 -.25 -32 37 -.25 -30.5Status
Needs 2 More Votes (N)
Current Votes:
No recorded votesThis part has the following automated holds from the Parts Tracker
Part Dependencies
Official parents and subparts
Part Events
Bjoern Sigve Storesund [Storesund]
initially submitted the part.
2023-03-15 14:06:24
Willy Tschager [Holly-Wood]
posted a vote of Hold
2023-03-15 18:38:51
Magnus Forsberg [MagFors]
posted a vote of Hold
2023-03-15 18:41:35
"Pattern" should not be used in stickers.
"Fire" can not be used both as keyword and in the description.
The flat subfiles are scaled in 3 dimensions.
A Category statement is not needed since the first word, "Sticker" is in the category list.
https://www.ldraw.org/article/340.html#categorylist
"Fire" can not be used both as keyword and in the description.
The flat subfiles are scaled in 3 dimensions.
A Category statement is not needed since the first word, "Sticker" is in the category list.
https://www.ldraw.org/article/340.html#categorylist
Bjoern Sigve Storesund [Storesund]
submitted a new version of the part (all votes reset).
2023-03-17 14:10:13
Willy Tschager [Holly-Wood]
posted a vote of Hold
2023-03-17 15:28:58
* NOCLIP still missing
* Rounded corners still missing
* Description misses leading space
https://www.ldraw.org/article/398.html#desc
* Rounded corners still missing
* Description misses leading space
https://www.ldraw.org/article/398.html#desc
Bjoern Sigve Storesund [Storesund]
submitted a new version of the part (all votes reset).
2023-03-20 11:21:52
I'll try again.
Have now added primitive in present for subparts.
I haven't added rounded corners. I think the sticker has straight corners.
Have now added primitive in present for subparts.
I haven't added rounded corners. I think the sticker has straight corners.
Bjoern Sigve Storesund [Storesund]
submitted a new version of the part (all votes reset).
2023-03-20 11:46:33
Magnus Forsberg [MagFors]
posted a vote of Hold
2023-03-20 21:31:37
The shape of the left/right corners on the badge is not correct.
The outer border should have a more horizontal ending.
https://img.bricklink.com/ItemImage/PN/5/60581pb143.png
The outer border should have a more horizontal ending.
https://img.bricklink.com/ItemImage/PN/5/60581pb143.png
Bjoern Sigve Storesund [Storesund]
made the following comment.
2023-03-21 14:10:49
I see it. Seems like there are two versions of this shield.
https://img.bricklink.com/ItemImage/PN/0/60320stk01.png
https://img.bricklink.com/ItemImage/PN/0/60320stk01.png
Magnus Forsberg [MagFors]
posted a vote of Hold
2023-03-21 16:03:18
That's the problem with these logo primitives. They never seem to fit the need, in more that a few parts.
And that's why they should be treated as templates, and are free to use inlined, whenever it's possible.
They need to be detailed enough so that they are possible to enlarge. And the downside is that they might become ridiculously detailed when used shrunken on smaller parts. (Yes, I'm thinking of the Ferrari horse on the 1x1 tiles. They are stupidly detailed).
All these logos on parts with the new Fire badge logo, are different. One, or two, borders around the badge, of different thickness. With or without sharp, or sloping corners.
I don't want to see anymore fire badge primitives. These 4 are made and useful. Can be used together as one badge, rescaled, but see them as templates. They might need reshaping.
And that's why they should be treated as templates, and are free to use inlined, whenever it's possible.
They need to be detailed enough so that they are possible to enlarge. And the downside is that they might become ridiculously detailed when used shrunken on smaller parts. (Yes, I'm thinking of the Ferrari horse on the 1x1 tiles. They are stupidly detailed).
All these logos on parts with the new Fire badge logo, are different. One, or two, borders around the badge, of different thickness. With or without sharp, or sloping corners.
I don't want to see anymore fire badge primitives. These 4 are made and useful. Can be used together as one badge, rescaled, but see them as templates. They might need reshaping.
Orion Pobursky [OrionP]
made the following comment.
2023-03-21 17:12:52
Magnus, can you start a forums thread about your comment? I've been having some reservations about logos as primitives and want to hash things out before we get too deep into certifying and releasing them.
Willy Tschager [Holly-Wood]
posted a vote of Certify
2023-03-21 19:37:02
Bertrand Lequy [Berth]
made the following comment.
2024-05-29 17:54:10
I want tu use this logo for the part 6239pb108 (BL mapping) would it be possible to create a prim logo or should I use the raw file and modify it ?
Willy Tschager [Holly-Wood]
made the following comment.
2024-05-29 18:40:22
Magnus Forsberg [MagFors]
cancelled their vote.
2024-05-29 20:32:47
Magnus Forsberg [MagFors]
made the following comment.
2024-05-29 20:37:16
Forum thread here:
https://forums.ldraw.org/thread-27204-post-49809.html#pid49809
https://forums.ldraw.org/thread-27204-post-49809.html#pid49809
Bertrand Lequy [Berth]
made the following comment.
2024-05-30 04:57:50
I made search on the pt but didn't find it, thank you.
Sorry.
Sorry.
Takeshi Takahashi [RainbowDolphin]
posted a vote of Certify
2024-05-30 13:07:08
Willy Tschager [Holly-Wood]
submitted a new version of the part (all votes reset).
2025-06-08 12:49:11
* Used updated prim
Rene Rechthaler [Blechtaler]
made the following comment.
2025-06-08 15:12:02
should the logo be centered?
Willy Tschager [Holly-Wood]
submitted a new version of the part (all votes reset).
2025-06-08 15:35:33
Rene Rechthaler [Blechtaler]
made the following comment.
2026-08-10 17:46:18
modern enough to use stickerback with rounded corners?
Orion Pobursky [OrionP]
posted a vote of Hold
2026-08-10 18:42:33
Yes
Willy Tschager [Holly-Wood]
submitted a new version of the part (all votes reset).
2026-08-11 08:29:52
* Added stickerback and round corner
https://www.ldraw.org/article/512.html#sticker_geo
* Subs scaled in y direction:
line 14 : The flat subfile is scaled in Y direction.
line 15 : The flat subfile is scaled in Y direction.
line 16 : The flat subfile is scaled in Y direction.
* The corners look rounded on the sticker sheet:
https://img.bricklink.com/ItemImage/PN/0/60320stk01.png
and should be modeled accordingly. See for example:
https://library.ldraw.org/tracker/25714
* 0 !KEYWORDS Bricklink 60320stk01, Rebrickable 10100070, Brickowl 95087
should be added
