File Detail parts/2369.dat

Official File parts/2369.dat

Part Attributes:

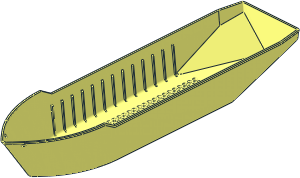

~Boat Hull Floating 51 x 12 with V-shaped Stern

File Header:

0 ~Boat Hull Floating 51 x 12 with V-shaped Stern
0 Name: 2369.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2024-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS Set 4030, Set 4031

0 !HISTORY 2024-05-28 [OrionP] Official Update 2024-04

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\2369s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\2369s01.dat

1 16 0 0 100 0 0 1 0 1 0 -1 0 0 stug-6x6.dat
1 16 0 0 220 0 0 1 0 1 0 -1 0 0 stug-6x6.dat
1 16 0 0 -140 0 0 1 0 1 0 -1 0 0 stug-6x6.dat
1 16 0 0 -20 0 0 1 0 1 0 -1 0 0 stug-6x6.dat
1 16 0 0 -210 0 0 1 0 1 0 -1 0 0 stug-6x1.dat
1 16 0 0 -230 0 0 1 0 1 0 -1 0 0 stug-6x1.dat

1 16 0 -7 498.1923 10 0 0 0 -1 0 0 0 -26.19235 rect2p.dat
1 16 0 -1 472 0 0 -10 6 0 0 0 -1 0 rect1.dat
1 16 0 0 472 5 0 0 0 0 -5 0 40 0 4-4cyli.dat
1 16 0 0 472 5 0 0 0 0 -5 0 1 0 4-4edge.dat
1 16 0 0 512 5 0 0 0 0 -5 0 4 0 4-8sphe.dat
1 16 0 -5 472 0 0 2 2 0 0 0 42 0 box3u5p.dat
4 16 104.8358 -122 525.0308 10 -7 524.3847 -10 -7 524.3847 -104.8358 -122 525.0308
1 16 0 -122 525.5308 -104.8358 0 0 0 -1 0 0 0 0.5 rect2p.dat
4 16 105.3358 -128 526.0308 104.8358 -122 526.0308 -104.8358 -122 526.0308 -105.3358 -128 526.0308
2 24 -105.3358 -128 526.0308 105.3358 -128 526.0308
1 16 0 0 493 14 0 0 0 -10 0 0 0 -27 box4-1.dat
3 16 14 0 466 -14 0 466 0 0 -427.1101
4 16 -14 -10 520 14 -10 520 104.6351 -128 520 -104.6351 -128 520
4 16 -105.3358 -128 526.0308 -104.6351 -128 520 104.6351 -128 520 105.3358 -128 526.0308
2 24 104.6351 -128 520 -104.6351 -128 520
3 16 0 5 -426.5101 -10 5 472 10 5 472
5 24 0 0.6065 -437.0849 0 3.8585 -432.2334 -2.5591 3.8585 -432.1017 2.5591 3.8585 -432.1017
5 24 0 -4.2595 -440.3272 0 0.6065 -437.0849 -4.0027 0.6065 -436.7486 4.0027 0.6065 -436.7486
5 24 0 -152 -543.902 0 -146 -539.702 3.7699 -146 -539.3753 -3.7699 -146 -539.3753
5 24 0 -6.173 -435.7215 0 -152 -537.9036 4.1702 -152 -537.5838 -4.1702 -152 -537.5838
5 24 0 0 -427.1101 0 -0.761 -430.3257 -1.9914 -0.761 -430.2743 1.9914 -0.761 -430.2743
5 24 0 -0.761 -430.3257 0 -2.929 -433.56 -1.9914 -0.761 -430.2743 1.9914 -0.761 -430.2743
5 24 0 -2.929 -433.56 0 -6.173 -435.7215 2.9538 -2.929 -433.3723 -2.9538 -2.929 -433.3723
5 24 0 3.8585 -432.2334 0 5 -426.5101 -0.742 5 -426.6042 0.742 5 -426.6042
5 24 0 -146 -538.702 0 -4.2595 -440.3272 -4.9674 -4.2595 -439.8542 4.9674 -4.2595 -439.8542

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Philippe Hurbain [Philo]

initially submitted the part.

2023-03-20 19:48:51

Looking for better descriptions allowing to distinguish from 54779...

Gerald Lasser [GeraldLasser]

made the following comment.

2023-03-20 22:33:37

I think the stern and bow description would set them apart

54779 "spoon bow" "vertical Stern"
2369 "raked bow" and "transom stern"

I am by no means a nautical expert ;-) I am only allowed to nagivate vessles up to 10m

Takeshi Takahashi [RainbowDolphin]

posted a vote of Hold.

2023-03-20 23:39:58

Thank you for creating!!
But, the studs are missing (6W x 26L).
http://www.peeron.com/scans/4030-1/3/

Philippe Hurbain [Philo]

submitted a new version of the part.

2023-03-21 07:42:25

Ah. Forgot to uncomment them...

Philippe Hurbain [Philo]

edited the part header.

2023-03-21 07:43:47

The keywords were gone too...
