File Detail parts/u9600.dat

Official File parts/u9600.dat

Part Attributes:

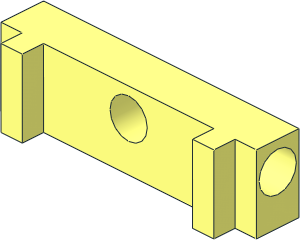

~Electric 4.5V 3 C-Cell Battery Box Polarity Switch 2 x 4 Metal Half

File Header:

0 ~Electric 4.5V  3 C-Cell Battery Box Polarity Switch  2 x  4 Metal Half
0 Name: u9600.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Part UPDATE 2024-10
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-12-01 [OrionP] Official Update 2024-10

Show contents

0 BFC INVERTNEXT
1 16 0 0 4 0 0 3.5 3.5 0 0 0 -8 0 4-4cylo.dat
0 BFC INVERTNEXT
1 16 16 0 0 0 8 0 3.5 0 0 0 0 3.5 4-4cylc.dat
0 BFC INVERTNEXT
1 16 -16 0 0 0 -8 0 3.5 0 0 0 0 3.5 4-4cylc.dat
1 16 0 -5 0 24 0 0 0 1 0 0 0 4 rect3.dat
1 16 0 8.66055 0 24 0 0 0 -1 0 0 0 4 rect3.dat
1 16 18 1.830275 -4 2 0 0 0 0 6.830275 0 -4 0 box5-2p.dat
1 16 -18 1.830275 -4 2 0 0 0 0 6.830275 0 -4 0 box5-2p.dat
1 16 22 1.830275 -4 0 0 2 6.830275 0 0 0 1 0 rect3.dat
1 16 -22 1.830275 -4 0 0 -2 6.830275 0 0 0 1 0 rect3.dat
2 24 -16 8.66055 -4 16 8.66055 -4
2 24 -16 -5 -4 16 -5 -4
1 16 0 0 4 0 0 3.5 3.5 0 0 0 -1 0 4-4ndis.dat
1 16 0 0 -4 0 0 3.5 3.5 0 0 0 1 0 4-4ndis.dat
1 16 24 0 0 0 -1 0 3.5 0 0 0 0 3.5 4-4ndis.dat
1 16 -24 0 0 0 1 0 3.5 0 0 0 0 3.5 4-4ndis.dat
2 24 24 -5 4 24 8.66055 4
2 24 -24 -5 4 -24 8.66055 4
4 16 -16 8.66055 -4 16 8.66055 -4 3.5 3.5 -4 -3.5 3.5 -4
4 16 16 8.66055 -4 16 -5 -4 3.5 -3.5 -4 3.5 3.5 -4
4 16 16 -5 -4 -16 -5 -4 -3.5 -3.5 -4 3.5 -3.5 -4
4 16 -16 -5 -4 -16 8.66055 -4 -3.5 3.5 -4 -3.5 -3.5 -4
4 16 3.5 3.5 4 24 8.66055 4 -24 8.66055 4 -3.5 3.5 4
4 16 3.5 -3.5 4 24 -5 4 24 8.66055 4 3.5 3.5 4
4 16 -3.5 -3.5 4 -24 -5 4 24 -5 4 3.5 -3.5 4
4 16 -24 8.66055 4 -24 -5 4 -3.5 -3.5 4 -3.5 3.5 4
4 16 24 8.66055 -4 24 8.66055 4 24 3.5 3.5 24 3.5 -3.5
4 16 24 8.66055 4 24 -5 4 24 -3.5 3.5 24 3.5 3.5
4 16 24 -5 4 24 -5 -4 24 -3.5 -3.5 24 -3.5 3.5
4 16 24 -5 -4 24 8.66055 -4 24 3.5 -3.5 24 -3.5 -3.5
4 16 -24 3.5 3.5 -24 8.66055 4 -24 8.66055 -4 -24 3.5 -3.5
4 16 -24 -3.5 3.5 -24 -5 4 -24 8.66055 4 -24 3.5 3.5
4 16 -24 -3.5 -3.5 -24 -5 -4 -24 -5 4 -24 -3.5 3.5
4 16 -24 3.5 -3.5 -24 8.66055 -4 -24 -5 -4 -24 -3.5 -3.5

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Orion Pobursky [OrionP]

initially submitted the part.

2023-03-22 01:24:15

Resubmit

Orion Pobursky [OrionP]

renamed the part.

2023-03-22 01:25:20

"u9605.dat" to "u9600.dat"

Magnus Forsberg [MagFors]

made the following comment.

2023-03-25 13:02:54

Maybe one of the metal pins in 4353 should be placed here?
I think they must be connected.

Rene Rechthaler [Blechtaler]

made the following comment.

2023-03-25 20:41:39

no, they cant be connected because that is the switch mechanism which swaps the left/right input with the upper/lower output (the three sockets for plugs are directly connected with u9600).

But because I didnt want to open my glued switch some internals are guessed.

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.

2024-04-13 12:38:22

Willy Tschager [Holly-Wood]

edited the part header.

2024-05-27 06:02:01

Header Edits

description:
~Electric 4.5V 3 C-Cell Battery Box Polarity Switch 2 x 4 Metal Half
to
~Electric 4.5V 3 C-Cell Battery Box Polarity Switch 2 x 4 Metal Half

Comment:
Added blanks to description

Willy Tschager [Holly-Wood]

posted a vote of Certify.

2024-05-27 06:02:18

* T-junk

Orion Pobursky [OrionP]

posted a vote of Admin Review.

2024-11-27 20:20:49

Orion Pobursky [OrionP]

2024-12-01 00:36:23

Release 2024-10
