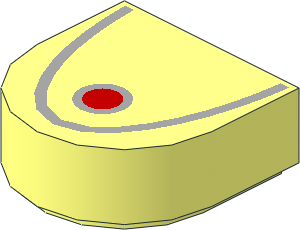

Tile 1 x 1 with Rounded End with Red Disc and Light Grey Arc Pattern
File Header:
0 Tile 1 x 1 with Rounded End with Red Disc and Light Grey Arc Pattern 0 Name: 24246p07.dat 0 Author: Massimo Maso [Sirio] 0 !LDRAW_ORG Part UPDATE 2025-03 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !KEYWORDS Bricklink 24246pb046, Pagani, Rebrickable 24246pr0042, Set 76915 0 !KEYWORDS Speed Champions, Utopia 0 !HISTORY 2023-06-24 [OrionP] Official Update 2023-03 0 !HISTORY 2025-02-27 [Lego-Manfred] References added 0 !HISTORY 2025-02-27 [OrionP] Official Update 2025-02 0 !HISTORY 2025-03-25 [MagFors] Update description 0 !HISTORY 2025-03-30 [OrionP] Official Update 2025-03
Show contents
0 // Subparts 1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\24246s02.dat 0 // Primitives 1 4 0 0 -2.5 1.7 0 0 0 1 0 0 0 1.7 4-4disc.dat 1 71 0 0 -2.5 1.202082 0 1.202082 0 1 0 -1.202082 0 1.202082 4-4ndis.dat 1 71 0 0 -2.5 2.5 0 0 0 1 0 0 0 2.5 1-4chrd.dat 1 71 0 0 -2.5 -2.5 0 0 0 1 0 0 0 2.5 1-4chrd.dat 1 71 0 0 -2.5 -2.5 0 0 0 1 0 0 0 -2.5 1-4chrd.dat 1 71 0 0 -2.5 2.5 0 0 0 1 0 0 0 -2.5 1-4chrd.dat 1 16 0 0 -2.5 2.5 0 0 0 1 0 0 0 2.5 4-4ndis.dat 1 16 0 0 0 10 0 0 0 1 0 0 0 -10 2-4ering.dat 0 // Faces 0 // Light grey ring 3 71 1.2021 0 -1.2979 2.4042 0 -2.5 2.5 0 -2.5 3 71 1.2021 0 -1.2979 2.5 0 -2.5 0 0 0 3 71 1.2021 0 -1.2979 0 0 0 0 0 -.0958 3 71 -1.2021 0 -1.2979 0 0 -.0958 0 0 0 3 71 -1.2021 0 -1.2979 0 0 0 -2.5 0 -2.5 3 71 -1.2021 0 -1.2979 -2.5 0 -2.5 -2.4042 0 -2.5 3 71 -1.2021 0 -3.7021 -2.4042 0 -2.5 -2.5 0 -2.5 3 71 -1.2021 0 -3.7021 -2.5 0 -2.5 0 0 -5 3 71 -1.2021 0 -3.7021 0 0 -5 0 0 -4.9042 3 71 1.2021 0 -3.7021 0 0 -4.9042 0 0 -5 3 71 1.2021 0 -3.7021 0 0 -5 2.5 0 -2.5 3 71 1.2021 0 -3.7021 2.5 0 -2.5 2.4042 0 -2.5 0 // Light grey arc 4 71 -8.1818 0 7.0095 -8.414 0 9.5 -9.4155 0 9.5 -9.1652 0 6.8138 4 71 -8.1818 0 7.0095 -9.1652 0 6.8138 -8.7386 0 4.1499 -7.7952 0 4.5383 4 71 -7.2374 0 2.1 -7.7952 0 4.5383 -8.7386 0 4.1499 -8.1163 0 1.5249 4 71 -7.2374 0 2.1 -8.1163 0 1.5249 -7.2651 0 -1.0351 -6.4809 0 -.2842 4 71 -5.4806 0 -2.5767 -6.4809 0 -.2842 -7.2651 0 -1.0351 -6.1309 0 -3.483 4 71 -5.4806 0 -2.5767 -6.1309 0 -3.483 -4.6193 0 -5.7175 -4.1558 0 -4.6984 4 71 -2.3697 0 -6.4495 -4.1558 0 -4.6984 -4.6193 0 -5.7175 -2.5901 0 -7.4953 4 71 -2.3697 0 -6.4495 -2.5901 0 -7.4953 0 0 -8.25 0 0 -7.25 4 71 8.1818 0 7.0095 9.1652 0 6.8138 9.4155 0 9.5 8.414 0 9.5 4 71 8.1818 0 7.0095 7.7952 0 4.5383 8.7386 0 4.1499 9.1652 0 6.8138 4 71 7.2374 0 2.1 8.1163 0 1.5249 8.7386 0 4.1499 7.7952 0 4.5383 4 71 7.2374 0 2.1 6.4809 0 -.2842 7.2651 0 -1.0351 8.1163 0 1.5249 4 71 5.4806 0 -2.5767 6.1309 0 -3.483 7.2651 0 -1.0351 6.4809 0 -.2842 4 71 5.4806 0 -2.5767 4.1558 0 -4.6984 4.6193 0 -5.7175 6.1309 0 -3.483 4 71 2.3697 0 -6.4495 2.5901 0 -7.4953 4.6193 0 -5.7175 4.1558 0 -4.6984 4 71 2.3697 0 -6.4495 0 0 -7.25 0 0 -8.25 2.5901 0 -7.4953 0 // Neutral faces 4 16 -10 0 10 -10 0 0 -9.1652 0 6.8138 -9.4155 0 9.5 3 16 -10 0 10 -9.4155 0 9.5 -8.414 0 9.5 4 16 -10 0 10 -8.414 0 9.5 8.414 0 9.5 10 0 10 3 16 10 0 10 8.414 0 9.5 9.4155 0 9.5 4 16 10 0 10 9.4155 0 9.5 9.1652 0 6.8138 10 0 0 4 16 -8.1818 0 7.0095 8.1818 0 7.0095 8.414 0 9.5 -8.414 0 9.5 3 16 -8.1818 0 7.0095 0 0 0 8.1818 0 7.0095 4 16 -2.5 0 0 0 0 0 -8.1818 0 7.0095 -7.7952 0 4.5383 4 16 -2.5 0 0 -7.7952 0 4.5383 -7.2374 0 2.1 -6.4809 0 -.2842 4 16 -2.5 0 0 -6.4809 0 -.2842 -5.4806 0 -2.5767 -2.5 0 -2.5 4 16 2.5 0 0 7.7952 0 4.5383 8.1818 0 7.0095 0 0 0 4 16 2.5 0 0 6.4809 0 -.2842 7.2374 0 2.1 7.7952 0 4.5383 4 16 2.5 0 0 2.5 0 -2.5 5.4806 0 -2.5767 6.4809 0 -.2842 4 16 -2.5 0 -5 -2.5 0 -2.5 -5.4806 0 -2.5767 -4.1558 0 -4.6984 4 16 -2.5 0 -5 -4.1558 0 -4.6984 -2.3697 0 -6.4495 0 0 -7.25 3 16 -2.5 0 -5 0 0 -7.25 0 0 -5 4 16 2.5 0 -5 4.1558 0 -4.6984 5.4806 0 -2.5767 2.5 0 -2.5 4 16 2.5 0 -5 0 0 -7.25 2.3697 0 -6.4495 4.1558 0 -4.6984 3 16 2.5 0 -5 0 0 -5 0 0 -7.25 3 16 -10 0 0 -8.7386 0 4.1499 -9.1652 0 6.8138 3 16 -10 0 0 -8.1163 0 1.5249 -8.7386 0 4.1499 3 16 -10 0 0 -7.2651 0 -1.0351 -8.1163 0 1.5249 4 16 -10 0 0 -9.239 0 -3.827 -6.1309 0 -3.483 -7.2651 0 -1.0351 3 16 10 0 0 9.1652 0 6.8138 8.7386 0 4.1499 3 16 10 0 0 8.7386 0 4.1499 8.1163 0 1.5249 3 16 10 0 0 8.1163 0 1.5249 7.2651 0 -1.0351 4 16 10 0 0 7.2651 0 -1.0351 6.1309 0 -3.483 9.239 0 -3.827 4 16 -7.071 0 -7.071 -4.6193 0 -5.7175 -6.1309 0 -3.483 -9.239 0 -3.827 4 16 -7.071 0 -7.071 -3.827 0 -9.239 -2.5901 0 -7.4953 -4.6193 0 -5.7175 4 16 7.071 0 -7.071 9.239 0 -3.827 6.1309 0 -3.483 4.6193 0 -5.7175 4 16 7.071 0 -7.071 4.6193 0 -5.7175 2.5901 0 -7.4953 3.827 0 -9.239 4 16 0 0 -10 0 0 -8.25 -2.5901 0 -7.4953 -3.827 0 -9.239 4 16 0 0 -10 3.827 0 -9.239 2.5901 0 -7.4953 0 0 -8.25
