File Detail parts/s/6177954ss01.dat

Unofficial File parts/s/6177954ss01.dat

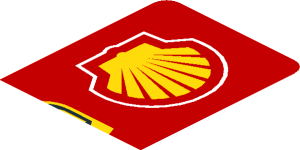

~Sticker 0.8 x 4.0 with Logos on Red Background Left - First Face

File Header:

0 ~Sticker  0.8 x  4.0 with Logos on Red Background Left - First Face
0 Name: s\6177954ss01.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

0 // Logo primitive
1 4 0 -.25 9.7477 0 0 .5 0 1 0 -.5 0 0 logo-shell-1971.dat
1 4 0 -.25 9.7477 0 0 .5 0 1 0 -.5 0 0 logo-shell-1971-outerbox-with-border.dat
0 // Primitives
1 4 -6.5 -.25 17.4194 -1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
1 4 6.5 -.25 17.4194 1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
0 // Black faces
4 0 -1.3398 -.25 -.0074 -2.5495 -.25 -.0049 -2.5623 -.25 -.0153 -1.3472 -.25 -.0153
4 0 -1.3398 -.25 -.0074 -1.0587 -.25 .1435 -2.2451 -.25 .1843 -2.5495 -.25 -.0049
4 0 -1.0587 -.25 .1435 -1.5781 -.25 .4435 -1.9196 -.25 .3345 -2.2451 -.25 .1843
3 0 -1.0587 -.25 .1435 -1.2258 -.25 .5096 -1.5781 -.25 .4435
4 0 -1.0587 -.25 .1435 -.7439 -.25 .1957 -.868 -.25 .5317 -1.2258 -.25 .5096
4 0 1.696 -.25 .1957 1.928 -.25 .5317 -.868 -.25 .5317 -.7439 -.25 .1957
4 0 1.696 -.25 .1957 2.3427 -.25 .0007 2.1402 -.25 .27 1.928 -.25 .5317
4 0 1.696 -.25 .1957 1.696 -.25 -.0153 2.3538 -.25 -.0153 2.3427 -.25 .0007
0 // Red faces
4 4 -6.5 -.25 18.9194 -8 -.25 17.4194 -5.6 -.25 9.7477 -5.6 -.25 15.7727
4 4 -6.5 -.25 18.9194 -5.6 -.25 15.7727 5.6 -.25 15.7727 6.5 -.25 18.9194
4 4 6.5 -.25 18.9194 5.6 -.25 15.7727 5.6 -.25 9.7477 8 -.25 17.4194
4 4 -5.6 -.25 3.7227 -5.6 -.25 9.7477 -8 -.25 17.4194 -8 -.25 -.0153
4 4 -5.6 -.25 3.7227 -8 -.25 -.0153 -3.1425 -.25 -.0153 -3.0823 -.25 .0471
3 4 -5.6 -.25 3.7227 -3.0823 -.25 .0471 -2.7674 -.25 .3015
3 4 -5.6 -.25 3.7227 -2.7674 -.25 .3015 -2.4234 -.25 .5153
3 4 -5.6 -.25 3.7227 -2.4234 -.25 .5153 -2.0558 -.25 .685
3 4 -5.6 -.25 3.7227 -2.0558 -.25 .685 -1.6701 -.25 .8081
3 4 -5.6 -.25 3.7227 -1.6701 -.25 .8081 -1.2721 -.25 .8827
3 4 -5.6 -.25 3.7227 -1.2721 -.25 .8827 -.868 -.25 .9077
4 4 -5.6 -.25 3.7227 -.868 -.25 .9077 4.032 -.25 .9077 5.6 -.25 3.7227
3 4 5.6 -.25 3.7227 4.032 -.25 .9077 4.1782 -.25 .5809
3 4 5.6 -.25 3.7227 4.1782 -.25 .5809 4.3124 -.25 .249
4 4 5.6 -.25 3.7227 4.3124 -.25 .249 4.4081 -.25 -.0153 8 -.25 -.0153
4 4 5.6 -.25 3.7227 8 -.25 -.0153 8 -.25 17.4194 5.6 -.25 9.7477
0 // Yellow faces
4 14 -3.0823 -.25 .0471 -3.1425 -.25 -.0153 -2.5623 -.25 -.0153 -2.5495 -.25 -.0049
3 14 -3.0823 -.25 .0471 -2.5495 -.25 -.0049 -2.7674 -.25 .3015
4 14 -2.4234 -.25 .5153 -2.7674 -.25 .3015 -2.5495 -.25 -.0049 -2.2451 -.25 .1843
4 14 -2.4234 -.25 .5153 -2.2451 -.25 .1843 -1.9196 -.25 .3345 -2.0558 -.25 .685
4 14 -1.6701 -.25 .8081 -2.0558 -.25 .685 -1.9196 -.25 .3345 -1.5781 -.25 .4435
4 14 -1.6701 -.25 .8081 -1.5781 -.25 .4435 -1.2258 -.25 .5096 -1.2721 -.25 .8827
4 14 -.868 -.25 .9077 -1.2721 -.25 .8827 -1.2258 -.25 .5096 -.868 -.25 .5317
3 14 -.868 -.25 .9077 -.868 -.25 .5317 1.928 -.25 .5317
4 14 -.868 -.25 .9077 1.928 -.25 .5317 4.1782 -.25 .5809 4.032 -.25 .9077
4 14 4.3124 -.25 .249 4.1782 -.25 .5809 1.928 -.25 .5317 2.1402 -.25 .27
3 14 4.3124 -.25 .249 2.1402 -.25 .27 2.3427 -.25 .0007
4 14 4.3124 -.25 .249 2.3427 -.25 .0007 2.3538 -.25 -.0153 4.4081 -.25 -.0153
4 14 1.696 -.25 -.0153 1.696 -.25 .1957 -.7439 -.25 .1957 -1.0587 -.25 .1435
4 14 1.696 -.25 -.0153 -1.0587 -.25 .1435 -1.3398 -.25 -.0074 -1.3472 -.25 -.0153

Status:

Needs More Votes (N)

This part has the following automated holds from the Parts Tracker

Has uncertified subfiles

p/logo-shell-1971-outerbox-with-border.dat (Needs More Votes)
No path of certified files to a certified or official parent in the parts folder

Current Votes:

User	Vote
RainbowDolphin	Certify

Official parents and subparts

Part Events:

Massimo Maso [Sirio]

initially submitted the part.

2023-04-03 22:35:29

Willy Tschager [Holly-Wood]

posted a vote of Hold.

2025-06-13 11:03:47

* Shell logo prim should be used.

* Too much detail

Massimo Maso [Sirio]

submitted a new version of the part.

2025-06-26 18:35:59

Updated references to logo-shell and logo-omr

Willy Tschager [Holly-Wood]

made the following comment.

2025-06-29 13:09:39

* Part is fine but I still think UPS has too much detail:

2 15 4.032 -.25 .9077 4.4081 -.25 -.0153
2 15 1.928 -.25 .5317 2.3427 -.25 .0007
2 15 -3.1425 -.25 -.0153 -3.0823 -.25 .0471
2 15 -.868 -.25 .9077 -2.7674 -.25 .3015
2 15 -2.5495 -.25 -.0049 -2.5623 -.25 -.0153
2 15 -1.3398 -.25 -.0074 -1.3472 -.25 -.0153

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.

2025-07-31 13:42:12
