Official File parts/6177954o.dat
Part Attributes:
File Header:

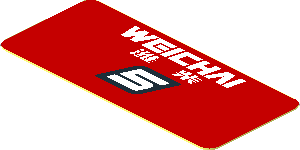

0 Sticker 0.8 x 1.8 with White Weichai Logo and Number 5 on Red Background
0 Name: 6177954o.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Part UPDATE 2025-08
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Bricklink 75879stk01, Ferrari, Rebrickable 30895, Scuderia
0 !KEYWORDS Set 75879, SF16-H, Speed Champions
0 !HISTORY 2025-08-31 [OrionP] Official Update 2025-08
Show contents
0 // Subpart
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\6177954os01.dat
0 // Number "5"
0 // Primitives
1 4 4.25 -.25 .75 0 0 .2 0 1 0 .2 0 0 5-16ndis.dat
1 0 4.25 -.25 .75 0 0 .2 0 1 0 .2 0 0 5-16chrd.dat
1 4 -1.2482 -.25 -.55 0 0 -1.5 0 1 0 1.5 0 0 3-16ndis.dat
1 0 -1.2482 -.25 -.55 0 0 -1.5 0 1 0 1.5 0 0 3-16chrd.dat
1 0 3.014 -.25 -.1 0 0 .2 0 1 0 .2 0 0 5-16ndis.dat
1 15 3.014 -.25 -.1 0 0 .2 0 1 0 .2 0 0 5-16chrd.dat
1 0 -1.2482 -.25 -.55 0 0 -.65 0 1 0 .65 0 0 3-16ndis.dat
1 15 -1.2482 -.25 -.55 0 0 -.65 0 1 0 .65 0 0 3-16chrd.dat
1 15 2.738 -.25 -.82 0 0 .2 0 1 0 -.2 0 0 3-16chrd.dat
1 0 2.738 -.25 -.82 0 0 .2 0 1 0 -.2 0 0 3-16ndis.dat
1 15 -1.0766 -.25 -1.22 0 0 -.2 0 1 0 .2 0 0 3-16ndis.dat
1 0 -1.0766 -.25 -1.22 0 0 -.2 0 1 0 .2 0 0 3-16chrd.dat
1 0 -1.0843 -.25 -1.24 0 0 -.2 0 1 0 -.2 0 0 5-16chrd.dat
1 15 -1.0843 -.25 -1.24 0 0 -.2 0 1 0 -.2 0 0 5-16ndis.dat
1 0 1.7694 -.25 -2.09 0 0 .65 0 1 0 .65 0 0 5-16ndis.dat
1 15 1.7694 -.25 -2.09 0 0 .65 0 1 0 .65 0 0 5-16chrd.dat
1 15 -2.4238 -.25 -2.36 0 0 -.2 0 1 0 -.2 0 0 5-16chrd.dat
1 0 -2.4238 -.25 -2.36 0 0 -.2 0 1 0 -.2 0 0 5-16ndis.dat
1 15 1.0843 -.25 -2.76 0 0 .2 0 1 0 .2 0 0 5-16ndis.dat
1 0 1.0843 -.25 -2.76 0 0 .2 0 1 0 .2 0 0 5-16chrd.dat
1 0 1.0766 -.25 -2.78 0 0 .2 0 1 0 -.2 0 0 3-16chrd.dat
1 15 1.0766 -.25 -2.78 0 0 .2 0 1 0 -.2 0 0 3-16ndis.dat
1 0 -2.738 -.25 -3.18 0 0 -.2 0 1 0 .2 0 0 3-16ndis.dat
1 15 -2.738 -.25 -3.18 0 0 -.2 0 1 0 .2 0 0 3-16chrd.dat
1 15 1.2482 -.25 -3.45 0 0 .65 0 1 0 -.65 0 0 3-16chrd.dat
1 0 1.2482 -.25 -3.45 0 0 .65 0 1 0 -.65 0 0 3-16ndis.dat
1 15 -3.014 -.25 -3.9 0 0 -.2 0 1 0 -.2 0 0 5-16chrd.dat
1 0 -3.014 -.25 -3.9 0 0 -.2 0 1 0 -.2 0 0 5-16ndis.dat
1 0 1.2482 -.25 -3.45 0 0 1.5 0 1 0 -1.5 0 0 3-16chrd.dat
1 4 1.2482 -.25 -3.45 0 0 1.5 0 1 0 -1.5 0 0 3-16ndis.dat
1 0 -4.25 -.25 -4.75 0 0 -.2 0 1 0 -.2 0 0 5-16chrd.dat
1 4 -4.25 -.25 -4.75 0 0 -.2 0 1 0 -.2 0 0 5-16ndis.dat
0 // Black frame
4 0 4.25 -.25 .95 -1.2482 -.25 .95 -1.2482 -.25 .1 3.014 -.25 .1
4 0 4.25 -.25 .95 3.014 -.25 .1 3.214 -.25 .1 4.43478 -.25 .67346
3 0 -1.8982 -.25 .1 -1.2482 -.25 .1 -1.2482 -.25 .95
3 0 -1.8982 -.25 .1 -1.2482 -.25 .95 -2.63405 -.25 .02405
4 0 -1.8982 -.25 .1 -2.63405 -.25 .02405 -4.43478 -.25 -4.67346 -2.6238 -.25 -2.16
4 0 -1.8982 -.25 .1 -2.6238 -.25 -2.16 -2.60858 -.25 -2.28346 -1.848735 -.25 -.301245
3 0 4.43478 -.25 .67346 3.214 -.25 .1 3.214 -.25 -.1
3 0 4.43478 -.25 .67346 3.214 -.25 -.1 3.214 -.25 -.3
3 0 4.43478 -.25 .67346 3.214 -.25 -.3 2.938 -.25 -1.02
4 0 4.43478 -.25 .67346 2.938 -.25 -1.02 2.4194 -.25 -2.09 2.4194 -.25 -2.74
4 0 4.43478 -.25 .67346 2.4194 -.25 -2.74 1.8982 -.25 -4.1 2.63405 -.25 -4.02405
4 0 -1.0766 -.25 -1.02 -1.26138 -.25 -1.14346 -1.26908 -.25 -1.16346 -1.0843 -.25 -1.44
4 0 -1.0766 -.25 -1.02 -1.0843 -.25 -1.44 1.7694 -.25 -1.44 2.738 -.25 -1.02
4 0 2.938 -.25 -1.02 3.214 -.25 -.3 3.19878 -.25 -.17654 2.92278 -.25 -.89654
4 0 2.938 -.25 -1.02 2.738 -.25 -1.02 1.7694 -.25 -1.44 2.4194 -.25 -1.44
3 0 2.938 -.25 -1.02 2.4194 -.25 -1.44 2.4194 -.25 -2.09
4 0 -2.938 -.25 -2.98 -2.6238 -.25 -2.36 -2.6238 -.25 -2.16 -4.43478 -.25 -4.67346
3 0 -2.938 -.25 -2.98 -2.6238 -.25 -2.56 -2.6238 -.25 -2.36
4 0 -2.938 -.25 -2.98 -2.738 -.25 -2.98 -2.4238 -.25 -2.56 -2.6238 -.25 -2.56
4 0 -2.938 -.25 -2.98 -3.214 -.25 -3.7 -3.19878 -.25 -3.82346 -2.92278 -.25 -3.10346
3 0 -2.938 -.25 -2.98 -4.43478 -.25 -4.67346 -3.214 -.25 -3.7
4 0 1.0766 -.25 -2.98 1.0843 -.25 -2.56 -2.4238 -.25 -2.56 -2.738 -.25 -2.98
4 0 1.0766 -.25 -2.98 1.26138 -.25 -2.85654 1.26908 -.25 -2.83654 1.0843 -.25 -2.56
4 0 1.8982 -.25 -4.1 2.4194 -.25 -2.74 2.369935 -.25 -2.338755 1.848735 -.25 -3.698755
3 0 1.8982 -.25 -4.1 1.2482 -.25 -4.1 1.2482 -.25 -4.95
3 0 1.8982 -.25 -4.1 1.2482 -.25 -4.95 2.63405 -.25 -4.02405
4 0 -4.25 -.25 -4.95 -3.214 -.25 -3.9 -3.214 -.25 -3.7 -4.43478 -.25 -4.67346
3 0 -4.25 -.25 -4.95 -3.214 -.25 -4.1 -3.214 -.25 -3.9
3 0 -4.25 -.25 -4.95 -3.014 -.25 -4.1 -3.214 -.25 -4.1
4 0 -4.25 -.25 -4.95 1.2482 -.25 -4.95 1.2482 -.25 -4.1 -3.014 -.25 -4.1
0 // Red faces
4 4 -5 -.25 1.2 -5 -.25 -5.5 -4.45 -.25 -4.55 -2.7482 -.25 .95
3 4 -5 -.25 1.2 -2.7482 -.25 .95 -1.2482 -.25 .95
4 4 -5 -.25 1.2 -1.2482 -.25 .95 4.25 -.25 .95 5 -.25 1.2
3 4 5 -.25 1.2 4.25 -.25 .95 4.45 -.25 .95
3 4 5 -.25 1.2 4.45 -.25 .95 4.45 -.25 .75
3 4 5 -.25 1.2 4.45 -.25 .75 4.45 -.25 .55
4 4 5 -.25 1.2 4.45 -.25 .55 2.7482 -.25 -4.95 5 -.25 -5.5
4 4 -4.45 -.25 -4.55 -4.43478 -.25 -4.67346 -2.63405 -.25 .02405 -2.7482 -.25 .95
4 4 2.7482 -.25 -4.95 4.45 -.25 .55 4.43478 -.25 .67346 2.63405 -.25 -4.02405
3 4 2.7482 -.25 -4.95 1.2482 -.25 -4.95 5 -.25 -5.5
3 4 -5 -.25 -5.5 -4.45 -.25 -4.75 -4.45 -.25 -4.55
3 4 -5 -.25 -5.5 -4.45 -.25 -4.95 -4.45 -.25 -4.75
3 4 -5 -.25 -5.5 -4.25 -.25 -4.95 -4.45 -.25 -4.95
4 4 -5 -.25 -5.5 5 -.25 -5.5 1.2482 -.25 -4.95 -4.25 -.25 -4.95
0 // White faces
4 15 3.014 -.25 .1 -1.2482 -.25 .1 -1.0766 -.25 -1.02 2.738 -.25 -1.02
4 15 3.014 -.25 .1 2.738 -.25 -1.02 2.92278 -.25 -.89654 3.19878 -.25 -.17654
3 15 -1.848735 -.25 -.301245 -1.2843 -.25 -1.24 -1.2843 -.25 -1.04
4 15 -1.848735 -.25 -.301245 -2.60858 -.25 -2.28346 -1.2843 -.25 -1.44 -1.2843 -.25 -1.24
4 15 -1.2766 -.25 -1.02 -1.0766 -.25 -1.02 -1.2482 -.25 .1 -1.848735 -.25 -.301245
3 15 -1.2766 -.25 -1.02 -1.848735 -.25 -.301245 -1.2843 -.25 -1.04
4 15 -1.2766 -.25 -1.02 -1.2843 -.25 -1.04 -1.26908 -.25 -1.16346 -1.26138 -.25 -1.14346
4 15 -2.4238 -.25 -2.56 -1.0843 -.25 -1.44 -1.2843 -.25 -1.44 -2.60858 -.25 -2.28346
4 15 -2.4238 -.25 -2.56 1.0843 -.25 -2.56 1.7694 -.25 -1.44 -1.0843 -.25 -1.44
4 15 1.2843 -.25 -2.56 2.369935 -.25 -2.338755 1.7694 -.25 -1.44 1.0843 -.25 -2.56
4 15 1.2843 -.25 -2.56 1.2843 -.25 -2.76 1.848735 -.25 -3.698755 2.369935 -.25 -2.338755
3 15 1.2843 -.25 -2.96 1.848735 -.25 -3.698755 1.2843 -.25 -2.76
4 15 1.2843 -.25 -2.96 1.26908 -.25 -2.83654 1.26138 -.25 -2.85654 1.2766 -.25 -2.98
3 15 1.2843 -.25 -2.96 1.2766 -.25 -2.98 1.848735 -.25 -3.698755
4 15 -2.738 -.25 -2.98 -2.92278 -.25 -3.10346 -3.19878 -.25 -3.82346 -3.014 -.25 -4.1
4 15 -2.738 -.25 -2.98 -3.014 -.25 -4.1 1.2482 -.25 -4.1 1.0766 -.25 -2.98
4 15 1.0766 -.25 -2.98 1.2482 -.25 -4.1 1.848735 -.25 -3.698755 1.2766 -.25 -2.98
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2023-04-03 22:52:15
2025-06-16 05:48:32
2025-06-17 11:42:41
2025-06-27 12:18:26
BFC error for triangle: "3 4 -5 -.25 -5.5 -4.45 -.25 -4.95 -4.25 -.25 -4.95" (Number 5 lower left corner).
2025-06-27 15:53:39
2025-06-28 09:29:44
2025-06-28 10:41:25
2025-08-18 21:02:18
2025-08-31 02:18:26
Release 2025-08
