Official File parts/s/6177960as01.dat
File Header:

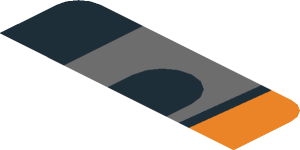

0 ~Sticker 0.8 x 1.9 with Black Air Vent on Grey Stripe on Black and Orange Background Right - First Face
0 Name: s\6177960as01.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Subpart UPDATE 2025-07
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2025-07-27 [OrionP] Official Update 2025-07
Show contents
0 // Primitives
1 0 -6.5 -.25 3.8922 -1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
1 25 6.5 -.25 3.8922 1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
1 72 1.4 -.25 1.7211 2 0 0 0 1 0 0 0 2 2-4ndis.dat
1 0 1.4 -.25 1.7211 2 0 0 0 1 0 0 0 2 2-4chrd.dat
0 // Black faces
3 0 -8 -.25 3.8922 -3.6 -.25 5.3922 -6.5 -.25 5.3922
4 0 -8 -.25 3.8922 -8 -.25 -.0121 -3.6 -.25 -.0121 -3.6 -.25 5.3922
4 0 -.6 -.25 -.0121 3.4 -.25 -.0121 3.4 -.25 1.7211 -.6 -.25 1.7211
4 0 4.2455 -.25 -.0121 4.9463 -.25 -.0121 5.2008 -.25 5.3922 4.5 -.25 5.3922
0 // Grey faces
4 72 -3.6 -.25 5.3922 -3.6 -.25 -.0121 -.6 -.25 1.7211 -.6 -.25 3.7211
3 72 -3.6 -.25 5.3922 -.6 -.25 3.7211 1.4 -.25 3.7211
4 72 -3.6 -.25 5.3922 1.4 -.25 3.7211 3.4 -.25 3.7211 4.5 -.25 5.3922
3 72 -3.6 -.25 -.0121 -.6 -.25 -.0121 -.6 -.25 1.7211
4 72 4.2455 -.25 -.0121 4.5 -.25 5.3922 3.4 -.25 3.7211 3.4 -.25 1.7211
3 72 4.2455 -.25 -.0121 3.4 -.25 1.7211 3.4 -.25 -.0121
0 // Orange faces
3 25 8 -.25 3.8922 6.5 -.25 5.3922 5.2008 -.25 5.3922
4 25 8 -.25 3.8922 5.2008 -.25 5.3922 4.9463 -.25 -.0121 8 -.25 -.0121
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © Massimo Maso
Licensed under CC BY 4.0
