Official File parts/s/6177960ds02.dat
File Header:

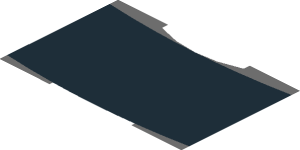

0 ~Sticker 0.8 x 2.4 with Grey and White Air Vents on Black Background - Second Face
0 Name: s\6177960ds02.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Subpart UPDATE 2025-07
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2025-07-27 [OrionP] Official Update 2025-07
Show contents
0 // Black faces
4 0 -5.8 -.25 -.9619 -8 -.25 -.7242 -8 -.25 -9.7242 -5.8 -.25 -9.9619
4 0 -5.8 -.25 -.9619 -5.8 -.25 -9.9619 -3.6 -.25 -10.1233 -3.6 -.25 -1.1233
4 0 5.8 -.25 -.9619 3.6 -.25 -1.1233 3.6 -.25 -10.1233 5.8 -.25 -9.9619
4 0 5.8 -.25 -.9619 5.8 -.25 -9.9619 8 -.25 -9.7242 8 -.25 -.7242
4 0 -1.8 -.25 -1.199 -3.6 -.25 -1.1233 -3.6 -.25 -10.1233 -1.8 -.25 -10.199
4 0 -1.8 -.25 -1.199 -1.8 -.25 -10.199 0 -.25 -10.2242 0 -.25 -1.2242
4 0 1.8 -.25 -1.199 0 -.25 -1.2242 0 -.25 -10.2242 1.8 -.25 -10.199
4 0 1.8 -.25 -1.199 1.8 -.25 -10.199 3.6 -.25 -10.1233 3.6 -.25 -1.1233
0 // Grey faces
3 72 -8 -.25 .0165 -3.6 -.25 -.5233 -3.6 -.25 .0165
3 72 -8 -.25 .0165 -1.8 -.25 -1.0539 -3.6 -.25 -.5233
4 72 -8 -.25 .0165 -3.6 -.25 -1.1233 -1.8 -.25 -1.199 -1.8 -.25 -1.0539
4 72 -8 -.25 .0165 -8 -.25 -.7242 -5.8 -.25 -.9619 -3.6 -.25 -1.1233
3 72 8 -.25 .0165 3.6 -.25 .0165 3.6 -.25 -.5233
3 72 8 -.25 .0165 3.6 -.25 -.5233 1.8 -.25 -1.0539
4 72 8 -.25 .0165 1.8 -.25 -1.0539 1.8 -.25 -1.199 3.6 -.25 -1.1233
4 72 8 -.25 .0165 3.6 -.25 -1.1233 5.8 -.25 -.9619 8 -.25 -.7242
3 72 0 -.25 -1.2242 -1.8 -.25 -1.0539 -1.8 -.25 -1.199
3 72 0 -.25 -1.2242 1.8 -.25 -1.199 1.8 -.25 -1.0539
3 72 -8 -.25 -10.4065 -5.8 -.25 -9.9619 -8 -.25 -9.7242
4 72 -8 -.25 -10.4065 -3.6 -.25 -10.4065 -3.6 -.25 -10.1233 -5.8 -.25 -9.9619
3 72 8 -.25 -10.4065 8 -.25 -9.7242 5.8 -.25 -9.9619
4 72 8 -.25 -10.4065 5.8 -.25 -9.9619 3.6 -.25 -10.1233 3.6 -.25 -10.4065
0 // White faces
4 15 0 -.25 -1.2242 -3.6 -.25 .0165 -3.6 -.25 -.5233 -1.8 -.25 -1.0539
3 15 0 -.25 -1.2242 3.6 -.25 .0165 -3.6 -.25 .0165
4 15 0 -.25 -1.2242 1.8 -.25 -1.0539 3.6 -.25 -.5233 3.6 -.25 .0165
3 15 -3.6 -.25 -10.4065 -1.8 -.25 -10.199 -3.6 -.25 -10.1233
3 15 -3.6 -.25 -10.4065 0 -.25 -10.2242 -1.8 -.25 -10.199
3 15 -3.6 -.25 -10.4065 3.6 -.25 -10.4065 0 -.25 -10.2242
3 15 3.6 -.25 -10.4065 3.6 -.25 -10.1233 1.8 -.25 -10.199
3 15 3.6 -.25 -10.4065 1.8 -.25 -10.199 0 -.25 -10.2242
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © Massimo Maso
Licensed under CC BY 4.0
