Official File parts/s/6177960ds03.dat
File Header:

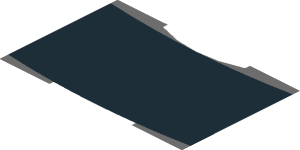

0 ~Sticker 0.8 x 2.4 with Grey and White Air Vents on Black Background - Third Face
0 Name: s\6177960ds03.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Subpart UPDATE 2025-07
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2025-07-27 [OrionP] Official Update 2025-07
Show contents
0 // Black faces
4 0 -5.8 -.25 9.5017 -8 -.25 9.7394 -8 -.25 .7394 -5.8 -.25 .5017
4 0 -5.8 -.25 9.5017 -5.8 -.25 .5017 -3.6 -.25 .3403 -3.6 -.25 9.3403
4 0 5.8 -.25 9.5017 3.6 -.25 9.3403 3.6 -.25 .3403 5.8 -.25 .5017
4 0 5.8 -.25 9.5017 5.8 -.25 .5017 8 -.25 .7394 8 -.25 9.7394
4 0 -1.8 -.25 9.2646 -3.6 -.25 9.3403 -3.6 -.25 .3403 -1.8 -.25 .2646
4 0 -1.8 -.25 9.2646 -1.8 -.25 .2646 0 -.25 .2394 0 -.25 9.2394
4 0 1.8 -.25 9.2646 0 -.25 9.2394 0 -.25 .2394 1.8 -.25 .2646
4 0 1.8 -.25 9.2646 1.8 -.25 .2646 3.6 -.25 .3403 3.6 -.25 9.3403
0 // Grey faces
3 72 -8 -.25 10.3571 -3.6 -.25 9.9403 -3.6 -.25 10.3571
3 72 -8 -.25 10.3571 -1.8 -.25 9.4097 -3.6 -.25 9.9403
4 72 -8 -.25 10.3571 -3.6 -.25 9.3403 -1.8 -.25 9.2646 -1.8 -.25 9.4097
4 72 -8 -.25 10.3571 -8 -.25 9.7394 -5.8 -.25 9.5017 -3.6 -.25 9.3403
3 72 8 -.25 10.3571 3.6 -.25 10.3571 3.6 -.25 9.9403
3 72 8 -.25 10.3571 3.6 -.25 9.9403 1.8 -.25 9.4097
4 72 8 -.25 10.3571 1.8 -.25 9.4097 1.8 -.25 9.2646 3.6 -.25 9.3403
4 72 8 -.25 10.3571 3.6 -.25 9.3403 5.8 -.25 9.5017 8 -.25 9.7394
3 72 0 -.25 9.2394 -1.8 -.25 9.4097 -1.8 -.25 9.2646
3 72 0 -.25 9.2394 1.8 -.25 9.2646 1.8 -.25 9.4097
3 72 -8 -.25 -.017 -5.8 -.25 .5017 -8 -.25 .7394
4 72 -8 -.25 -.017 -3.6 -.25 -.017 -3.6 -.25 .3403 -5.8 -.25 .5017
3 72 8 -.25 -.017 8 -.25 .7394 5.8 -.25 .5017
4 72 8 -.25 -.017 5.8 -.25 .5017 3.6 -.25 .3403 3.6 -.25 -.017
0 // White faces
4 15 0 -.25 9.2394 -3.6 -.25 10.3571 -3.6 -.25 9.9403 -1.8 -.25 9.4097
3 15 0 -.25 9.2394 3.6 -.25 10.3571 -3.6 -.25 10.3571
4 15 0 -.25 9.2394 1.8 -.25 9.4097 3.6 -.25 9.9403 3.6 -.25 10.3571
3 15 -3.6 -.25 -.017 -1.8 -.25 .2646 -3.6 -.25 .3403
3 15 -3.6 -.25 -.017 0 -.25 .2394 -1.8 -.25 .2646
3 15 -3.6 -.25 -.017 3.6 -.25 -.017 0 -.25 .2394
3 15 3.6 -.25 -.017 3.6 -.25 .3403 1.8 -.25 .2646
3 15 3.6 -.25 -.017 1.8 -.25 .2646 0 -.25 .2394
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © Massimo Maso
Licensed under CC BY 4.0
