Official File parts/s/6177960ds04.dat
File Header:

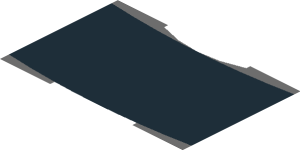

0 ~Sticker 0.8 x 2.4 with Grey and White Air Vents on Black Background - Fourth Face
0 Name: s\6177960ds04.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Subpart UPDATE 2025-07
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2025-07-27 [OrionP] Official Update 2025-07
Show contents
0 // Black faces
4 0 -5.8 -.25 -.7643 -8 -.25 -.5266 -8 -.25 -9.5266 -5.8 -.25 -9.7643
4 0 -5.8 -.25 -.7643 -5.8 -.25 -9.7643 -3.6 -.25 -9.9257 -3.6 -.25 -.9257
4 0 5.8 -.25 -.7643 3.6 -.25 -.9257 3.6 -.25 -9.9257 5.8 -.25 -9.7643
4 0 5.8 -.25 -.7643 5.8 -.25 -9.7643 8 -.25 -9.5266 8 -.25 -.5266
4 0 -1.8 -.25 -1.0014 -3.6 -.25 -.9257 -3.6 -.25 -9.9257 -1.8 -.25 -10.0014
4 0 -1.8 -.25 -1.0014 -1.8 -.25 -10.0014 0 -.25 -10.0266 0 -.25 -1.0266
4 0 1.8 -.25 -1.0014 0 -.25 -1.0266 0 -.25 -10.0266 1.8 -.25 -10.0014
4 0 1.8 -.25 -1.0014 1.8 -.25 -10.0014 3.6 -.25 -9.9257 3.6 -.25 -.9257
0 // Grey faces
3 72 -8 -.25 .017 -3.6 -.25 -.3257 -3.6 -.25 .017
3 72 -8 -.25 .017 -1.8 -.25 -.8563 -3.6 -.25 -.3257
4 72 -8 -.25 .017 -3.6 -.25 -.9257 -1.8 -.25 -1.0014 -1.8 -.25 -.8563
4 72 -8 -.25 .017 -8 -.25 -.5266 -5.8 -.25 -.7643 -3.6 -.25 -.9257
3 72 8 -.25 .017 3.6 -.25 .017 3.6 -.25 -.3257
3 72 8 -.25 .017 3.6 -.25 -.3257 1.8 -.25 -.8563
4 72 8 -.25 .017 1.8 -.25 -.8563 1.8 -.25 -1.0014 3.6 -.25 -.9257
4 72 8 -.25 .017 3.6 -.25 -.9257 5.8 -.25 -.7643 8 -.25 -.5266
3 72 0 -.25 -1.0266 -1.8 -.25 -.8563 -1.8 -.25 -1.0014
3 72 0 -.25 -1.0266 1.8 -.25 -1.0014 1.8 -.25 -.8563
3 72 -8 -.25 -10.3147 -5.8 -.25 -9.7643 -8 -.25 -9.5266
4 72 -8 -.25 -10.3147 -3.6 -.25 -10.3147 -3.6 -.25 -9.9257 -5.8 -.25 -9.7643
3 72 8 -.25 -10.3147 8 -.25 -9.5266 5.8 -.25 -9.7643
4 72 8 -.25 -10.3147 5.8 -.25 -9.7643 3.6 -.25 -9.9257 3.6 -.25 -10.3147
0 // White faces
4 15 0 -.25 -1.0266 -3.6 -.25 .017 -3.6 -.25 -.3257 -1.8 -.25 -.8563
3 15 0 -.25 -1.0266 3.6 -.25 .017 -3.6 -.25 .017
4 15 0 -.25 -1.0266 1.8 -.25 -.8563 3.6 -.25 -.3257 3.6 -.25 .017
3 15 -3.6 -.25 -10.3147 -1.8 -.25 -10.0014 -3.6 -.25 -9.9257
3 15 -3.6 -.25 -10.3147 0 -.25 -10.0266 -1.8 -.25 -10.0014
3 15 -3.6 -.25 -10.3147 3.6 -.25 -10.3147 0 -.25 -10.0266
3 15 3.6 -.25 -10.3147 3.6 -.25 -9.9257 1.8 -.25 -10.0014
3 15 3.6 -.25 -10.3147 1.8 -.25 -10.0014 0 -.25 -10.0266
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © Massimo Maso
Licensed under CC BY 4.0
