Unofficial File parts/s/stickerback008x024.dat
File Header:

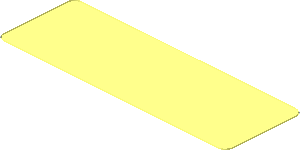

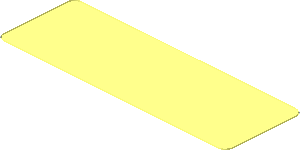

0 ~Sticker Back 0.8 x 2.4
0 Name: s\stickerback008x024.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
0 // Primitives
1 16 -22.0002 0 6.5 -1.5 0 0 0 -1 0 0 0 1.5 1-4chrd.dat
1 16 22.0002 0 6.5 1.5 0 0 0 -1 0 0 0 1.5 1-4chrd.dat
1 16 0 -.25 0 0 0 23.5002 0 .25 0 6.5 0 0 box3u12.dat
1 16 -22.0002 0 -6.5 -1.5 0 0 0 -1 0 0 0 -1.5 1-4chrd.dat
1 16 22.0002 0 -6.5 1.5 0 0 0 -1 0 0 0 -1.5 1-4chrd.dat
1 16 -22.0002 -0.25 6.5 -1.5 0 0 0 0.25 0 0 0 1.5 1-4cyli.dat
1 16 22.0002 -0.25 6.5 1.5 0 0 0 0.25 0 0 0 1.5 1-4cyli.dat
1 16 -22.0002 -0.25 -6.5 -1.5 0 0 0 0.25 0 0 0 -1.5 1-4cyli.dat
1 16 22.0002 -0.25 -6.5 1.5 0 0 0 0.25 0 0 0 -1.5 1-4cyli.dat
0 // Bottom face
4 16 -23.5002 0 6.5 -22.0002 0 8 22.0002 0 8 23.5002 0 6.5
4 16 -23.5002 0 -6.5 23.5002 0 -6.5 22.0002 0 -8 -22.0002 0 -8
0 // Lateral face
4 16 -22.0002 0 8 -22.0002 -.25 8 22.0002 -.25 8 22.0002 0 8
4 16 -22.0002 0 -8 22.0002 0 -8 22.0002 -.25 -8 -22.0002 -.25 -8
Status:
Errors Found (HN)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
| User | Vote |
|---|---|
| MagFors | Hold |
Official parents and subparts
Part Events:
2023-04-03 22:59:06
Changed description (3.8 --> 2.4)
2025-06-21 15:55:56
* Why is this rotated in relationship to the main part?
2025-06-24 21:34:35
I consider the main part to be the formed one and not the flat one. In fact, all the subparts that compose it are oriented for the formed version. This subpart is therefore also oriented in this way.
If it really upsets you to think of rotating it in the flat main part, I turn it. But it seems to me to be absolutely useless.
If it really upsets you to think of rotating it in the flat main part, I turn it. But it seems to me to be absolutely useless.
2025-06-24 22:09:17
why are the long sides split? you are allowed to use one single quad at the side even if it generates a bit of t-junk along the "edge"...
* I'm not gonna die on this hill
Removed triangles on long vertical faces.
2025-06-30 11:07:28
2025-07-23 20:38:19
"parts/s/6177960ds06.dat" to "parts/s/stickerback008x024.dat"
Orientation is wrong.
2025-07-24 21:54:31
2025-08-01 16:18:05
* Needs some hard rounding:
4 16 -23.5002 0 6.5 -22.0002 0 8 22.0002 0 8 23.5002 0 6.5
4 16 -23.5002 0 6.5 -22.0002 0 8 22.0002 0 8 23.5002 0 6.5
2025-08-02 05:37:12
The sticker is not flat. The non-integer value results from the sum of the lengths of the subparts that compose it.
Your request cannot be satisfied in a simple way.
Your request cannot be satisfied in a simple way.
2025-08-02 07:09:02
* I'm perfectly aware of this. However the sticker back cannot be reused on other parts with this value.
2025-08-02 07:24:47
I agree. Should be fixed.
Since this is a standardized backside IMO the tiny error should be removed.
It's only off by 0.0002 ldu and the pattern subfile need not to be changed.
But this file should be "clean".
It's only off by 0.0002 ldu and the pattern subfile need not to be changed.
But this file should be "clean".
