Official File parts/6177960q.dat
Part Attributes:
File Header:

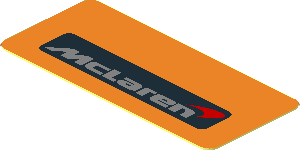

0 Sticker 0.8 x 1.8 with McLaren Logo in Black Frame on Orange Background
0 Name: 6177960q.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Part UPDATE 2025-08
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS 720S, BrickLink 75880stk01, Rebrickable 30896, Set 75880
0 !KEYWORDS Speed Champions
0 !HISTORY 2025-08-31 [OrionP] Official Update 2025-08
Show contents
0 // Stickerback
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\stickerback008x018.dat
0 // Logo primitive
1 80 -1.518 -.25 -3.286 .22 0 0 0 1 0 0 0 .22 logo-mclaren-text.dat
1 4 10.758 -.25 -2.032 .22 0 0 0 1 0 0 0 .22 logo-mclaren-icon.dat
1 0 0 -.25 -2.45 .22 0 0 0 1 0 0 0 .22 logo-mclaren-box.dat
0 // Primitives
1 25 -16.5 -.25 6.5 -1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
1 25 16.5 -.25 6.5 1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
1 25 -16.5 -.25 -6.5 -1.5 0 0 0 1 0 0 0 -1.5 1-4chrd.dat
1 25 16.5 -.25 -6.5 1.5 0 0 0 1 0 0 0 -1.5 1-4chrd.dat
1 25 13 -.25 -.65 1 0 0 0 1 0 0 0 1 1-4ndis.dat
1 0 13 -.25 -.65 1 0 0 0 1 0 0 0 1 1-4chrd.dat
1 25 -13 -.25 -.65 -1 0 0 0 1 0 0 0 1 1-4ndis.dat
1 0 -13 -.25 -.65 -1 0 0 0 1 0 0 0 1 1-4chrd.dat
1 0 -13 -.25 -4.25 -1 0 0 0 1 0 0 0 -1 1-4chrd.dat
1 25 -13 -.25 -4.25 -1 0 0 0 1 0 0 0 -1 1-4ndis.dat
1 0 13 -.25 -4.25 1 0 0 0 1 0 0 0 -1 1-4chrd.dat
1 25 13 -.25 -4.25 1 0 0 0 1 0 0 0 -1 1-4ndis.dat
0 // Top face
0 // Black faces
4 0 -13.508 -.25 -.514 -14 -.25 -.65 -14 -.25 -4.25 -13.508 -.25 -4.386
3 0 -13.508 -.25 -.514 -13 -.25 .35 -14 -.25 -.65
4 0 -13.508 -.25 -.514 13.508 -.25 -.514 13 -.25 .35 -13 -.25 .35
3 0 13.508 -.25 -.514 14 -.25 -.65 13 -.25 .35
4 0 13.508 -.25 -.514 13.508 -.25 -4.386 14 -.25 -4.25 14 -.25 -.65
3 0 -13.508 -.25 -4.386 -14 -.25 -4.25 -13 -.25 -5.25
3 0 13.508 -.25 -4.386 13 -.25 -5.25 14 -.25 -4.25
4 0 -13 -.25 -5.25 13 -.25 -5.25 13.508 -.25 -4.386 -13.508 -.25 -4.386
0 // Orange faces
4 25 -16.5 -.25 8 -18 -.25 6.5 -14 -.25 .35 -13 -.25 .35
4 25 -16.5 -.25 8 -13 -.25 .35 13 -.25 .35 16.5 -.25 8
4 25 16.5 -.25 8 13 -.25 .35 14 -.25 .35 18 -.25 6.5
3 25 -18 -.25 6.5 -14 -.25 -.65 -14 -.25 .35
4 25 -18 -.25 6.5 -18 -.25 -6.5 -14 -.25 -4.25 -14 -.25 -.65
3 25 18 -.25 6.5 14 -.25 .35 14 -.25 -.65
4 25 18 -.25 6.5 14 -.25 -.65 14 -.25 -4.25 18 -.25 -6.5
4 25 -16.5 -.25 -8 -14 -.25 -5.25 -14 -.25 -4.25 -18 -.25 -6.5
3 25 -16.5 -.25 -8 -13 -.25 -5.25 -14 -.25 -5.25
4 25 -16.5 -.25 -8 16.5 -.25 -8 13 -.25 -5.25 -13 -.25 -5.25
4 25 16.5 -.25 -8 18 -.25 -6.5 14 -.25 -4.25 14 -.25 -5.25
3 25 16.5 -.25 -8 14 -.25 -5.25 13 -.25 -5.25
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2023-04-03 23:08:20
Inlined McLaren logos.
Removed the primitive text-only outerbox that comproved the overlap with the image in the corner.
missing/flipped triangle in the lower right corner of the black area
Fixed.
2025-03-29 17:05:59
* There is no reason for 6177960cs01.dat
Removed use of subpart cs01.
2025-06-27 14:38:21
2025-06-30 12:07:35
Needs a sticker back file
2025-07-25 17:36:49
2025-07-31 10:48:03
2025-07-31 13:38:42
2025-08-04 19:10:05
2025-08-31 02:18:26
Release 2025-08
