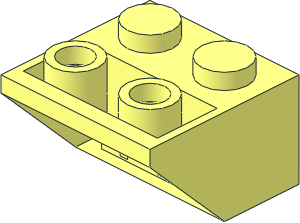

0 ~Slope Brick 45 2 x 2 Inverted with Round Bottom Pin with Inner Stopper Ring without Front Face
0 Name: s\76959s01.dat
0 Author: Florent Faramond [Makou]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2025-03-16 [MagFors] Reworked bottom
Show contents
0 BFC INVERTNEXT
1 16 0 24 -.5 16 0 0 0 -20 0 0 0 6.5 box5.dat
4 16 16 24 6 -16 24 6 -20 24 10 20 24 10
4 16 -16 24 6 -16 24 -7 -20 24 -10 -20 24 10
4 16 16 24 -7 16 24 6 20 24 10 20 24 -10
1 16 0 24 0 20 0 0 0 -1 0 0 0 -10 recte3.dat
2 24 20 4 -30 20 24 -10
2 24 -20 4 -30 -20 24 -10
2 24 20 0 -30 20 0 10
2 24 -20 0 -30 -20 0 10
2 24 -18 0 -10 -18 0 -26
2 24 18 0 -26 18 0 -10
0 BFC INVERTNEXT
1 16 0 10 -18 18 0 0 0 2 -8 0 0 -8 box2-5.dat
4 16 20 4 -30 20 24 -10 20 24 10 20 0 10
3 16 20 4 -30 20 0 10 20 0 -30
1 16 0 12 10 20 0 0 0 0 12 0 -1 0 rect.dat
4 16 -20 4 -30 -20 0 10 -20 24 10 -20 24 -10
3 16 -20 4 -30 -20 0 -30 -20 0 10
1 16 0 2 -30 20 0 0 0 0 2 0 1 0 rect.dat
4 16 18 0 -10 18 20 -10 18 4 -26 18 0 -26
4 16 -18 0 -10 -18 0 -26 -18 4 -26 -18 20 -10
1 16 0 10 -10 18 0 0 0 0 -10 0 1 0 rect3.dat
4 16 18 0 -10 20 0 10 -20 0 10 -18 0 -10
4 16 -18 0 -10 -20 0 10 -20 0 -30 -18 0 -26
4 16 18 0 -26 20 0 -30 20 0 10 18 0 -10
1 16 10 0 0 0 0 1 0 1 0 -1 0 0 stud.dat
1 16 10 0 -20 1 0 0 0 1 0 0 0 1 stud2a.dat
1 16 10 0 -20 1 0 0 0 4 0 0 0 1 stud2s2e.dat
1 16 10 4 -20 0 0 1 0 6 0 -1 0 0 stud2s2.dat
1 16 -10 0 0 0 0 1 0 1 0 -1 0 0 stud.dat
1 16 -10 0 -20 1 0 0 0 1 0 0 0 1 stud2a.dat
1 16 -10 0 -20 1 0 0 0 4 0 0 0 1 stud2s2e.dat
1 16 -10 4 -20 0 0 1 0 6 0 -1 0 0 stud2s2.dat
0 // hollow stud3
1 16 0 4 0 1 0 0 0 -5 0 0 0 1 stud3.dat
1 16 10 13.75 -7 -1 0 0 0 0 9.75 0 1 0 box4-1.dat
1 16 0 13.75 -7 -1 0 0 0 0 9.75 0 1 0 box4-1.dat
1 16 -10 13.75 -7 1 0 0 0 0 9.75 0 1 0 box4-1.dat
4 16 -20 24 -10 -16 24 -7 16 24 -7 20 24 -10
4 16 -20 0 -30 20 0 -30 18 0 -26 -18 0 -26
Status:
Awaiting Admin Review (CCN)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
| User | Vote |
|---|---|
| Philo | Certify |
| Plastikean | Certify |
Official parents and subparts
Part Events:
First submit
Many elements are bfc backwards.
Also wondering about inner hole of stud3 and tiny side ribs, these are "traditionally" not modeled.
Also wondering about inner hole of stud3 and tiny side ribs, these are "traditionally" not modeled.
BFC issues corrected
2023-04-06 13:58:44
Hey Faramond,
First I thought this is an alias of 3660, but then I saw it isn't. We need this new variant.
Now there are 3 versions of this part. Is it possible to make a common subfile, shared betwen all three designs?
First I thought this is an alias of 3660, but then I saw it isn't. We need this new variant.
Now there are 3 versions of this part. Is it possible to make a common subfile, shared betwen all three designs?
2023-04-06 14:44:20
Not really, there are some little differences. We can do a subpart in common just between 3660b and 76959.
2023-07-14 22:03:57
It seems really odd to have naming of "hollow bottom tube", and not have the tube actually be hollow. Additionally, that hollow stud3 is the visual clue that makes 76959 user-discernable from other elements in this family. Having it missing looks like an error.
Agreed that if "hollow" appears in the name, it should be included in the part, also as it's a distinguishing characteristic of this mold version. On the other hand, true, we don't usually model hollow pins. I kind of wish we did, but then we'd have to revise many, many parts to be consistent.
But in any event, we do need a variant with a *round* underside pin *and* the internal bar stopper, and the name should reflect this.
But in any event, we do need a variant with a *round* underside pin *and* the internal bar stopper, and the name should reflect this.
2024-03-20 19:24:24
is it worth to mention the 3 bottom ribs instead?
naming also has been discussed here:
https://forums.ldraw.org/thread-18657.html
naming also has been discussed here:
https://forums.ldraw.org/thread-18657.html
Added a hollow bottom stud and simplified/corrected design.
2025-03-16 07:42:54
Header Edits
description:
~Slope Brick 45 2 x 2 Inverted with Hollow Round Bottom Tube
to
~Slope Brick 45 2 x 2 Inverted with Hollow Round Bottom Pin
2025-06-24 11:43:26
2026-01-21 08:28:37
I still don't understand why bottom stud should be drilled on this specific part while a gazillion of other parts are (and this is a good thing!) not drilled.
Removed hollow bottom pin.
2026-01-21 09:16:54
2026-01-22 02:04:41
Name should include "with Inner Stopper Ring" (to match 3660b) and "without Front Face" (as this is the subpart). Also 3660b should probably be renamed to reflect the flat pin.
2026-01-22 13:40:45
Header Edits
description:
~Slope Brick 45 2 x 2 Inverted with Round Bottom Pin
to
~Slope Brick 45 2 x 2 Inverted with Round Bottom Pin with Inner Stopper Ring without Front Face
2026-01-23 01:59:13
Creative Commons Attribution License information
This part is copyright © Florent Faramond
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
