File Detail parts/s/3668s01.dat

Official File parts/s/3668s01.dat

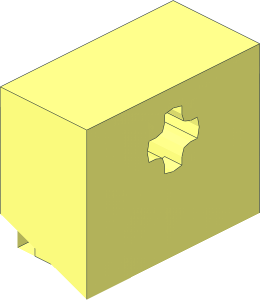

~Plate 2 x 6 with Side Bricks 1 x 2 x 1.333 with Axlehole with Underside Ridges - Brick

File Header:

0 ~Plate  2 x  6 with Side Bricks  1 x  2 x  1.333 with Axlehole with Underside Ridges - Brick
0 Name: s\3668s01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Subpart UPDATE 2023-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2023-06-24 [OrionP] Official Update 2023-03

Show contents

1 16 40 28 0 0 0 -1 0 -1 0 1 0 0 2-4stud4.dat
4 16 40 32 16 44 32 16 44 32 -16 40 32 -16
4 16 60 32 -20 56 32 -16 56 32 16 60 32 20
1 16 40 30 -12 0 1 0 0 0 2 4 0 0 rect2a.dat
1 16 40 30 0 0 1 0 0 0 2 6 0 0 rect3.dat
1 16 40 30 12 0 1 0 2 0 0 0 0 -4 rect2a.dat
1 16 50 0 0 0 0 10 0 1 0 -20 0 0 rect.dat
1 16 50 32 0 0 0 6 0 1 0 16 0 0 recte4.dat
2 24 40 24 20 40 0 20
2 24 60 32 20 60 0 20
2 24 40 24 -20 40 0 -20
2 24 60 32 -20 60 0 -20
4 16 40 24 20 40 0 20 60 0 20 60 32 20
4 16 40 24 -20 60 32 -20 60 0 -20 40 0 -20
1 16 40 10 0 0 20 0 0 0 1 1 0 0 axlehol4.dat
1 16 40 10 0 0 1 0 0 0 6 6 0 0 4-4ndis.dat
1 16 60 10 0 0 -1 0 0 0 6 6 0 0 4-4ndis.dat
2 24 44 15.6023 -2 40 15.6023 -2
2 24 44 16 0 44 15.6023 -2
2 24 40 16 0 40 15.6023 -2
2 24 40 16 0 40 15.6023 2
2 24 44 15.6023 2 40 15.6023 2
2 24 44 16 0 44 15.6023 2
4 16 44 15.6023 -2 44 16 0 40 16 0 40 15.6023 -2
4 16 40 16 0 44 16 0 44 15.6023 2 40 15.6023 2
5 24 44 16 0 40 16 0 40 15.6023 -2 40 15.6023 2
2 24 60 15.6023 -2 56 15.6023 -2
2 24 60 16 0 60 15.6023 -2
2 24 56 16 0 56 15.6023 -2
2 24 56 16 0 56 15.6023 2
2 24 60 15.6023 2 56 15.6023 2
2 24 60 16 0 60 15.6023 2
4 16 60 15.6023 -2 60 16 0 56 16 0 56 15.6023 -2
4 16 56 16 0 60 16 0 60 15.6023 2 56 15.6023 2
5 24 60 16 0 56 16 0 56 15.6023 -2 56 15.6023 2
4 16 60 0 -20 60 4 -6 60 4 6 60 0 20
4 16 60 32 20 60 0 20 60 4 6 60 16 6
4 16 60 32 -20 60 32 20 60 16 6 60 16 -6
4 16 60 32 -20 60 16 -6 60 4 -6 60 0 -20
4 16 40 0 20 40 4 6 40 4 -6 40 0 -20
4 16 40 0 -20 40 4 -6 40 16 -6 40 24 -20
4 16 40 24 20 40 24 -20 40 16 -6 40 16 6
4 16 40 0 20 40 24 20 40 16 6 40 4 6
2 24 56 14.4 7.5 56 9.5 9.5
2 24 56 9.5 9.5 56 3 9.5
2 24 44 14.4 7.5 44 9.5 9.5
2 24 44 9.5 9.5 44 3 9.5
4 16 44 9.5 9.5 44 3 9.5 56 3 9.5 56 9.5 9.5
1 16 50 3 12.75 0 0 6 0 -1 0 3.25 0 0 rect.dat
1 16 50 17.00115 2 -6 0 0 0 0 1.39885 0 1 0 rect3.dat
1 16 50 14.4 6.1645 0 0 6 0 -1 0 1.3355 0 0 rect.dat
4 16 44 14.4 7.5 44 9.5 9.5 56 9.5 9.5 56 14.4 7.5
1 16 50 17.7855 3.4145 -6 0 0 0 -1 -0.6145 0 0 1.4145 rect3.dat
1 16 50 15.7855 4.829 0 0 6 -1.3855 0 0 0 -1 0 rect2p.dat
5 24 44 9.5 9.5 56 9.5 9.5 44 3 9.5 44 14.4 7.5
4 16 44 17.171 4.829 44 15.6023 2 44 16 0 44 32 16
4 16 44 14.4 4.829 44 17.171 4.829 44 32 16 44 3 9.5
3 16 44 3 16 44 3 9.5 44 32 16
4 16 56 16 0 56 15.6023 2 56 17.171 4.829 56 32 16
4 16 56 32 16 56 17.171 4.829 56 14.4 4.829 56 3 9.5
3 16 56 3 9.5 56 3 16 56 32 16
1 16 50 17.5 16 0 0 -6 -14.5 0 0 0 1 0 rect2p.dat
2 24 56 9.5 -9.5 56 14.4 -7.5
2 24 56 3 -9.5 56 9.5 -9.5
2 24 44 9.5 -9.5 44 14.4 -7.5
2 24 44 3 -9.5 44 9.5 -9.5
4 16 56 3 -9.5 44 3 -9.5 44 9.5 -9.5 56 9.5 -9.5
1 16 50 3 -12.75 -6 0 0 0 -1 0 0 0 3.25 rect.dat
1 16 50 17.00115 -2 6 0 0 0 0 1.39885 0 -1 0 rect3.dat
1 16 50 14.4 -6.1645 -6 0 0 0 -1 0 0 0 1.3355 rect.dat
4 16 56 9.5 -9.5 44 9.5 -9.5 44 14.4 -7.5 56 14.4 -7.5
1 16 50 17.7855 -3.4145 6 0 0 0 -1 -0.6145 0 0 -1.4145 rect3.dat
1 16 50 15.7855 -4.829 0 0 6 1.3855 0 0 0 1 0 rect2p.dat
5 24 56 9.5 -9.5 44 9.5 -9.5 44 3 -9.5 44 14.4 -7.5
4 16 44 16 0 44 15.6023 -2 44 17.171 -4.829 44 32 -16
4 16 44 32 -16 44 17.171 -4.829 44 14.4 -4.829 44 3 -9.5
3 16 44 3 -9.5 44 3 -16 44 32 -16
4 16 56 17.171 -4.829 56 15.6023 -2 56 16 0 56 32 -16
4 16 56 14.4 -4.829 56 17.171 -4.829 56 32 -16 56 3 -9.5
3 16 56 3 -16 56 3 -9.5 56 32 -16
1 16 50 17.5 -16 0 0 -6 14.5 0 0 0 -1 0 rect2p.dat
3 16 56 16 0 56 32 16 56 32 -16
3 16 44 16 0 44 32 -16 44 32 16
1 16 44 31.8 -5 0 0 1 0 17.4 0 -1 0 0 ridgea.dat
2 24 45 14.4 -6.5 44 14.4 -6.5
2 24 44 17.7484 -3.5 45 17.7484 -3.5
2 24 46.5 14.4 -5 46.329 14.4 -4.829
2 24 46.329 17.171 -4.829 46.329 14.4 -4.829
2 24 46.329 17.171 -4.829 45 17.7484 -3.5
2 24 45 14.4 -6.5 46.5 14.4 -5
1 16 44 31.8 5 0 0 1 0 17.4 0 1 0 0 ridgea.dat
2 24 44 14.4 6.5 45 14.4 6.5
2 24 45 17.7484 3.5 44 17.7484 3.5
2 24 46.329 14.4 4.829 46.5 14.4 5
2 24 46.329 14.4 4.829 46.329 17.171 4.829
2 24 45 17.7484 3.5 46.329 17.171 4.829
2 24 46.5 14.4 5 45 14.4 6.5
1 16 56 31.8 -5 0 0 -1 0 17.4 0 -1 0 0 ridgea.dat
2 24 56 14.4 -6.5 55 14.4 -6.5
2 24 55 17.7484 -3.5 56 17.7484 -3.5
2 24 53.671 14.4 -4.829 53.5 14.4 -5
2 24 53.671 14.4 -4.829 53.671 17.171 -4.829
2 24 55 17.7484 -3.5 53.671 17.171 -4.829
2 24 53.5 14.4 -5 55 14.4 -6.5
1 16 56 31.8 5 0 0 -1 0 17.4 0 1 0 0 ridgea.dat
2 24 55 14.4 6.5 56 14.4 6.5
2 24 56 17.7484 3.5 55 17.7484 3.5
2 24 53.5 14.4 5 53.671 14.4 4.829
2 24 53.671 17.171 4.829 53.671 14.4 4.829
2 24 53.671 17.171 4.829 55 17.7484 3.5
2 24 55 14.4 6.5 53.5 14.4 5

Status:

Official

This part has the following warnings

5 decimal places exceeds the recommendation for Subpart in the library specification

Line text: 1 16 50 17.00115 2 -6 0 0 0 0 1.39885 0 1 0 rect3.dat
5 decimal places exceeds the recommendation for Subpart in the library specification

Line text: 1 16 50 17.00115 -2 6 0 0 0 0 1.39885 0 -1 0 rect3.dat
