File Detail parts/s/3487s01.dat

Official File parts/s/3487s01.dat

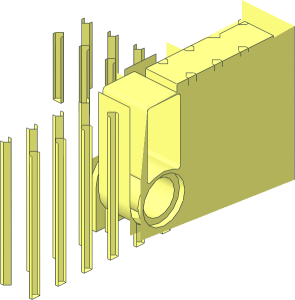

~Brick 8 x 10 x 2 with 6 x 10 Cutout and 8 Pin Holes on Sides Quarter

File Header:

0 ~Brick  8 x 10 x  2 with  6 x 10 Cutout and  8 Pin Holes on Sides Quarter
0 Name: s\3487s01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Subpart UPDATE 2024-06
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-07-29 [OrionP] Official Update 2024-06

Show contents
