Unofficial File parts/3982.dat
Part Attributes:
File Header:

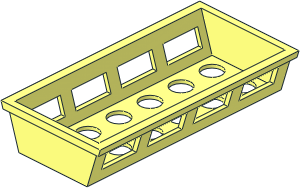

0 Duplo Wagon Body 4 x 6 with Sloped Sides
0 Name: 3982.dat
0 Author: Niels Karsdorp [nielsk]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Vehicle
0 !KEYWORDS Brickowl 724433
0 !HISTORY 2026-03-27 [Blechtaler] subfiled in half
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\3982s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\3982s01.dat
1 16 0 0 0 44 0 0 0 1 0 0 0 125 recte4.dat
1 16 0 -4 0 40 0 0 0 1 0 0 0 120 recte4.dat
1 16 0 -48 0 54 0 0 0 1 0 0 0 120 recte4.dat
1 16 0 -48 0 64 0 0 0 1 0 0 0 128 recte4.dat
1 16 0 -40 0 61.455 0 0 0 1 0 0 0 128 recte4.dat
1 16 0 -40 0 56.727 0 0 0 1 0 0 0 125 recte4.dat
Status:
Needs 2 More Votes (N)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
Current Votes:
None
Official parents and subparts
Part Events:
2023-04-23 21:08:17
Forgot to fix color
2023-04-23 21:25:19
Does this count as t-junk or is it ok?
Welcome back indeed ;)
The quad at line 229
4 10 43.182 -14 -7 49.545 -34 -7 54.818 -34 -7 49.864 -14 -7
has a misplaced vertex and bleeds on outer side.
The quad at line 229
4 10 43.182 -14 -7 49.545 -34 -7 54.818 -34 -7 49.864 -14 -7
has a misplaced vertex and bleeds on outer side.
Thanks for quick review and spotting this error.
Incorrect quad fixed.
Incorrect quad fixed.
Forgot to fix color again....
Works for me. Could use 4-4cylo instead of 4-4cyli + 2x 4-4edge, but that's minor!
Used 4-4cylo (didn't exist yet when I started this part back in 2008) and replaced T-junk with triangles
2023-05-18 07:44:35
Personally I don't mind those T-junctions but why didn't you also remove the T-junction around the ndis on the bottom, top and underside surface?
2023-05-18 09:36:33
if the file gets too big, it could be halved/quartered...
* line 7 : Use counter-clockwise winding (CCW) instead of CW.
* Gap:
2 4 -61.454 -40 128 -56.727 -40 125
2 4 -56.727 -40 125 -61.455 -40 128
* Should be split in half and subbed
* Lot of T-junk
* 0 at the end of the file
* Rotated/slanted rects
* Gap:
2 4 -61.454 -40 128 -56.727 -40 125
2 4 -56.727 -40 125 -61.455 -40 128
* Should be split in half and subbed
* Lot of T-junk
* 0 at the end of the file
* Rotated/slanted rects
2026-03-26 23:59:06
could even use slanted+inverted box4 prims for the side
made CCW, cut in half, solved the t-juncs (no slanted rects, only slanted boxes)
Header Edits
description:
Duplo Wagon Body 4 x 6 with Sloped Sides
to
Duplo Wagon Body 4 x 6 with Sloped Sides
Added spaces before numbers in header
Creative Commons Attribution License information
This part is copyright ©
Niels Karsdorp
Licensed under
CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Rene Rechthaler
