Official File parts/57881.dat
Part Attributes:
File Header:

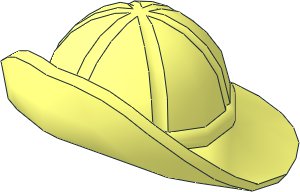

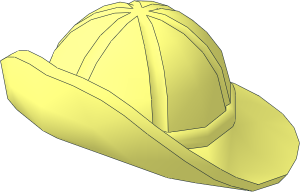

0 Minifig Hat Rain
0 Name: 57881.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Part UPDATE 2024-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Minifig Headwear
0 !KEYWORDS Lighthouse Keeper, set 70431, sou'wester, southwester
0 !HISTORY 2023-04-26 {LEGO/Unity Microgame} Original part shape
0 !HISTORY 2023-05-02 [MagFors] File preparation for LDraw Parts Tracker
0 !HISTORY 2023-05-06 [MagFors] Added many missing details
0 !HISTORY 2024-04-28 [OrionP] Official Update 2024-03
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\57881s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\57881s01.dat
1 16 0 -4 0 1 0 0 0 -1 0 0 0 1 stud16od.dat
1 16 0 -6 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 0 -6 0 6 0 0 0 -1 0 0 0 6 4-4disc.dat
0 BFC INVERTNEXT
1 16 0 -6 0 6 0 0 0 2 0 0 0 6 4-4cyli.dat
5 24 0 3 13 0 12.437 13.3289 -4.9751 3 12.0107 4.9751 3 12.0107
5 24 0 3 -13 0 6.0623 -13.2989 4.9751 3 -12.0107 -4.9752 3 -12.0106
5 24 0 -0.6875 12.1807 0 4.8019 13.8533 1.2978 4.9466 14.2194 -1.1722 4.9281 14.2529
5 24 0 -7.6713 -7.3694 0 -5.1784 -10.4146 -1.1748 -8.0449 -7.6661 1.2231 -8.0444 -7.6532
5 24 0 -1.8579 -12.9472 0 -5.1784 -10.4146 1.2968 -1.9348 -13.6734 -1.2867 -1.9383 -13.6741
5 24 0 -6.9863 7.1385 0 -4.2175 10.029 1.1678 -4.4449 10.5469 -1.2837 -4.4463 10.5159
5 24 0 -6.9863 7.1385 0 -8.8035 3.7124 1.02 -9.265 3.745 -1.2037 -7.3554 7.4051
5 24 0 -7.6713 -7.3694 0 -9.1555 -3.8047 1.2231 -8.0444 -7.6532 -1.1748 -8.0449 -7.6661
5 24 0 -8.8035 3.7124 0 -9.5097 1.4118 -0.7272 -9.7148 1.2299 0.7272 -9.7148 1.2299
5 24 0 -4.2175 10.029 0 -0.6875 12.1807 1.2485 -0.7347 12.8563 -1.2968 -0.7352 12.8434
5 24 0 -9.6892 -1.4612 0 -9.1555 -3.8047 -0.7272 -9.8716 -1.2798 0.7272 -9.8716 -1.2798
5 24 0 -1.8579 -12.9472 0 1.2167 -16.3187 -1.3168 1.2217 -16.2476 1.3168 1.2217 -16.2476
5 24 0 -7.08 -18.38 0 1.2167 -16.3187 1.3168 1.2217 -16.2476 -1.3168 1.2217 -16.2476
5 24 0 5.68 -18.42 0 3.01 -21.61 -6.66 6.61 -15.99 6.66 6.61 -15.99
5 24 0 -1.5 -22 0 3.01 -21.61 -9.16 -0.46 -19.67 9.16 -0.48 -19.66
5 24 0 -9.5097 1.4118 0 -9.6724 -0.0142 -0.7272 -9.7148 1.2299 0.7272 -9.7148 1.2299
5 24 0 4.8019 13.8533 0 5.11 14.9241 -1.1722 4.9281 14.2529 1.2978 4.9466 14.2194
5 24 0 11.8 21.02 0 16.3759 26.5818 -6.6499 16.3 25.7374 6.71 16.3 25.13
5 24 0 6.04 15.2479 0 7.01 15.3385 -8.03 6.31 13.1277 8.0742 7.45 13.2028
5 24 0 7.97 14.91 0 11.8 21.02 -4.57 12.15 19.49 7.86 8.48 12.83
5 24 0 7.01 15.3385 0 7.97 14.91 -7.86 8.3 12.83 7.86 8.48 12.83
5 24 0 16.3759 26.5818 0 17.5809 25.2486 -6.6499 16.3 25.7374 6.71 16.3 25.13
5 24 0 12.54 19.52 0 17.5809 25.2486 5.71 17.4 24.04 -5.71 17.4 24.04
5 24 0 12.437 13.3289 0 12.54 19.52 5.101 12.8367 12.3146 -5.101 12.8367 12.3146
5 24 0 5.11 14.9241 0 6.04 15.2479 -7.7936 5.35 12.8635 8.03 6.44 13.1277
5 24 0 5.68 -18.42 0 6.0623 -13.2989 -6.66 6.61 -15.99 5.101 6.7238 -12.3146
5 24 0 -9.6892 -1.4612 0 -9.6724 -0.0142 -0.7272 -9.8716 -1.2798 0.7272 -9.8716 -1.2798
5 24 0 -1.5 -22 0 -6.83 -20.88 -4.82 -6.34 -19.7 4.82 -6.34 -19.7
5 24 0 -6.83 -20.88 0 -7.08 -18.38 4.535 -6.69 -17.275 -4.535 -6.69 -17.275
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2023-05-02 17:30:40
2023-05-02 17:34:59
isnt this part symmetrical?
2023-05-02 21:41:01
Left and right side mesh is not the same. But it might be? No good images to look at.
I don't have the part.
I don't have the part.
2023-05-02 21:54:43
I have got the part, and I finally found it also...
The part is symmetric.
The groves on the hat are deeper and I would make the centre line a cond line and the sides as edges.
The part is symmetric.
The groves on the hat are deeper and I would make the centre line a cond line and the sides as edges.
So, is this better?
Anyone who have seen the mesh I started from know how bad it was. I appreciate any help I can get.
I still have to make halves, and replace the stud. Should be divided.
Which half is the better one?
Anyone who have seen the mesh I started from know how bad it was. I appreciate any help I can get.
I still have to make halves, and replace the stud. Should be divided.
Which half is the better one?
2023-05-03 21:40:38
The mesh from was really bad indeed
but, wow, you pretty much nailed it, the top groves look very good now.
I would adapt the triangles as such:
Back side:
3 13 19.23 12.65 3.31 13.62 8.43 7.07 15.73 7.95 -.8
3 13 15.48 13.36 9.7 13.62 8.43 7.07 19.23 12.65 3.31
3 13 15.48 13.36 9.7 10.64 12.87 16.62 7.86 8.48 12.83
3 13 7.86 8.48 12.83 13.62 8.43 7.07 15.48 13.36 9.7
3 13 7.86 8.48 12.83 10.64 12.87 16.62 4.57 12.15 18.65
3 13 4.57 12.15 18.65 0 11.8 21.02 0 7.97 14.91
3 13 4.57 12.15 18.65 0 7.97 14.91 7.86 8.48 12.83
Bottom Side:
3 11 17.71 11.71 -5.21 17.7 13.54 -1.8 22.07 12.08 -1.86
3 11 22.07 12.08 -1.86 21.58 9.87 -5.01 17.71 11.71 -5.21
3 11 16.9 9.07 -10.82 12.63 10.12 -9.42 17.71 11.71 -5.21
3 11 17.71 11.71 -5.21 12.63 10.12 -9.42 17.7 13.54 -1.8
3 11 16.9 9.07 -10.82 13.79 5.24 -15.67 9.33 7.68 -13.35
3 11 15.632 13.6062 -1.0428 17.7 13.54 -1.8 12.63 10.12 -9.42
3 11 9.33 7.68 -13.35 12.63 10.12 -9.42 16.9 9.07 -10.82
3 11 12.63 10.12 -9.42 9.4249 9.2667 -9.4249 10.3373 10.2607 -8.0596
3 11 9.33 7.68 -13.35 7.2943 7.4853 -10.8487 9.4249 9.2667 -9.4249
3 11 9.4249 9.2667 -9.4249 12.63 10.12 -9.42 9.33 7.68 -13.35
3 11 12.63 10.12 -9.42 12.3146 11.8235 -5.101 15.632 13.6062 -1.0428
3 11 12.3146 11.8235 -5.101 12.63 10.12 -9.42 10.3373 10.2607 -8.0596
The front is a bit more pointed and has got a fold:
3 14 1.3168 1.2217 -16.2476 0 -7.08 -18.38 4.535 -6.69 -17.275
4 14 4.82 -6.34 -19.7 9.64 -5.05 -18.21 9.07 -5.5 -15.86 4.535 -6.69 -17.275
3 14 0 -7.08 -18.38 0 -6.83 -20.88 4.535 -6.69 -17.275
3 14 0 -6.83 -20.88 4.82 -6.34 -19.7 4.535 -6.69 -17.275
3 14 9.07 -5.5 -15.86 7.4902 1.56 -14.6233 4.535 -6.69 -17.275
3 14 .015 1.2167 -16.3187 0 -7.08 -18.38 1.3168 1.2217 -16.2476
3 14 9.07 -5.5 -15.86 9.64 -5.05 -18.21 12.55 -3.49 -14.4
3 14 9.64 -5.05 -18.21 13.02 -3.01 -16.57 12.55 -3.49 -14.4
3 14 12.55 -3.49 -14.4 7.4902 1.56 -14.6233 9.07 -5.5 -15.86
3 14 0 -6.83 -20.88 0 -1.5 -22 4.82 -6.34 -19.7
3 14 9.64 -5.05 -18.21 4.82 -6.34 -19.7 9.16 -.48 -19.66
3 14 9.64 -5.05 -18.21 9.16 -.48 -19.66 13.02 -3.01 -16.57
2 4 0 -6.83 -20.88 0 -1.5 -22
I can send you pictures if you want
but, wow, you pretty much nailed it, the top groves look very good now.
I would adapt the triangles as such:
Back side:
3 13 19.23 12.65 3.31 13.62 8.43 7.07 15.73 7.95 -.8
3 13 15.48 13.36 9.7 13.62 8.43 7.07 19.23 12.65 3.31
3 13 15.48 13.36 9.7 10.64 12.87 16.62 7.86 8.48 12.83
3 13 7.86 8.48 12.83 13.62 8.43 7.07 15.48 13.36 9.7
3 13 7.86 8.48 12.83 10.64 12.87 16.62 4.57 12.15 18.65
3 13 4.57 12.15 18.65 0 11.8 21.02 0 7.97 14.91
3 13 4.57 12.15 18.65 0 7.97 14.91 7.86 8.48 12.83
Bottom Side:
3 11 17.71 11.71 -5.21 17.7 13.54 -1.8 22.07 12.08 -1.86
3 11 22.07 12.08 -1.86 21.58 9.87 -5.01 17.71 11.71 -5.21
3 11 16.9 9.07 -10.82 12.63 10.12 -9.42 17.71 11.71 -5.21
3 11 17.71 11.71 -5.21 12.63 10.12 -9.42 17.7 13.54 -1.8
3 11 16.9 9.07 -10.82 13.79 5.24 -15.67 9.33 7.68 -13.35
3 11 15.632 13.6062 -1.0428 17.7 13.54 -1.8 12.63 10.12 -9.42
3 11 9.33 7.68 -13.35 12.63 10.12 -9.42 16.9 9.07 -10.82
3 11 12.63 10.12 -9.42 9.4249 9.2667 -9.4249 10.3373 10.2607 -8.0596
3 11 9.33 7.68 -13.35 7.2943 7.4853 -10.8487 9.4249 9.2667 -9.4249
3 11 9.4249 9.2667 -9.4249 12.63 10.12 -9.42 9.33 7.68 -13.35
3 11 12.63 10.12 -9.42 12.3146 11.8235 -5.101 15.632 13.6062 -1.0428
3 11 12.3146 11.8235 -5.101 12.63 10.12 -9.42 10.3373 10.2607 -8.0596
The front is a bit more pointed and has got a fold:
3 14 1.3168 1.2217 -16.2476 0 -7.08 -18.38 4.535 -6.69 -17.275
4 14 4.82 -6.34 -19.7 9.64 -5.05 -18.21 9.07 -5.5 -15.86 4.535 -6.69 -17.275
3 14 0 -7.08 -18.38 0 -6.83 -20.88 4.535 -6.69 -17.275
3 14 0 -6.83 -20.88 4.82 -6.34 -19.7 4.535 -6.69 -17.275
3 14 9.07 -5.5 -15.86 7.4902 1.56 -14.6233 4.535 -6.69 -17.275
3 14 .015 1.2167 -16.3187 0 -7.08 -18.38 1.3168 1.2217 -16.2476
3 14 9.07 -5.5 -15.86 9.64 -5.05 -18.21 12.55 -3.49 -14.4
3 14 9.64 -5.05 -18.21 13.02 -3.01 -16.57 12.55 -3.49 -14.4
3 14 12.55 -3.49 -14.4 7.4902 1.56 -14.6233 9.07 -5.5 -15.86
3 14 0 -6.83 -20.88 0 -1.5 -22 4.82 -6.34 -19.7
3 14 9.64 -5.05 -18.21 4.82 -6.34 -19.7 9.16 -.48 -19.66
3 14 9.64 -5.05 -18.21 9.16 -.48 -19.66 13.02 -3.01 -16.57
2 4 0 -6.83 -20.88 0 -1.5 -22
I can send you pictures if you want
2023-05-04 09:14:49
More often "sou'wester". See https://library.ldraw.org/official/15809
2023-05-04 18:03:06
Thank you for this.
But I don't understand the 7 pink triangles. 5 are identical to the old mesh.
But I don't understand the 7 pink triangles. 5 are identical to the old mesh.
Wanted to use another original author.
2023-05-06 21:13:15
I marked them pink because I flipped them back and forth, I then left some as is
2024-04-21 10:52:20
2024-04-22 19:09:57
2024-04-25 11:42:04
2024-04-28 11:50:17
Release 2024-03
