Official File parts/3535.dat
Part Attributes:
File Header:

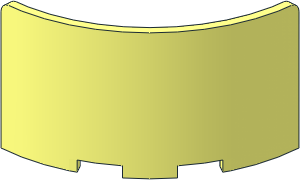

0 Panel 3 x 3 x 2 Quarter Round
0 Name: 3535.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2023-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Cylinder
0 !HISTORY 2023-05-08 {LEGO Instructions App} Original part shape
0 !HISTORY 2023-05-09 [Philo] File preparation for LDraw Parts Tracker
0 !HISTORY 2023-08-25 [OrionP] Official Update 2023-04
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\3535s01.dat
1 16 0 0 0 0 0 -1 0 1 0 -1 0 0 s\3535s01.dat
1 16 0 8 0 47.6012 0 -36.52569 0 -4 0 -36.52569 0 -47.6012 48\1-24cyli.dat
1 16 0 8 0 47.6012 0 -36.52569 0 -1 0 -36.52569 0 -47.6012 48\1-24edge.dat
1 16 0 8 0 47.6012 0 -36.52569 0 -1 0 -36.52569 0 -47.6012 48\1-24chrd.dat
1 16 0 4 0 31.73413 0 -24.35046 0 -1 0 -24.35046 0 -31.73413 48\1-24edge.dat
1 16 0 4 0 31.73413 0 -24.35046 0 -1 0 -24.35046 0 -31.73413 48\1-24tndis.dat
0 BFC INVERTNEXT
1 16 0 4 0 44.42779 0 -34.09064 0 4 0 -34.09064 0 -44.42779 48\1-24cylo.dat
1 16 0 4 0 44.42779 0 -34.09064 0 -1 0 -34.09064 0 -44.42779 48\1-24chrd.dat
1 16 0 8 0 44.42779 0 -34.09064 0 -1 0 -34.09064 0 -44.42779 48\1-24tndis.dat
3 16 34.0901 8 -44.4261 35.6051 8 -45.5886 36.5252 8 -47.5994
4 16 35.6051 8 -45.5886 44.4278 8 -34.0906 47.6012 8 -36.5257 36.5252 8 -47.5994
4 16 25.4322 4 -32.5633 31.7341 4 -24.3505 44.4278 4 -34.0906 34.0901 4 -44.4261
3 16 25.4322 4 -32.5633 34.0901 4 -44.4261 24.3501 4 -31.7329
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2023-05-09 19:07:42
2023-05-10 07:10:02
that looks really nice!
2023-05-18 13:26:05
2023-07-25 05:32:55
2023-08-15 16:10:30
2023-08-25 01:31:01
Release 2023-04
Creative Commons Attribution License information
This part is copyright © Philippe Hurbain
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Orion Pobursky,
3D View
