Unofficial File parts/6177969m.dat
Part Attributes:
File Header:

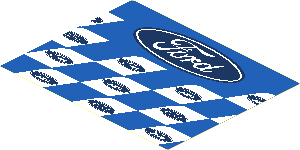

0 Sticker 4.6 x 5.8 with Ford Logos on Blue and White Background
0 Name: 6177969m.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS 1966, Bricklink 75881stk01, Ford, GT40, Rebrickable 30897, Set 75881
0 !KEYWORDS Speed Champions
Show contents
0 // Stickerback
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\stickerback046x058.dat
0 // Logo primitives
1 1 0 -.25 27 3.8 0 0 0 1 0 0 0 3.8 logo-ford-box-quarter.dat
1 1 0 -.25 27 -3.8 0 0 0 1 0 0 0 3.8 logo-ford-box-quarter.dat
1 272 0 -.25 27 3.8 0 0 0 1 0 0 0 3.8 logo-ford-oval.dat
1 15 0 -.25 27 3.8 0 0 0 1 0 0 0 3.8 logo-ford-oval-text.dat
1 1 0 -.25 27 -3.8 0 0 0 1 0 0 0 -3.8 logo-ford-box-quarter.dat
1 1 0 -.25 27 3.8 0 0 0 1 0 0 0 -3.8 logo-ford-box-quarter.dat
0 // Subparts
1 16 -61.55 -.25 19.3004 1 0 0 0 1 0 0 0 1 s\6177969ms03.dat
1 16 57.25 -.25 19.3004 1 0 0 0 1 0 0 0 1 s\6177969ms04.dat
1 16 -52.45 -.25 -.0996 1 0 0 0 1 0 0 0 1 s\6177969ms05.dat
1 16 -12.85 -.25 -.0996 1 0 0 0 1 0 0 0 1 s\6177969ms01.dat
1 16 26.75 -.25 -.0996 1 0 0 0 1 0 0 0 1 s\6177969ms01.dat
1 16 -43.35 -.25 -19.4996 1 0 0 0 1 0 0 0 1 s\6177969ms06.dat
1 16 -3.75 -.25 -19.4996 1 0 0 0 1 0 0 0 1 s\6177969ms01.dat
1 16 35.85 -.25 -19.4996 1 0 0 0 1 0 0 0 1 s\6177969ms01.dat
1 16 -34.25 -.25 -38.8996 1 0 0 0 1 0 0 0 1 s\6177969ms02.dat
1 16 5.35 -.25 -38.8996 1 0 0 0 1 0 0 0 1 s\6177969ms02.dat
1 16 44.95 -.25 -38.8996 1 0 0 0 1 0 0 0 1 s\6177969ms07.dat
0 // Primitives
1 1 -56.5 -.25 44.5 -1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
1 1 56.5 -.25 44.5 1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
1 1 -56.5 -.25 -44.5 -1.5 0 0 0 1 0 0 0 -1.5 1-4chrd.dat
1 1 56.5 -.25 -44.5 1.5 0 0 0 1 0 0 0 -1.5 1-4chrd.dat
0 // Top face
0 // Blue face
4 1 -36.1 -.25 40.68 0 -.25 40.68 -56.5 -.25 46 -58 -.25 44.5
4 1 -36.1 -.25 40.68 -58 -.25 44.5 -58 -.25 29.0004 -46.3 -.25 29.0004
4 1 -36.1 -.25 40.68 -46.3 -.25 29.0004 -57 -.25 9.6004 -36.1 -.25 27
3 1 0 -.25 40.68 56.5 -.25 46 -56.5 -.25 46
4 1 36.1 -.25 40.68 58 -.25 44.5 56.5 -.25 46 0 -.25 40.68
4 1 36.1 -.25 40.68 52.7 -.25 29.0004 58 -.25 29.0004 58 -.25 44.5
4 1 36.1 -.25 40.68 36.1 -.25 27 50.025 -.25 24.1504 52.7 -.25 29.0004
4 1 -36.1 -.25 13.32 -36.1 -.25 27 -57 -.25 9.6004 -52.9875 -.25 9.6004
3 1 -36.1 -.25 13.32 -52.9875 -.25 9.6004 -37.2 -.25 9.6004
4 1 -36.1 -.25 13.32 -37.2 -.25 9.6004 -20.075 -.25 4.7504 -17.4 -.25 9.6004
3 1 -36.1 -.25 13.32 -17.4 -.25 9.6004 -13.3875 -.25 9.6004
4 1 -36.1 -.25 13.32 -13.3875 -.25 9.6004 2.4 -.25 9.6004 0 -.25 13.32
4 1 36.1 -.25 13.32 42 -.25 9.6004 50.025 -.25 24.1504 36.1 -.25 27
3 1 36.1 -.25 13.32 26.2125 -.25 9.6004 42 -.25 9.6004
3 1 36.1 -.25 13.32 22.2 -.25 9.6004 26.2125 -.25 9.6004
4 1 36.1 -.25 13.32 0 -.25 13.32 2.4 -.25 9.6004 22.2 -.25 9.6004
4 1 -37.2 -.25 9.6004 -43.8875 -.25 -9.7996 -28.1 -.25 -9.7996 -20.075 -.25 4.7504
3 1 2.4 -.25 9.6004 19.525 -.25 4.7504 22.2 -.25 9.6004
4 1 2.4 -.25 9.6004 -4.2875 -.25 -9.7996 11.5 -.25 -9.7996 19.525 -.25 4.7504
3 1 42 -.25 9.6004 58 -.25 2.7107 58 -.25 9.6004
4 1 42 -.25 9.6004 35.3125 -.25 -9.7996 51.1 -.25 -9.7996 58 -.25 2.7107
3 1 -58 -.25 -9.7996 -50.575 -.25 -14.6496 -47.9 -.25 -9.7996
3 1 -58 -.25 -9.7996 -58 -.25 -28.1118 -50.575 -.25 -14.6496
3 1 -28.1 -.25 -9.7996 -10.975 -.25 -14.6496 -8.3 -.25 -9.7996
4 1 -28.1 -.25 -9.7996 -34.7875 -.25 -29.1996 -19 -.25 -29.1996 -10.975 -.25 -14.6496
3 1 11.5 -.25 -9.7996 28.625 -.25 -14.6496 31.3 -.25 -9.7996
4 1 11.5 -.25 -9.7996 4.8125 -.25 -29.1996 20.6 -.25 -29.1996 28.625 -.25 -14.6496
4 1 51.1 -.25 -9.7996 44.4125 -.25 -29.1996 58 -.25 -29.1996 58 -.25 -9.7996
3 1 -58 -.25 -29.1996 -41.475 -.25 -34.0496 -38.8 -.25 -29.1996
3 1 -58 -.25 -29.1996 -48.0662 -.25 -46 -41.475 -.25 -34.0496
4 1 -58 -.25 -29.1996 -58 -.25 -44.5 -56.5 -.25 -46 -48.0662 -.25 -46
3 1 -19 -.25 -29.1996 -1.875 -.25 -34.0496 .8 -.25 -29.1996
4 1 -19 -.25 -29.1996 -28.2662 -.25 -46 -8.4662 -.25 -46 -1.875 -.25 -34.0496
3 1 20.6 -.25 -29.1996 37.725 -.25 -34.0496 40.4 -.25 -29.1996
4 1 20.6 -.25 -29.1996 11.3338 -.25 -46 31.1338 -.25 -46 37.725 -.25 -34.0496
4 1 58 -.25 -33.1884 50.9338 -.25 -46 56.5 -.25 -46 58 -.25 -44.5
0 // White face
3 15 51.1 -.25 -9.7996 58 -.25 -9.7996 58 -.25 2.7107
Status:
Certified (ACCN)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfilesparts/s/6177969ms01.dat (Awaiting Admin Review)
parts/s/6177969ms02.dat (Awaiting Admin Review)
parts/s/6177969ms03.dat (Awaiting Admin Review)
parts/s/6177969ms04.dat (Awaiting Admin Review)
parts/s/6177969ms05.dat (Awaiting Admin Review)
parts/s/6177969ms06.dat (Awaiting Admin Review)
parts/s/6177969ms07.dat (Awaiting Admin Review)
parts/s/stickerback046x058.dat (Awaiting Admin Review)
parts/s/6177969ms08.dat (Awaiting Admin Review)
parts/s/6177969ms08.dat (Awaiting Admin Review)
parts/s/6177969ms08.dat (Awaiting Admin Review)
parts/s/6177969ms08.dat (Awaiting Admin Review)
Current Votes:
| User | Vote |
|---|---|
| Holly-Wood | Certify |
| GeraldLasser | Admin Review |
| RainbowDolphin | Certify |
Official parents and subparts
Part Events:
2023-05-22 23:11:54
2023-10-18 17:24:23
The files still needed to be updated because the orientation of the outerbox has changed.
2023-11-14 10:52:25
2025-07-29 22:07:10
2025-08-05 11:36:19
2025-08-05 12:02:47
2025-08-17 07:06:06
