Official File parts/2832.dat
Part Attributes:
File Header:

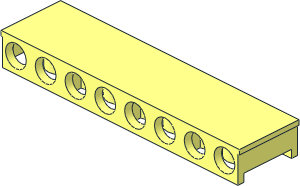

0 Tile 2 x 8 x 0.833 with Channel on Ends and Holes on Side (Needs Work)
0 Name: 2832.dat
0 Author: Tore Eriksson [Tore_Eriksson]
0 !LDRAW_ORG Part UPDATE 2020-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS dacta, set 9550, Typesetter
0 !HISTORY 2020-12-29 [PTadmin] Official Update 2020-03
0 !HISTORY 2021-04-09 [UR] Adjusted Origin
Show contents
0 // Needs Work: Complex Stud Holes on side simplified
1 16 0 -20 0 80 0 0 0 1 0 0 0 20 rect.dat
1 16 80 -18.5 0 0 -1 0 0 0 1.5 -20 0 0 rect3.dat
1 16 -80 -18.5 0 0 1 0 0 0 1.5 -20 0 0 rect3.dat
1 16 79.5 -17 0 0 0 -.5 0 -1 0 20 0 0 rect3.dat
1 16 -79.5 -17 0 0 0 .5 0 -1 0 20 0 0 rect3.dat
1 16 76 -10.5 0 0 1 0 0 0 5.5 16 0 0 rect3.dat
1 16 -76 -10.5 0 0 -1 0 0 0 5.5 16 0 0 rect3.dat
1 16 77.5 -5 0 0 0 1.5 0 -1 0 16 0 0 rect3.dat
1 16 -77.5 -5 0 0 0 -1.5 0 -1 0 16 0 0 rect3.dat
4 16 79 -17 20 79 -17 -20 79 -5 -16 79 -5 16
4 16 -79 -17 20 -79 -5 16 -79 -5 -16 -79 -17 -20
4 16 -79 0 -16 -79 -5 -16 -76 -5 -16 -76 -4 -16
4 16 79 0 -16 76 -4 -16 76 -5 -16 79 -5 -16
4 16 80 -20 20 80 -17 20 -80 -17 20 -80 -20 20
4 16 80 -20 -20 -80 -20 -20 -80 -17 -20 80 -17 -20
1 16 0 0 18 79 0 0 0 -1 0 0 0 -2 rect3.dat
1 16 0 0 -18 79 0 0 0 -1 0 0 0 2 rect3.dat
2 24 -79 -5 16 -79 0 16
2 24 79 -5 16 79 0 16
2 24 -79 -5 -16 -79 0 -16
2 24 79 -5 -16 79 0 -16
4 16 79 -17 20 79 -5 16 79 0 16 79 0 20
4 16 -79 -17 20 -79 0 20 -79 0 16 -79 -5 16
4 16 79 -17 -20 79 0 -20 79 0 -16 79 -5 -16
4 16 -79 -17 -20 -79 -5 -16 -79 0 -16 -79 0 -20
1 16 0 -8.5 20 79 0 0 0 0 8.5 0 -1 0 rect3.dat
2 24 -79 -17 -20 -79 0 -20
2 24 79 -17 -20 79 0 -20
2 24 -79 0 -20 79 0 -20
4 16 -76 -16 16 -76 -5 16 76 -5 16 76 -16 16
0 // stud hole (simplified)
1 16 -70 -10 -20 7 0 0 0 0 7 0 1 0 4-4edge.dat
1 16 -70 -10 -20 7 0 0 0 0 7 0 1 0 4-4ndis.dat
1 16 -70 -10 -16 6 0 0 0 0 6 0 1 0 4-4edge.dat
1 16 -70 -10 -16 6 0 0 0 0 6 0 -1 0 4-4ndis.dat
0 BFC INVERTNEXT
1 16 -70 -10 -20 1 0 0 0 0 1 0 4 0 4-4con6.dat
0 // stud hole (simplified)
1 16 -50 -10 -20 7 0 0 0 0 7 0 1 0 4-4edge.dat
1 16 -50 -10 -20 7 0 0 0 0 7 0 1 0 4-4ndis.dat
1 16 -50 -10 -16 6 0 0 0 0 6 0 1 0 4-4edge.dat
1 16 -50 -10 -16 6 0 0 0 0 6 0 -1 0 4-4ndis.dat
0 BFC INVERTNEXT
1 16 -50 -10 -20 1 0 0 0 0 1 0 4 0 4-4con6.dat
0 // stud hole (simplified)
1 16 -30 -10 -20 7 0 0 0 0 7 0 1 0 4-4edge.dat
1 16 -30 -10 -20 7 0 0 0 0 7 0 1 0 4-4ndis.dat
1 16 -30 -10 -16 6 0 0 0 0 6 0 1 0 4-4edge.dat
1 16 -30 -10 -16 6 0 0 0 0 6 0 -1 0 4-4ndis.dat
0 BFC INVERTNEXT
1 16 -30 -10 -20 1 0 0 0 0 1 0 4 0 4-4con6.dat
0 // stud hole (simplified)
1 16 -10 -10 -20 7 0 0 0 0 7 0 1 0 4-4edge.dat
1 16 -10 -10 -20 7 0 0 0 0 7 0 1 0 4-4ndis.dat
1 16 -10 -10 -16 6 0 0 0 0 6 0 1 0 4-4edge.dat
1 16 -10 -10 -16 6 0 0 0 0 6 0 -1 0 4-4ndis.dat
0 BFC INVERTNEXT
1 16 -10 -10 -20 1 0 0 0 0 1 0 4 0 4-4con6.dat
0 // stud hole (simplified)
1 16 10 -10 -20 7 0 0 0 0 7 0 1 0 4-4edge.dat
1 16 10 -10 -20 7 0 0 0 0 7 0 1 0 4-4ndis.dat
1 16 10 -10 -16 6 0 0 0 0 6 0 1 0 4-4edge.dat
1 16 10 -10 -16 6 0 0 0 0 6 0 -1 0 4-4ndis.dat
0 BFC INVERTNEXT
1 16 10 -10 -20 1 0 0 0 0 1 0 4 0 4-4con6.dat
0 // stud hole (simplified)
1 16 30 -10 -20 7 0 0 0 0 7 0 1 0 4-4edge.dat
1 16 30 -10 -20 7 0 0 0 0 7 0 1 0 4-4ndis.dat
1 16 30 -10 -16 6 0 0 0 0 6 0 1 0 4-4edge.dat
1 16 30 -10 -16 6 0 0 0 0 6 0 -1 0 4-4ndis.dat
0 BFC INVERTNEXT
1 16 30 -10 -20 1 0 0 0 0 1 0 4 0 4-4con6.dat
0 // stud hole (simplified)
1 16 50 -10 -20 7 0 0 0 0 7 0 1 0 4-4edge.dat
1 16 50 -10 -20 7 0 0 0 0 7 0 1 0 4-4ndis.dat
1 16 50 -10 -16 6 0 0 0 0 6 0 1 0 4-4edge.dat
1 16 50 -10 -16 6 0 0 0 0 6 0 -1 0 4-4ndis.dat
0 BFC INVERTNEXT
1 16 50 -10 -20 1 0 0 0 0 1 0 4 0 4-4con6.dat
0 // stud hole (simplified)
1 16 70 -10 -20 7 0 0 0 0 7 0 1 0 4-4edge.dat
1 16 70 -10 -20 7 0 0 0 0 7 0 1 0 4-4ndis.dat
1 16 70 -10 -16 6 0 0 0 0 6 0 1 0 4-4edge.dat
1 16 70 -10 -16 6 0 0 0 0 6 0 -1 0 4-4ndis.dat
0 BFC INVERTNEXT
1 16 70 -10 -20 1 0 0 0 0 1 0 4 0 4-4con6.dat
4 16 -63 -17 -20 -63 -3 -20 -57 -3 -20 -57 -17 -20
4 16 -64 -16 -16 -56 -16 -16 -56 -4 -16 -64 -4 -16
4 16 -43 -17 -20 -43 -3 -20 -37 -3 -20 -37 -17 -20
4 16 -44 -16 -16 -36 -16 -16 -36 -4 -16 -44 -4 -16
4 16 -23 -17 -20 -23 -3 -20 -17 -3 -20 -17 -17 -20
4 16 -24 -16 -16 -16 -16 -16 -16 -4 -16 -24 -4 -16
4 16 -3 -17 -20 -3 -3 -20 3 -3 -20 3 -17 -20
4 16 -4 -16 -16 4 -16 -16 4 -4 -16 -4 -4 -16
4 16 17 -17 -20 17 -3 -20 23 -3 -20 23 -17 -20
4 16 16 -16 -16 24 -16 -16 24 -4 -16 16 -4 -16
4 16 37 -17 -20 37 -3 -20 43 -3 -20 43 -17 -20
4 16 36 -16 -16 44 -16 -16 44 -4 -16 36 -4 -16
4 16 57 -17 -20 57 -3 -20 63 -3 -20 63 -17 -20
4 16 56 -16 -16 64 -16 -16 64 -4 -16 56 -4 -16
4 16 -79 -17 -20 -79 0 -20 -77 -3 -20 -77 -17 -20
4 16 79 -17 -20 77 -17 -20 77 -3 -20 79 0 -20
4 16 -79 0 -16 -76 -4 -16 76 -4 -16 79 0 -16
4 16 77 -3 -20 -77 -3 -20 -79 0 -20 79 0 -20
1 16 0 -16 0 76 0 0 0 -1 0 0 0 16 rect.dat
1 16 -60 -16 0 1 0 0 0 -3.9375 0 0 0 1 stud4.dat
1 16 -40 -16 0 0 0 1 0 -3.9375 0 -1 0 0 stud4f2s.dat
1 16 -40 -16 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 -41.5 -8.125 12 0 1 0 -7.875 0 0 0 0 4 rect3.dat
1 16 -41.5 -8.125 -12 0 1 0 -7.875 0 0 0 0 -4 rect3.dat
1 16 -38.5 -8.125 12 0 -1 0 -7.875 0 0 0 0 4 rect3.dat
1 16 -38.5 -8.125 -12 0 -1 0 -7.875 0 0 0 0 -4 rect3.dat
4 16 -41.5 -.25 8 -41.5 -.25 16 -38.5 -.25 16 -38.5 -.25 8
4 16 -41.5 -.25 -8 -38.5 -.25 -8 -38.5 -.25 -16 -41.5 -.25 -16
2 24 -41.5 -.25 16 -38.5 -.25 16
2 24 -41.5 -.25 -16 -38.5 -.25 -16
1 16 -20 -16 0 1 0 0 0 -3.9375 0 0 0 1 stud4.dat
1 16 0 -16 0 0 0 1 0 -3.9375 0 -1 0 0 stud4f2s.dat
1 16 0 -16 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 -1.5 -8.125 12 0 1 0 -7.875 0 0 0 0 4 rect3.dat
1 16 -1.5 -8.125 -12 0 1 0 -7.875 0 0 0 0 -4 rect3.dat
1 16 1.5 -8.125 12 0 -1 0 -7.875 0 0 0 0 4 rect3.dat
1 16 1.5 -8.125 -12 0 -1 0 -7.875 0 0 0 0 -4 rect3.dat
4 16 -1.5 -.25 8 -1.5 -.25 16 1.5 -.25 16 1.5 -.25 8
4 16 -1.5 -.25 -8 1.5 -.25 -8 1.5 -.25 -16 -1.5 -.25 -16
2 24 -1.5 -.25 16 1.5 -.25 16
2 24 -1.5 -.25 -16 1.5 -.25 -16
1 16 20 -16 0 1 0 0 0 -3.9375 0 0 0 1 stud4.dat
1 16 40 -16 0 0 0 1 0 -3.9375 0 -1 0 0 stud4f2s.dat
1 16 40 -16 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 38.5 -8.125 12 0 1 0 -7.875 0 0 0 0 4 rect3.dat
1 16 38.5 -8.125 -12 0 1 0 -7.875 0 0 0 0 -4 rect3.dat
1 16 41.5 -8.125 12 0 -1 0 -7.875 0 0 0 0 4 rect3.dat
1 16 41.5 -8.125 -12 0 -1 0 -7.875 0 0 0 0 -4 rect3.dat
4 16 38.5 -.25 8 38.5 -.25 16 41.5 -.25 16 41.5 -.25 8
4 16 38.5 -.25 -8 41.5 -.25 -8 41.5 -.25 -16 38.5 -.25 -16
2 24 38.5 -.25 16 41.5 -.25 16
2 24 38.5 -.25 -16 41.5 -.25 -16
1 16 60 -16 0 1 0 0 0 -3.9375 0 0 0 1 stud4.dat
4 16 -79 -5 16 -79 0 16 79 0 16 79 -5 16
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
None
Creative Commons Attribution License information
This part is copyright © Tore Eriksson
Licensed under CC BY 4.0
