Official File parts/28327.dat
Part Attributes:
File Header:

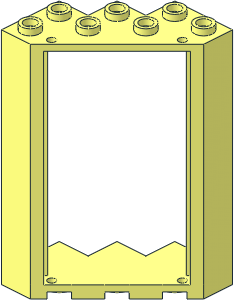

0 Door Frame 4 x 4 x 6 Corner
0 Name: 28327.dat
0 Author: Bjoern Sigve Storesund [Storesund]
0 !LDRAW_ORG Part UPDATE 2019-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2019-09-09 [PTadmin] Official Update 2019-02
