File Detail parts/2847.dat

Download Download zip file View patterns/composites/shortcuts

Official File parts/2847.dat

Part Attributes:

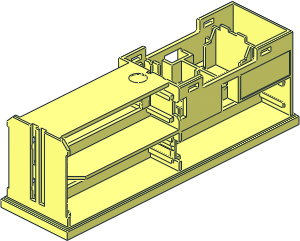

Electric 9V Battery Box 4 x 14 x 4 Bottom

File Header:

0 Electric 9V Battery Box  4 x 14 x  4 Bottom
0 Name: 2847.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2024-08
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-07-30 [GeraldLasser] complete re-write, Original by [marckl]
0 !HISTORY 2024-09-30 [OrionP] Official Update 2024-08
