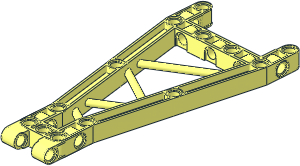

Technic Beam 16 x 7 Triangular with Diagonal Bars

File Header:

0 Technic Beam 16 x  7 Triangular with Diagonal Bars
0 Name: 79768.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2025-07
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS A-frame, Crane, pillar, support

0 !HISTORY 2023-11-19 [OrionP] Official Update 2023-06
0 !HISTORY 2025-07-27 [OrionP] Minor header edits
0 !HISTORY 2025-07-27 [OrionP] Official Update 2025-07

Show contents

1 16 0 0 0 -1 0 0 0 -1 0 0 0 1 s\79768s01.dat
1 16 0 0 0 1 0 0 0 -1 0 0 0 1 s\79768s01.dat

0 // Narrow Section
1 16 0 0 -140 1 0 0 0 -1 0 0 0 1 connhole.dat
1 16 0 -9.5 -150 0 0 -10 -.5 0 0 0 1 0 rect1.dat
3 16 10 -10 -150 0 -10 -149 -10 -10 -150
1 16 0 0 -150 0 0 10 9 0 0 0 1 0 rect2p.dat
1 16 0 9.5 -150 0 0 10 .5 0 0 0 1 0 rect1.dat
3 16 -10 10 -150 0 10 -149 10 10 -150
1 16 0 0 -130 0 0 -10 10 0 0 0 -1 0 rect.dat
3 16 0 -10 -131 10 -10 -130 -10 -10 -130
3 16 0 10 -131 -10 10 -130 10 10 -130

0 // Wide Section
1 16 0 0 110 1 0 0 0 0 1 0 -1 0 peghole.dat
0 BFC INVERTNEXT
1 16 0 0 92 6 0 0 0 0 6 0 16 0 4-4cyli.dat
1 16 0 0 90 1 0 0 0 0 -1 0 1 0 peghole5.dat
1 16 0 0 110 0 0 -8 -8 0 0 0 -1 0 4-4ndis.dat
1 16 0 0 90 8 0 0 0 0 -8 0 1 0 2-4ndis.dat
3 16 12.929 -10 90 0 -10 92.92893 -12.929 -10 90
3 16 0 -8 90 12.929 -10 90 -12.929 -10 90
3 16 0 10 96.173 8 10 92 -8 10 92
2 24 12.929 -10 90 -12.929 -10 90
3 16 12.929 -10 110 0 -8 110 -12.929 -10 110
3 16 0 -10 107.07107 12.929 -10 110 -12.929 -10 110
2 24 12.929 -10 110 -12.929 -10 110
2 24 -12.929 10 110 12.929 10 110
3 16 0 8 110 12.929 10 110 -12.929 10 110
3 16 12.929 10 110 0 10 107.071 -12.929 10 110

0 // Diagonal Struts
1 16 11.43205 0 -96.94635 0 1 .8281 -4 0 0 0 0 4.1406 4-4edge.dat
1 16 11.43205 0 -96.94635 0 -23.9765 .8281 -4 0 0 0 13.8249 4.1406 4-4cyli.dat
1 16 -12.54445 0 -83.121475 -.8281 -1.87245 0 0 0 -4 -4.1406 1.0991 0 4-4cyls.dat
1 16 -14.41695 0 -82.0224 0 -1 -1.0444 -4 0 0 0 0 5.2397 4-4edge.dat

1 16 -18.6523 0 -60.8459 0 -1 -.8281 -4 0 0 0 0 4.1406 4-4edge.dat
1 16 -18.6523 0 -60.8459 0 40.3021 -.8281 -4 0 0 0 23.2505 4.1406 4-4cyli.dat
1 16 21.6498 0 -37.5954 .8281 1.87245 0 0 0 -4 -4.1406 1.0991 0 4-4cyls.dat
1 16 23.5223 0 -36.4963 0 1 1.0444 -4 0 0 0 0 5.2397 4-4edge.dat

1 16 25.7832 0 -25.1925 0 1 .8281 -4 0 0 0 0 4.1406 4-4edge.dat
1 16 25.7832 0 -25.1925 0 -56.4257 .8281 -4 0 0 0 32.5773 4.1406 4-4cyli.dat
1 16 -30.6425 0 7.3759 -.8281 -1.87245 0 0 0 -4 -4.1406 1.0991 0 4-4cyls.dat
1 16 -32.515 0 8.466 0 -1 -1.0444 -4 0 0 0 0 5.2397 4-4edge.dat

1 16 -36.5557 0 28.6694 0 -1 -.8281 -4 0 0 0 0 4.1406 4-4edge.dat
1 16 -36.5557 0 28.6694 0 80.7833 -.8281 -4 0 0 0 46.6042 4.1406 4-4cyli.dat
1 16 44.2276 0 75.27355 .8281 1.87245 0 0 0 -4 -4.1406 1.0991 0 4-4cyls.dat
1 16 46.10005 0 76.37265 0 1 1.0444 -4 0 0 0 0 5.2397 4-4edge.dat
