Official File parts/2853.dat
Part Attributes:
File Header:

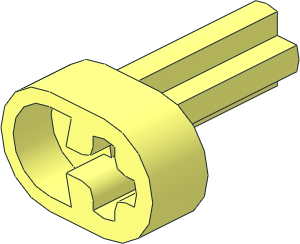

0 Technic Engine Crankshaft
0 Name: 2853.dat
0 Author: Guy Vivan [guyvivan]
0 !LDRAW_ORG Part UPDATE 2022-02
0 !LICENSE Licensed under CC BY 2.0 and CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2006-09-16 [guyvivan] CA-Rewrite
0 !HISTORY 2010-04-05 [PTadmin] Official Update 2010-01
0 !HISTORY 2022-01-02 [MagFors] Reshaped axlehole
0 !HISTORY 2022-03-06 [PTadmin] Official Update 2022-02
Show contents
1 16 -10 0 -9.8 1 0 0 0 0 -1 0 29.8 0 axlehol8.dat
1 16 -10 0 -9.8 1 0 0 0 0 -1 0 1 0 axlehol2.dat
1 16 -10 0 -9.8 1 0 0 0 0 -1 0 1 0 axlehol9.dat
1 16 -10 0 20 1 0 0 0 0 -1 0 1 0 axlehol2.dat
1 16 -10 0 20 1 0 0 0 0 -1 0 1 0 axlehol9.dat
1 16 -10 0 20 1 0 0 0 0 -1 0 -1 0 axleend.dat
1 16 0 0 -20 0 0 9 9 0 0 0 10.2 0 2-4cyli.dat
1 16 0 0 -20 0 0 9 9 0 0 0 1 0 2-4edge.dat
1 16 0 0 -9.8 0 0 9 9 0 0 0 1 0 2-4edge.dat
1 16 -10 0 -20 0 0 -9 -9 0 0 0 10.2 0 2-4cyli.dat
1 16 -10 0 -9.8 0 0 -9 9 0 0 0 -1 0 2-4chrd.dat
1 16 -10 0 -20 0 0 -9 9 0 0 0 1 0 2-4edge.dat
1 16 -10 0 -9.8 0 0 -9 9 0 0 0 1 0 2-4edge.dat
1 16 0 0 -20 0 0 -1 -1 0 0 0 10 0 axlehol4.dat
1 16 0 0 -20 0 0 3 -3 0 0 0 1 0 2-4ring2.dat
1 16 -10 0 -20 0 0 -2.25 2.25 0 0 0 1 0 2-4ring3.dat
1 16 -10 0 -20 0 0 -6.75 6.75 0 0 0 1 0 2-4edge.dat
1 16 -10 0 -13 0 0 -6.75 6.75 0 0 0 1 0 2-4edge.dat
1 16 -10 0 -13 0 0 -6.75 6.75 0 0 0 1 0 2-4chrd.dat
0 BFC INVERTNEXT
1 16 -10 0 -13 0 0 -6.75 6.75 0 0 0 -7 0 2-4cyli.dat
2 24 -6 -6.75 -20 -10 -6.75 -20
2 24 -5.6023 -2 -20 -7 -2 -20
2 24 -7 -2 -20 -6 -6.75 -20
2 24 -6 -6.75 -20 -6 -6.75 -13
2 24 -7 -2 -20 -7 -2 -13
4 16 -5.6023 -2 -13 -5.6023 -2 -20 -7 -2 -20 -7 -2 -13
4 16 -6 -6.75 -20 -6 -6.75 -13 -7 -2 -13 -7 -2 -20
4 16 -10 -6.75 -20 -10 -6.75 -13 -6 -6.75 -13 -6 -6.75 -20
2 24 -6 -6.75 -13 -10 -6.75 -13
2 24 -5.6023 -2 -13 -7 -2 -13
2 24 -7 -2 -13 -6 -6.75 -13
2 24 -6 6.75 -20 -10 6.75 -20
2 24 -5.6023 2 -20 -7 2 -20
2 24 -7 2 -20 -6 6.75 -20
2 24 -6 6.75 -20 -6 6.75 -13
2 24 -7 2 -20 -7 2 -13
4 16 -5.6023 2 -20 -5.6023 2 -13 -7 2 -13 -7 2 -20
4 16 -6 6.75 -13 -6 6.75 -20 -7 2 -20 -7 2 -13
4 16 -6 6.75 -20 -6 6.75 -13 -10 6.76 -13 -10 6.75 -20
2 24 -6 6.75 -13 -10 6.76 -13
2 24 -5.6023 2 -13 -7 2 -13
2 24 -7 2 -13 -6 6.75 -13
2 24 -6 0 -13 -5.6023 -2 -13
2 24 -5.6023 2 -13 -6 0 -13
4 16 -6 0 -13 -6 0 -10 -5.6023 -2 -10 -5.6023 -2 -13
4 16 -5.6023 2 -13 -5.6023 2 -10 -6 0 -10 -6 0 -13
5 24 -6 0 -10 -6 0 -13 -5.6023 2 -13 -5.6023 -2 -13
2 24 -6 0 -10 -5.6023 -2 -10
2 24 -5.6023 2 -10 -6 0 -10
4 16 -2 -4 -10 -6 0 -10 -5.6023 2 -10 -2 4 -10
3 16 -5.6023 -2 -10 -6 0 -10 -2 -4 -10
4 16 2 4 -10 5.6023 2 -10 5.6023 -2 -10 2 -4 -10
3 16 5.6023 2 -10 6 0 -10 5.6023 -2 -10
2 24 -5.6023 2 -10 -5.6023 2 -13
2 24 -5.6023 -2 -10 -5.6023 -2 -13
4 16 -7 2 -13 -7 -2 -13 -10 -6.75 -13 -10 6.76 -13
4 16 -5.6023 2 -13 -6 0 -13 -7 -2 -13 -7 2 -13
3 16 -6 0 -13 -5.6023 -2 -13 -7 -2 -13
3 16 -7 -2 -13 -6 -6.75 -13 -10 -6.75 -13
3 16 -6 6.75 -13 -7 2 -13 -10 6.76 -13
4 16 -5.5434 6 -20 -5.54328 2.2961 -20 -7 2 -20 -6 6.75 -20
3 16 -5.54328 2.2961 -20 -5.6023 2 -20 -7 2 -20
4 16 -5.5434 6 -20 -6 6.75 -20 0 9 -20 0 6 -20
4 16 -10 6.75 -20 -10 9 -20 0 9 -20 -6 6.75 -20
4 16 -5.5434 -6 -20 -6 -6.75 -20 -7 -2 -20 -5.5432 -2.2961 -20
3 16 -5.6023 -2 -20 -5.5432 -2.2961 -20 -7 -2 -20
4 16 -5.5434 -6 -20 0 -6 -20 0 -9 -20 -6 -6.75 -20
4 16 0 -9 -20 -10 -9 -20 -10 -6.75 -20 -6 -6.75 -20
1 16 0 0 -9.8 0 0 3 -3 0 0 0 -1 0 2-4ring2.dat
1 16 0 0 -9.8 6 0 0 0 0 6 0 -1 0 3-16chrd.dat
1 16 0 0 -9.8 6 0 0 0 0 -6 0 -1 0 3-16chrd.dat
1 16 0 0 -20 0 0 -6 6 0 0 0 1 0 3-16tndis.dat
1 16 0 0 -20 0 0 -6 -6 0 0 0 1 0 3-16tndis.dat
4 16 -10 9 -9.8 -10 -9 -9.8 -2 -5.6023 -9.8 -2 5.6023 -9.8
4 16 0 -6 -9.8 -2 -5.6023 -9.8 -10 -9 -9.8 0 -9 -9.8
4 16 -2 5.6023 -9.8 0 6 -9.8 0 9 -9.8 -10 9 -9.8
4 16 -10 9 -9.8 0 9 -9.8 0 9 -20 -10 9 -20
4 16 0 -9 -9.8 -10 -9 -9.8 -10 -9 -20 0 -9 -20
2 24 0 9 -9.8 -10 9 -9.8
2 24 0 9 -20 -10 9 -20
2 24 0 -9 -9.8 -10 -9 -9.8
2 24 0 -9 -20 -10 -9 -20
2 24 2 5.6023 -9.8 2 -5.6023 -9.8
4 16 2 5.6023 -9.8 2 -5.6023 -9.8 2.2962 -5.5434 -9.8 2.2962 5.5434 -9.8
3 16 2.2962 -5.5434 -9.8 6 0 -9.8 2.2962 5.5434 -9.8
2 24 -2 5.6023 -9.8 -2 -5.6023 -9.8
2 24 -2 4 -10 -2 -4 -10
2 24 2 4 -10 2 -4 -10
2 24 2 5.6023 -9.8 2 5.6023 -10
2 24 2 -5.6023 -9.8 2 -5.6023 -10
2 24 -2 5.6023 -9.8 -2 5.6023 -10
2 24 -2 -5.6023 -9.8 -2 -5.6023 -10
2 24 -2 -5.6023 -9.8 0 -6 -9.8
2 24 2 -5.6023 -9.8 0 -6 -9.8
2 24 -2 5.6023 -9.8 0 6 -9.8
2 24 2 5.6023 -9.8 0 6 -9.8
4 16 2 5.6023 -9.8 0 6 -9.8 0 6 -10 2 5.6023 -10
4 16 -2 5.6023 -10 0 6 -10 0 6 -9.8 -2 5.6023 -9.8
4 16 -2 -5.6023 -9.8 0 -6 -9.8 0 -6 -10 -2 -5.6023 -10
4 16 2 -5.6023 -10 0 -6 -10 0 -6 -9.8 2 -5.6023 -9.8
4 16 -2 5.6023 -9.8 -2 -5.6023 -9.8 -2 -5.6023 -10 -2 5.6023 -10
4 16 2 -5.6023 -9.8 2 5.6023 -9.8 2 5.6023 -10 2 -5.6023 -10
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
None
Creative Commons Attribution License information
This part is copyright © Guy Vivan
Licensed under CC BY 2.0
