File Detail parts/79435.dat

Official File parts/79435.dat

Part Attributes:

File Header:

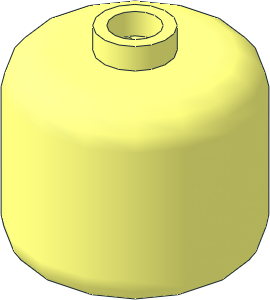

0 Minifig Head  2 x  2 x  1.333 Giant
0 Name: 79435.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2025-08
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS Bigfig, Dreamling

0 !HISTORY 2023-06-20 {LEGO Instructions App} Original part shape
0 !HISTORY 2023-06-20 [GeraldLasser] File preparation for LDraw Parts Tracker
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-10-23 [notmaster] subparted and removed overlapping prim
0 !HISTORY 2025-08-31 [OrionP] Official Update 2025-08

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\79435s01.dat
1 16 0 27 0 14 0 0 0 14 0 0 0 14 t01o3571.dat
1 16 0 6 0 19 0 0 0 21 0 0 0 19 4-4cyli.dat
1 16 0 6 0 12 0 0 0 -10.2863 0 0 0 12 t04o5833.dat
1 16 0 6 0 12 0 0 0 -10.2863 0 0 0 -12 t04o5833.dat
1 16 0 6 0 -12 0 0 0 -10.2863 0 0 0 12 t04o5833.dat
1 16 0 6 0 -12 0 0 0 -10.2863 0 0 0 -12 t04o5833.dat

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Gerald Lasser [GeraldLasser]

initially submitted the part.

2023-06-20 10:16:10

This misses the internal fillets.

Just a thought, should this go towards 48 divisions and inlined Tori on the outside in case of printed parts?
will look better

PS: why is the filstud2.dat rotated by 22.5 deg

Magnus Forsberg [MagFors]

made the following comment.

2023-06-20 16:13:48

Don't think we have thought much about the correctness of the position of the 3 ribbed stud filler either.
Or the position compaired to front or back side pattern.

Don't think it matters here either. Think it would be ok to have it offset.

Gerald Lasser [GeraldLasser]

made the following comment.

2023-06-20 17:54:11

The two heads I own , have their print exaclty along the centre line between the two small holes

Vincent Messenet [Cheenzo]

made the following comment.

2023-06-20 18:09:57

Being the author of prim filstud2 I can tell that the only reason it was designed like this was because it was based on 33492s01 which has the same rotation.

It is only used by 28621 for now and looking at patterns it looks like for that part the print is not necessarily along the centre line between the two small holes:
https://img.bricklink.com/ItemImage/PN/16/28621pb0020.png
https://img.bricklink.com/ItemImage/PN/16/28621pb0023.png

Mark Kennedy [mkennedy]

made the following comment.

2023-06-30 02:59:03

There is a cylinder inside that slightly overlaps the stud4.

Orion Pobursky [OrionP]

submitted a new version of the part.

2024-03-23 00:59:42

Update ring primitives via script. This will not reset the vote status of the part.

Jeff Jones [notmaster]

submitted a new version of the part.

2024-10-23 19:32:33

fixed overlapping cyli and y scaled prims
