Unofficial File parts/u9607.dat
Part Attributes:
File Header:

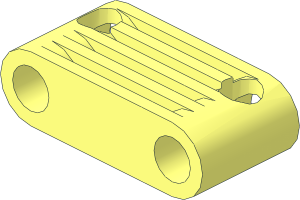

0 Electric Plug (Type 2) Twin Extra-Wide
0 Name: u9607.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\u9607s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\u9607s01.dat
1 16 0 -3.75 1.34 10 0 0 0 -3.75 0 0 0 1.34 box2-9p.dat
1 16 0 0 4.005 0 0 10 0 1 0 1.325 0 0 rect2p.dat
1 16 0 0 6.67 10 0 0 0 -7.5 0 0 0 1.34 box3u8p.dat
1 16 0 0 9.335 0 0 10 0 1 0 1.325 0 0 rect2p.dat
1 16 0 0 12 10 0 0 0 -7.5 0 0 0 1.34 box3u8p.dat
1 16 0 0 14.665 0 0 10 0 1 0 1.325 0 0 rect2p.dat
1 16 0 0 17.33 10 0 0 0 -7.5 0 0 0 1.34 box3u8p.dat
1 16 0 0 19.995 0 0 10 0 1 0 1.325 0 0 rect2p.dat
1 16 0 -3.75 22.66 10 0 0 0 -3.75 0 0 0 -1.34 box2-9p.dat
1 16 0 5.185 1.34 10.571 0 0 0 2.315 0 0 0 1.34 box2-9p.dat
1 16 0 2.87 4.005 0 0 10.571 0 -1 0 1.325 0 0 rect2p.dat
1 16 0 2.87 6.67 10.571 0 0 0 4.63 0 0 0 1.34 box3u8p.dat
1 16 0 2.87 9.335 0 0 10.571 0 -1 0 1.325 0 0 rect2p.dat
1 16 0 2.87 12 10.571 0 0 0 4.63 0 0 0 1.34 box3u8p.dat
1 16 0 2.87 14.665 0 0 10.571 0 -1 0 1.325 0 0 rect2p.dat
1 16 0 2.87 17.33 10.571 0 0 0 4.63 0 0 0 1.34 box3u8p.dat
1 16 0 2.87 19.995 0 0 10.571 0 -1 0 1.325 0 0 rect2p.dat
1 16 0 5.185 22.66 10.571 0 0 0 2.315 0 0 0 -1.34 box2-9p.dat
4 16 -10 -7.5 0 -10.571 7.5 0 10.57 7.5 0 10 -7.5 0
4 16 10 -7.5 24 10.57 7.5 24 -10.571 7.5 24 -10 -7.5 24
Status:
Needs 1 More Vote (CN)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
Current Votes:
| User | Vote |
|---|---|
| RainbowDolphin | Certify |
Official parents and subparts
Part Events:
Link to subpart was broken
2023-07-05 12:41:29
"Old" is not an acceptable description for a part. Be more specific, use "Type", number of pins, width, rips, material...
2023-07-05 16:23:08
I didnt have any ideas how to name/number this, but i'm open for suggestions.
It may look like a Type 3 but it is only used with the Type 1 and 2 plugs (there are versions with Type 1 or 2 Pins).
This is the wide version of these "old" plugs (like 2775 to 766 is this part to 567)
Do we also need the versions with cable stubs? If a cable has mixed ends, how does it get numbered/named?
It may look like a Type 3 but it is only used with the Type 1 and 2 plugs (there are versions with Type 1 or 2 Pins).
This is the wide version of these "old" plugs (like 2775 to 766 is this part to 567)
Do we also need the versions with cable stubs? If a cable has mixed ends, how does it get numbered/named?
Same with "wide". Not good.
Suggestion:
Electric Plug (Type 5) Twin Extra-Wide
and the assy shortcuts should contain a cable end, aand use "... with Cable End"
When in doubt, look at the descriptions we are already using.
Hold voting for renumbering.
Suggestion:
Electric Plug (Type 5) Twin Extra-Wide
and the assy shortcuts should contain a cable end, aand use "... with Cable End"
When in doubt, look at the descriptions we are already using.
Hold voting for renumbering.
How is this version related to this design?
http://www.peeron.com/inv/parts/x466
or this one:
http://www.peeron.com/inv/parts/x562c
http://www.peeron.com/inv/parts/x466
or this one:
http://www.peeron.com/inv/parts/x562c
2023-07-05 18:03:48
Is there a number or should a "u" number be assigned?
2023-07-05 18:19:04
yes, this part is the one linked with peeron x562c.
I did not find any number on it.
The Type 3 is very different (splits open).
I'm fine with assigning a u-number (the admins should just renumber and rename).
I did not find any number on it.
The Type 3 is very different (splits open).
I'm fine with assigning a u-number (the admins should just renumber and rename).
Isn't it the case that if we know a peeron number it should/could be selected?
2023-07-05 18:50:32
No. Peeron numbers have never been the basis for part numbers. I'll assign a "u" number.
"oldplugwide.dat" to "u9607.dat"
2023-07-05 19:20:13
2023-07-05 19:38:21
If a part has a unknown Peeron number, like here x562c, we usually select that, and name our part u562.
But u9607 work too.
But u9607 work too.
renamed
2023-07-06 16:04:26
Why is this empty part named "Type 2"?
Is "Type" related to the plug or the pin, in the Electric Plug family?
Type 1 is the hollow pin
Type 2 is the cross cut pin
but,
Type 3 is a plug, similar to u9607, but narrow
Type 4 is a set of plugs, single, twin and twin extra-wide
Is "Type" related to the plug or the pin, in the Electric Plug family?
Type 1 is the hollow pin
Type 2 is the cross cut pin
but,
Type 3 is a plug, similar to u9607, but narrow
Type 4 is a set of plugs, single, twin and twin extra-wide
2024-05-31 15:32:31
2025-08-09 18:50:22
* BL ref broken.
* Edger add these:
5 24 -20.682 -3.182 14.701 -20.37 -6.929 14.234 -21.196 -2.413 15.469 -20.328 -6.938 14.172
5 24 -14.318 -3.182 19.299 -14.63 -6.929 19.766 -14.672 -6.938 19.828 -13.804 -2.413 18.531
but just in one hole, so something is wrong
* Rects
* Edger add these:
5 24 -20.682 -3.182 14.701 -20.37 -6.929 14.234 -21.196 -2.413 15.469 -20.328 -6.938 14.172
5 24 -14.318 -3.182 19.299 -14.63 -6.929 19.766 -14.672 -6.938 19.828 -13.804 -2.413 18.531
but just in one hole, so something is wrong
* Rects
Header Edits
keywords:
12V, Bricklink bb0093, connector, Peeron x562c
to
what is with the rects? no slanted rects here, no mismatches...
removed keywords (this specific single part isnt inventoried anywhere)
2025-08-09 19:51:44
* The rect comment is FMEO
2025-08-09 20:04:19
FMEO? ForMyEyesOnly?
is it ok to remove the keywords completely?
is it ok to remove the keywords completely?
2025-11-14 16:39:22
bump (last part in a chain of fully certified parts)
