Unofficial File parts/s/u9602s01.dat
File Header:

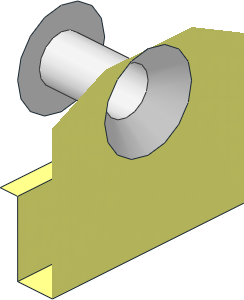

0 ~Electric Train 12V Transformer Type 1 Top Corner with Rivet
0 Name: s\u9602s01.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 16 140 178 114 0 -1 0 0 0 5 5 0 0 4-4ndis.dat
1 16 140 178 114 0 1 0 0 0 5 5 0 0 4-4edge.dat
0 BFC INVERTNEXT
1 494 140 178 114 0 -2.5 0 0 0 2.5 2.5 0 0 4-4con1.dat
0 BFC INVERTNEXT
1 494 137.5 178 114 0 -7.5 0 0 0 2.5 2.5 0 0 4-4cylo.dat
1 494 130 178 114 0 1 0 0 0 2.5 2.5 0 0 4-4ring1.dat
1 16 130 178 114 0 1 0 0 0 5 5 0 0 4-4edge.dat
0 BFC INVERTNEXT
1 16 135 188 114 0 1 0 0 0 -4 11 0 0 box2-5.dat
1 16 138 192 114 0 0 2 0 -1 0 11 0 0 rect3.dat
3 16 140 173 119 140 178 119 140 176 125
4 16 140 176 125 140 178 119 140 183 119 140 192 125
4 16 140 192 103 140 192 125 140 183 119 140 183 114
3 16 140 192 103 140 183 114 140 183 109
4 16 140 192 103 140 183 109 140 178 109 140 176 103
3 16 140 176 103 140 178 109 140 173 109
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
None
Official parents and subparts
Part Events:
2023-07-08 13:06:46
2024-01-06 14:43:42
"parts/s/740as02.dat" to "parts/s/u9602s01.dat"
fixed the origin
2025-08-26 06:35:53
* Rect (FMEO)
