Unofficial File parts/s/u9605s01.dat

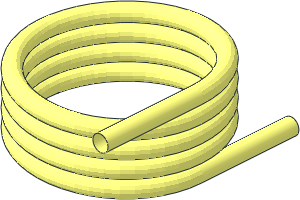

~Electric Train 12V Transformer Coiled Cable - Type 1
File Header:
0 ~Electric Train 12V Transformer Coiled Cable - Type 1 0 Name: s\u9605s01.dat 0 Author: Rene Rechthaler [Blechtaler] 0 !LDRAW_ORG Unofficial_Subpart 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW
Show contents
1 16 0 0 100 8 0 0 0 0 8 0 1 0 4-4edge.dat 1 16 0 0 0 8 0 0 0 0 8 0 100 0 4-4cyli.dat 1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\u9605s04.dat 1 16 -159.78 -8.375 0 -1 0 0 0 -1 0 0 0 1 s\u9605s04.dat 1 16 -159.78 -8.375 0 -1 0 0 0 1 0 0 0 -1 s\u9605s04.dat 1 16 0 -16.75 0 1 0 0 0 -1 0 0 0 -1 s\u9605s04.dat 1 16 0 -16.75 0 1 0 0 0 1 0 0 0 1 s\u9605s04.dat 1 16 -159.78 -25.075 0 -1 0 0 0 -1 0 0 0 1 s\u9605s04.dat 1 16 -159.78 -25.075 0 -1 0 0 0 1 0 0 0 -1 s\u9605s04.dat 1 16 0 -33.5 0 1 0 0 0 -1 0 0 0 -1 s\u9605s04.dat 1 16 0 -33.5 0 1 0 0 0 1 0 0 0 1 s\u9605s04.dat 1 16 -159.78 -41.875 0 -1 0 0 0 -1 0 0 0 1 s\u9605s04.dat 1 16 -159.78 -41.875 0 -1 0 0 0 1 0 0 0 -1 s\u9605s04.dat 1 16 0 -50.25 0 1 0 0 0 -1 0 0 0 -1 s\u9605s04.dat 1 16 0 -50.25 0 1 0 0 0 1 0 0 0 1 s\u9605s04.dat 1 16 -159.78 -58.625 0 -1 0 0 0 -1 0 0 0 1 s\u9605s04.dat 1 16 -159.78 -58.625 0 -1 0 0 0 1 0 0 0 -1 s\u9605s04.dat 1 16 0 -67 0 1 0 0 0 -1 0 0 0 -1 s\u9605s04.dat 1 16 0 -67 0 8 0 0 0 0 8 0 -100 0 4-4cyli.dat 1 16 0 -67 -100 8 0 0 0 0 8 0 1 0 4-4edge.dat
Status:
Not releaseable Needs More Votes (CN) Needs More Votes (CN)
This part has the following automated holds from the Parts Tracker
Current Votes:
User Vote
Holly-Wood Certify
Official parents and subparts
Part Events:
Rene Rechthaler [Blechtaler]
Part Header Editor
initially submitted the part.
2023-07-11 10:23:12
renumber/rename if needed
Magnus Forsberg [MagFors]
Part Library Admin
renamed the part.
2024-01-06 12:25:36
"parts/s/740as08.dat" to "parts/s/u9605s01.dat"
Willy Tschager [Holly-Wood]
Senior Part Reviewer
edited the part header.
2024-05-31 10:02:25
Header Edits

description:
~Electric Train 12V Transformer Type 1 Coiled Cable
to
~Electric Train 12V Transformer Type 1 Coiled Cable

Comment:
Added blank to description
Willy Tschager [Holly-Wood]
Senior Part Reviewer
posted a vote of Hold.
2024-05-31 10:09:30
* All the torus do not match:

2 4 -.4187 7.989 0 -.4187 -74.989 0

but I didn't try to find a solution.
Rene Rechthaler [Blechtaler]
Part Header Editor
made the following comment.
2024-10-25 14:36:55
is there a better way than rotated torii?
or should I use a straight cable? or a dotted stub cable?
Rene Rechthaler [Blechtaler]
Part Header Editor
made the following comment.
2025-01-13 23:27:50
would a full hi-res torus prim help? or would that be overkill by polygon count?
Rene Rechthaler [Blechtaler]
Part Header Editor
submitted a new version of the part.
2025-03-16 12:33:12
with new subpart, should be free of gaps now...
Willy Tschager [Holly-Wood]
Senior Part Reviewer
edited the part header.
2025-03-17 08:12:10
Header Edits

description:
~Electric Train 12V Transformer Type 1 Coiled Cable
to
~Electric Train 12V Transformer Coiled Cable - Type 1

Willy Tschager [Holly-Wood]
Senior Part Reviewer
posted a vote of Certify.
2025-03-17 08:13:19
