Unofficial File parts/s/u9615s01.dat
File Header:

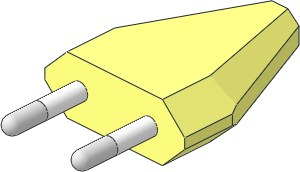

0 ~Electric Plug 220V European - Type 2
0 Name: s\u9615s01.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 15 22 0 0 5 0 0 0 0 5 0 -25 0 4-4cylo.dat
1 494 22 0 -25 5 0 0 0 0 5 0 -17.5 0 4-4cyli.dat
1 494 22 0 -42.5 5 0 0 0 0 5 0 -5 0 4-8sphe.dat
1 15 -22 0 0 5 0 0 0 0 5 0 -25 0 4-4cylo.dat
1 494 -22 0 -25 5 0 0 0 0 5 0 -17.5 0 4-4cyli.dat
1 494 -22 0 -42.5 5 0 0 0 0 5 0 -5 0 4-8sphe.dat
1 16 0 0 30 30 0 0 0 0 17 0 -30 0 box3u6a.dat
1 16 44 0 15 0 -1 0 0 0 3 15 0 0 rect.dat
4 16 30 -17 0 30 17 0 44 3 0 44 -3 0
1 16 37 -10 15 0 0 7 0 1 7 -15 0 0 rect1.dat
1 16 37 10 15 0 0 -7 0 -1 7 -15 0 0 rect1.dat
1 16 -44 0 15 0 1 0 0 0 3 15 0 0 rect.dat
4 16 -44 3 0 -30 17 0 -30 -17 0 -44 -3 0
1 16 -37 -10 15 0 0 7 0 1 -7 -15 0 0 rect1.dat
1 16 -37 10 15 0 0 -7 0 -1 -7 -15 0 0 rect1.dat
4 16 -30 17 30 -5 11 104 5 11 104 30 17 30
4 16 -5 11 104 -30 17 30 -42 5 34.625 -12 5 104
3 16 -30 17 30 -44 3 30 -42 5 34.625
1 16 -27 0 69.3125 0 1 15 -5 0 0 0 0 34.6875 rect3.dat
4 16 -44 3 30 -44 -3 30 -42 -5 34.625 -42 5 34.625
4 16 -42 -5 34.625 -30 -17 30 -5 -11 104 -12 -5 104
3 16 -44 -3 30 -30 -17 30 -42 -5 34.625
4 16 30 -17 30 5 -11 104 -5 -11 104 -30 -17 30
4 16 5 -11 104 30 -17 30 42 -5 34.625 12 -5 104
3 16 30 -17 30 44 -3 30 42 -5 34.625
1 16 27 0 69.3125 0 -1 -15 5 0 0 0 0 34.6875 rect3.dat
4 16 44 -3 30 44 3 30 42 5 34.625 42 -5 34.625
4 16 42 5 34.625 30 17 30 5 11 104 12 5 104
3 16 44 3 30 30 17 30 42 5 34.625
2 24 30 17 30 5 11 104
2 24 -30 17 30 -5 11 104
2 24 -30 -17 30 -5 -11 104
2 24 30 -17 30 5 -11 104
2 24 42 -5 34.625 44 -3 30
2 24 44 3 30 42 5 34.625
2 24 -42 5 34.625 -44 3 30
2 24 -44 -3 30 -42 -5 34.625
4 16 12 -5 104 12 5 104 5 11 104 5 -11 104
1 16 0 0 104 5 0 0 0 0 11 0 -1 0 rect2p.dat
4 16 -12 -5 104 -5 -11 104 -5 11 104 -12 5 104
2 24 5 -11 104 12 -5 104
2 24 -5 -11 104 -12 -5 104
2 24 -12 5 104 -5 11 104
2 24 5 11 104 12 5 104
5 24 -30 -17 30 -42 -5 34.625 -44 -3 30 -5 -11 104
5 24 42 -5 34.625 30 -17 30 44 -3 30 12 -5 104
5 24 30 17 30 42 5 34.625 44 3 30 5 11 104
5 24 -30 17 30 30 17 30 -5 11 104 30 17 0
5 24 -42 5 34.625 -30 17 30 -44 3 30 -12 5 104
5 24 -30 -17 30 30 -17 30 -30 -17 0 5 -11 104
Status:
Needs More Votes (CN)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
| User | Vote |
|---|---|
| Holly-Wood | Certify |
Official parents and subparts
Part Events:
this one is also used for the transformer Type 3 (u9058c01.dat)
2024-01-05 12:47:50
can someone please rename this to u9615s01?
filename s\741as09.dat is totally off. this file has nothing whatsoever to do with 741.dat
title IMHO should be changed from
0 ~Electric Train 12V Transformer Type 2 Europlug
to
0 ~Electric Train 12V Transformer Plug European Type 2
0 ~Electric Train 12V Transformer Type 2 Europlug
to
0 ~Electric Train 12V Transformer Plug European Type 2
reconsidering: this plug is not transformer-specific, but generic.
I think therefore the title should be stripped from transformer specifics.
this should become a primitive IMHO.
I think therefore the title should be stripped from transformer specifics.
this should become a primitive IMHO.
2024-02-11 11:07:06
why a prim? this part is used only for these 12V transformers...
(and even there only for the continental europe versions, UK and US and all others have different plugs)
(and even there only for the continental europe versions, UK and US and all others have different plugs)
I think that the 2 European electric plugs
s\741as09.dat https://library.ldraw.org/tracker/32155
s\u9605s02.dat https://library.ldraw.org/tracker/32151
should
* become primitives
* should be made independent of their parent parts
* should be retitled to something like
"Electric Plug 220V - European Variant - Type 1"
"Electric Plug 220V - European Variant - Type 2"
or something
s\741as09.dat https://library.ldraw.org/tracker/32155
s\u9605s02.dat https://library.ldraw.org/tracker/32151
should
* become primitives
* should be made independent of their parent parts
* should be retitled to something like
"Electric Plug 220V - European Variant - Type 1"
"Electric Plug 220V - European Variant - Type 2"
or something
2024-02-27 15:38:18
"parts/s/741as09.dat" to "parts/s/u9615s01.dat"
with new title
2025-03-17 08:22:41
