Unofficial File parts/11602.dat
Part Attributes:
File Header:

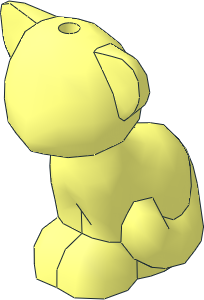

0 Animal Cat Sitting
0 Name: 11602.dat
0 Author: Javier Orquera [kuramapika1]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS animal, Cat, Set 2000430-2
0 !HISTORY 2023-05-13 {LEGO Instructions App} Original part shape
0 !HISTORY 2023-07-13 [kuramapika1] File preparation for LDraw Parts Tracker
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\11602s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\11602s02.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\11602s02.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\11602s03.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\11602s03.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\11602s04.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\11602s04.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\11602s05.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\11602s06.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\11602s06.dat
5 24 -10.6 -33.037 -14.046 -8.518 -31.097 -12.077 -12.714 -34.435 -8.667 -6.041 -32.13 -17.772
5 24 0 -31.686 -19.918 0 -34.479 -21.562 -6.041 -32.13 -17.772 6.041 -32.13 -17.772
5 24 0 -14.026 -6.887 0 -15.727 -8.13 -3.86 -12.776 -8.107 3.86 -12.776 -8.107
5 24 0 -21.893 -11.413 0 -25.143 -11.348 -3.939 -22.223 -10.347 3.939 -22.223 -10.347
5 24 0 -7.206 -11.015 4.779 -7.862 -11.387 0 -8.854 -6.688 5.153 -4.182 -13.322
5 24 9.332 -3.642 -9.801 9.064 0 -10.017 9.903 0 -4.717 5.153 -4.182 -13.322
5 24 0 -15.727 -8.13 0 -19.163 -10.513 3.955 -15.657 -8.87 -3.955 -15.657 -8.87
5 24 -4.779 -7.862 -11.387 0 -7.206 -11.015 -5.153 -4.182 -13.322 0 -8.854 -6.688
5 24 0 -34.479 -21.562 0 -38.96 -21.157 -6.56 -34.958 -19.281 6.56 -34.958 -19.281
5 24 0 -25.143 -11.348 0 -28.152 -11.099 -3.125 -25.405 -10.46 3.125 -25.405 -10.46
5 24 -9.064 0 -10.017 -9.332 -3.642 -9.801 -9.903 0 -4.717 -5.153 -4.182 -13.322
5 24 0 -19.163 -10.513 0 -21.893 -11.413 -4.057 -18.556 -9.8 4.057 -18.556 -9.8
5 24 0 -43.442 -20.141 0 -48.776 -18.725 -6.017 -43.879 -18.583 6.017 -43.879 -18.583
5 24 0 -29.752 -16.687 0 -31.686 -19.918 -4.834 -30.323 -15.139 4.834 -30.323 -15.139
5 24 0 -38.96 -21.157 0 -43.442 -20.141 6.441 -39.438 -19.234 -6.441 -39.438 -19.234
5 24 -8.518 -31.097 -12.077 -4.834 -30.323 -15.139 -6.041 -32.13 -17.772 -4.45 -29.051 -8.557
5 24 11.416 -40.237 -15.277 11.563 -36.16 -15.271 13.995 -39.654 -9.801 6.441 -39.438 -19.234
Status:
Needs More Votes (CN)
This part has the following automated holds from the Parts Tracker
Current Votes:
| User | Vote |
|---|---|
| RainbowDolphin | Certify |
Official parents and subparts
Part Events:
2023-07-15 00:25:11
2023-07-17 17:48:14
2023-07-18 15:44:34
2023-07-19 06:40:25
Thanks very much for creating!!
2023-07-21 00:08:12
tail and chest subpart are overlapping (maybe make that tail subpart a bit shorter at the front)
Overlap has resolved by update of subfiles.
forgot to un-hold this
2025-08-16 21:10:59
* I wonder why this cond isn't in s01:
5 24 11.416 -40.237 -15.277 11.563 -36.16 -15.271 13.995 -39.654 -9.801 6.441 -39.438 -19.234
5 24 11.416 -40.237 -15.277 11.563 -36.16 -15.271 13.995 -39.654 -9.801 6.441 -39.438 -19.234
