File Detail parts/s/11602s03.dat

Unofficial File parts/s/11602s03.dat

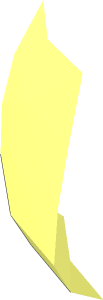

~Animal Cat Sitting Patternable Surface - Face Half

File Header:

0 ~Animal Cat Sitting Patternable Surface - Face Half
0 Name: s\11602s03.dat
0 Author: Javier Orquera [kuramapika1]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

3 16 -6.041 -32.13 -17.772 -10.6 -33.037 -14.046 -8.518 -31.097 -12.077
3 16 -6.041 -32.13 -17.772 -8.518 -31.097 -12.077 -4.834 -30.323 -15.139
3 16 0 -31.686 -19.918 -4.834 -30.323 -15.139 0 -29.752 -16.687
3 16 0 -31.686 -19.918 -6.041 -32.13 -17.772 -4.834 -30.323 -15.139
3 16 -11.416 -40.237 -15.277 -11.563 -36.16 -15.271 -6.441 -39.438 -19.234
3 16 -6.017 -43.879 -18.583 -11.416 -40.237 -15.277 -6.441 -39.438 -19.234
3 16 -11.416 -40.237 -15.277 -6.017 -43.879 -18.583 -10.627 -44.426 -14.826
3 16 -6.017 -43.879 -18.583 -6.441 -39.438 -19.234 0 -38.96 -21.157
3 16 0 -38.96 -21.157 0 -43.442 -20.141 -6.017 -43.879 -18.583
3 16 -4.879 -48.929 -17.298 -10.627 -44.426 -14.826 -6.017 -43.879 -18.583
3 16 -8.396 -49.392 -14.224 -10.627 -44.426 -14.826 -4.879 -48.929 -17.298
3 16 0 -48.776 -18.725 -6.017 -43.879 -18.583 0 -43.442 -20.141
3 16 -4.879 -48.929 -17.298 -6.017 -43.879 -18.583 0 -48.776 -18.725
3 16 -6.441 -39.438 -19.234 -6.56 -34.958 -19.281 0 -34.479 -21.562
3 16 -6.441 -39.438 -19.234 -11.563 -36.16 -15.271 -6.56 -34.958 -19.281
3 16 -10.6 -33.037 -14.046 -6.56 -34.958 -19.281 -11.563 -36.16 -15.271
3 16 -6.56 -34.958 -19.281 -10.6 -33.037 -14.046 -6.041 -32.13 -17.772
3 16 0 -31.686 -19.918 0 -34.479 -21.562 -6.56 -34.958 -19.281
3 16 -6.56 -34.958 -19.281 -6.041 -32.13 -17.772 0 -31.686 -19.918
3 16 0 -34.479 -21.562 0 -38.96 -21.157 -6.441 -39.438 -19.234
5 24 -6.441 -39.438 -19.234 0 -34.479 -21.562 -6.56 -34.958 -19.281 0 -38.96 -21.157
5 24 -6.441 -39.438 -19.234 -6.56 -34.958 -19.281 -11.563 -36.16 -15.271 0 -34.479 -21.562
5 24 -6.017 -43.879 -18.583 -4.879 -48.929 -17.298 0 -48.776 -18.725 -10.627 -44.426 -14.826
5 24 0 -43.442 -20.141 -6.017 -43.879 -18.583 0 -48.776 -18.725 0 -38.96 -21.157
5 24 -11.563 -36.16 -15.271 -6.441 -39.438 -19.234 -6.56 -34.958 -19.281 -11.416 -40.237 -15.277
5 24 -6.017 -43.879 -18.583 -11.416 -40.237 -15.277 -6.441 -39.438 -19.234 -10.627 -44.426 -14.826
5 24 -6.441 -39.438 -19.234 -6.017 -43.879 -18.583 -11.416 -40.237 -15.277 0 -38.96 -21.157
5 24 0 -31.686 -19.918 -6.56 -34.958 -19.281 0 -34.479 -21.562 -6.041 -32.13 -17.772
5 24 -6.041 -32.13 -17.772 -6.56 -34.958 -19.281 -10.6 -33.037 -14.046 0 -31.686 -19.918
5 24 -6.56 -34.958 -19.281 -10.6 -33.037 -14.046 -11.563 -36.16 -15.271 -6.041 -32.13 -17.772
5 24 0 -34.479 -21.562 -6.56 -34.958 -19.281 -6.441 -39.438 -19.234 0 -31.686 -19.918
5 24 -11.563 -36.16 -15.271 -6.56 -34.958 -19.281 -6.441 -39.438 -19.234 -10.6 -33.037 -14.046
5 24 -10.627 -44.426 -14.826 -6.017 -43.879 -18.583 -4.879 -48.929 -17.298 -11.416 -40.237 -15.277
5 24 -6.441 -39.438 -19.234 -11.416 -40.237 -15.277 -11.563 -36.16 -15.271 -6.017 -43.879 -18.583
5 24 -6.017 -43.879 -18.583 0 -48.776 -18.725 0 -43.442 -20.141 -4.879 -48.929 -17.298
5 24 -4.879 -48.929 -17.298 -10.627 -44.426 -14.826 -8.396 -49.392 -14.224 -6.017 -43.879 -18.583
5 24 -6.017 -43.879 -18.583 0 -38.96 -21.157 -6.441 -39.438 -19.234 0 -43.442 -20.141
5 24 -6.441 -39.438 -19.234 0 -38.96 -21.157 -6.017 -43.879 -18.583 0 -34.479 -21.562
5 24 -6.041 -32.13 -17.772 -10.6 -33.037 -14.046 -6.56 -34.958 -19.281 -8.518 -31.097 -12.077
5 24 -6.041 -32.13 -17.772 -4.834 -30.323 -15.139 0 -31.686 -19.918 -8.518 -31.097 -12.077
5 24 0 -31.686 -19.918 -6.041 -32.13 -17.772 -4.834 -30.323 -15.139 -6.56 -34.958 -19.281
5 24 -4.834 -30.323 -15.139 0 -31.686 -19.918 0 -29.752 -16.687 -6.041 -32.13 -17.772
5 24 -8.518 -31.097 -12.077 -6.041 -32.13 -17.772 -10.6 -33.037 -14.046 -4.834 -30.323 -15.139

Status:

Needs More Votes (CN)

This part has the following automated holds from the Parts Tracker

No path of certified files to a certified or official parent in the parts folder

Current Votes:

User	Vote
RainbowDolphin	Certify

Official parents and subparts

Part Events:

Javier Orquera [kuramapika1]

initially submitted the part.

2023-07-17 17:49:36

Philippe Hurbain [Philo]

made the following comment.

2023-07-18 09:31:29

I'd like to see many triangle flips to improve local convexity, for example:

3 16 0 -43.442 -20.141 0 -38.96 -21.157 6.441 -39.438 -19.234
3 16 6.441 -39.438 -19.234 6.017 -43.879 -18.583 0 -43.442 -20.141
turned into
3 16 6.017 -43.879 -18.583 0 -43.442 -20.141 0 -38.96 -21.157
3 16 0 -38.96 -21.157 6.441 -39.438 -19.234 6.017 -43.879 -18.583
This greatly improves the look of patterned parts.
This suggestion applies to many other areas and subparts of this cat!

Magnus Forsberg [MagFors]

posted a vote of Hold.

2023-07-18 12:10:45

"This suggestion applies to many other areas and subparts of this cat!"
I agree.

Javier Orquera [kuramapika1]

submitted a new version of the part.

2023-07-19 23:27:43

All of them have fliped faces. Hope it's fixed.
11602s01: I do the best I can do with the cut-out in the tail.

Javier Orquera [kuramapika1]

submitted a new version of the part.

2023-07-21 00:09:40

Divided into half.

Javier Orquera [kuramapika1]

submitted a new version of the part.

2023-07-21 14:09:08

Added "Half" at the description's end.

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.

2023-08-11 23:58:09

Thanks again!! I'll start printing.

Magnus Forsberg [MagFors]

posted a vote of Hold.

2023-08-12 13:58:10

IMO these has to be flipped, before they are ready for pattern creation.
3 12 6.441 -39.438 -19.234 6.017 -43.879 -18.583 0 -43.442 -20.141
3 12 6.441 -39.438 -19.234 0 -43.442 -20.141 0 -38.96 -21.157
3 13 6.441 -39.438 -19.234 0 -38.96 -21.157 6.56 -34.958 -19.281
3 13 6.56 -34.958 -19.281 0 -38.96 -21.157 0 -34.479 -21.562
3 12 6.56 -34.958 -19.281 0 -34.479 -21.562 6.041 -32.13 -17.772
3 12 6.041 -32.13 -17.772 0 -34.479 -21.562 0 -31.686 -19.918

Javier Orquera [kuramapika1]

submitted a new version of the part.

2023-08-14 16:46:42

Flipped faces.

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.

2023-08-26 10:18:29
