Official File p/3-16stud4t4.dat
File Header:

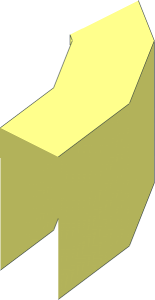

0 Stud Tube Open 0.1875 Truncated at 4 LDU Wall
0 Name: 3-16stud4t4.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Primitive UPDATE 2025-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2025-05-28 [OrionP] Official Update 2025-05
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 1-8stud4.dat
1 16 4.1213 -2 4.3237 0 1 -.1213 -2 0 0 0 0 .0811 rect3.dat
4 16 4 -4 4.4048 4.2426 -4 4.2426 5.6568 -4 5.6568 4 -4 6.7642
1 16 4.8284 -2 6.2105 0 -1 -.8284 2 0 0 0 0 .5537 rect3.dat
5 24 4.2426 0 4.2426 4.2426 -4 4.2426 4 0 4.4047 5.5434 0 2.2962
5 24 5.6568 0 5.6568 5.6568 -4 5.6568 4 0 6.7641 7.3912 0 3.0616
Status:
Official
This part has the following warnings
- Number in description may need a leading space
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © Magnus Forsberg
Licensed under CC BY 4.0
