File Detail parts/3536.dat

Official File parts/3536.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

File Header:

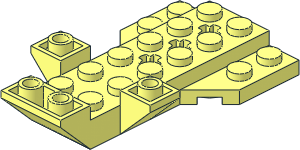

0 Car Base  4 x  7 with 3 Slopes Inverted
0 Name: 3536.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Part UPDATE 2025-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2025-05-28 [OrionP] Official Update 2025-05

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\3536s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\3536s01.dat

1 16 0 12 -40 0 0 1 0 -3 0 -1 0 0 stud4.dat
1 16 0 12 -20 0 0 1 0 -3 0 -1 0 0 stud4.dat
1 16 0 20 20 0 0 1 0 -1 0 -1 0 0 stud4a.dat
1 16 0 12 20 0 0 8 0 1 0 -8 0 0 4-4edge.dat
1 16 0 12 20 0 0 8 0 8 0 -8 0 0 4-4cyli.dat
1 16 0 12 20 0 0 8 0 -1 0 -8 0 0 4-4ndis.dat
1 16 0 8 20 -1 0 0 0 1 0 0 0 -1 axl3hol2.dat
1 16 0 8 20 -1 0 0 0 1 0 0 0 -1 axl3hol9.dat
1 16 0 8 20 -1 0 0 0 1 0 0 0 -1 axl3ho10.dat
1 16 0 8 20 -1 0 0 0 12 0 0 0 -1 axl3hol8.dat
1 16 0 8 20 0 0 6 0 1 0 -6 0 0 4-4ndis.dat
1 16 0 8 20 0 0 6 0 1 0 -6 0 0 4-4ering.dat
1 16 0 20 20 -1 0 0 0 1 0 0 0 -1 axl3hol3.dat
1 16 0 20 20 -1 0 0 0 1 0 0 0 -1 axl3hol9.dat
1 16 0 20 20 -1 0 0 0 -1 0 0 0 -1 axl3ho10.dat

1 16 0 20 0 0 0 1 0 -1 0 -1 0 0 stud4a.dat
1 16 0 12 0 0 0 8 0 1 0 -8 0 0 4-4edge.dat
1 16 0 12 0 0 0 8 0 8 0 -8 0 0 4-4cyli.dat
1 16 0 12 0 0 0 8 0 -1 0 -8 0 0 4-4ndis.dat
1 16 0 8 0 -1 0 0 0 1 0 0 0 -1 axl3hol2.dat
1 16 0 8 0 -1 0 0 0 1 0 0 0 -1 axl3hol9.dat
1 16 0 8 0 -1 0 0 0 1 0 0 0 -1 axl3ho10.dat
1 16 0 8 0 -1 0 0 0 12 0 0 0 -1 axl3hol8.dat
1 16 0 8 0 0 0 6 0 1 0 -6 0 0 4-4ndis.dat
1 16 0 8 0 0 0 6 0 1 0 -6 0 0 4-4ering.dat
1 16 0 20 0 -1 0 0 0 1 0 0 0 -1 axl3hol3.dat
1 16 0 20 0 -1 0 0 0 1 0 0 0 -1 axl3hol9.dat
1 16 0 20 0 -1 0 0 0 -1 0 0 0 -1 axl3ho10.dat

1 16 0 20 40 0 0 1 0 -1 0 -1 0 0 stud4a.dat
1 16 0 12 40 0 0 8 0 1 0 -8 0 0 4-4edge.dat
1 16 0 12 40 0 0 8 0 8 0 -8 0 0 4-4cyli.dat
1 16 0 12 40 0 0 8 0 -1 0 -8 0 0 4-4ndis.dat
1 16 0 8 40 -1 0 0 0 1 0 0 0 -1 axl3hol2.dat
1 16 0 8 40 -1 0 0 0 1 0 0 0 -1 axl3hol9.dat
1 16 0 8 40 -1 0 0 0 1 0 0 0 -1 axl3ho10.dat
1 16 0 8 40 -1 0 0 0 12 0 0 0 -1 axl3hol8.dat
1 16 0 8 40 0 0 6 0 1 0 -6 0 0 4-4ndis.dat
1 16 0 8 40 0 0 6 0 1 0 -6 0 0 4-4ering.dat
1 16 0 20 40 -1 0 0 0 1 0 0 0 -1 axl3hol3.dat
1 16 0 20 40 -1 0 0 0 1 0 0 0 -1 axl3hol9.dat
1 16 0 20 40 -1 0 0 0 -1 0 0 0 -1 axl3ho10.dat

1 16 0 12 0 0 0 16 0 1 0 -56 0 0 recte4.dat
1 16 0 8 0 0 0 20 0 1 0 -60 0 0 recte4.dat

2 24 36 24 56 -36 24 56
2 24 -4.4047 24 -56 4.4047 24 -56
4 16 16 12 -56 -16 12 -56 -8 12 -8 8 12 -8
4 16 8 12 48 -8 12 48 -16 12 56 16 12 56
4 16 8 12 28 -8 12 28 -8 12 32 8 12 32
4 16 8 12 8 -8 12 8 -8 12 12 8 12 12
4 16 -6 8 46 6 8 46 20 8 60 -20 8 60
4 16 6 8 34 -6 8 34 -6 8 26 6 8 26
4 16 -6 8 6 6 8 6 6 8 14 -6 8 14
4 16 -20 8 -60 20 8 -60 6 8 -6 -6 8 -6
4 16 -16 20 56 16 20 56 16 12 56 -16 12 56
4 16 -36 24 56 36 24 56 16 20 56 -16 20 56
4 16 -4.4047 24 -56 -4.4047 12 -56 4.4047 12 -56 4.4047 24 -56
4 16 4.4047 24 -56 20 24 -60 -20 24 -60 -4.4047 24 -56
2 24 -20 24 -60 20 24 -60
2 24 -40 24 60 40 24 60

4 16 -20 16 60 -20 8 60 20 8 60 20 16 60
1 16 10 8 0 0 0 -1 0 1 0 1 0 0 stug-1x6.dat
1 16 -10 8 0 0 0 -1 0 1 0 1 0 0 stug-1x6.dat

4 16 -20 16 60 20 16 60 40 24 60 -40 24 60
4 16 40 24 60 36 24 56 -36 24 56 -40 24 60
1 16 -30 16 40 0 0 -1 0 1 0 1 0 0 stug-1x2.dat
1 16 30 16 40 0 0 -1 0 1 0 1 0 0 stug-1x2.dat

1 16 0 12 -70 20 0 0 0 -10 2 0 -10 0 box2-5.dat
1 16 0 4 -60 -20 0 0 0 0 -4 0 -1 0 rect.dat
4 16 17.5 0 -77.5 -17.5 0 -77.5 -20 0 -80 20 0 -80
4 16 -17.5 0 -62.5 17.5 0 -62.5 20 0 -60 -20 0 -60
1 16 0 9.25 -62.5 0 0 -17.5 -9.25 0 0 0 1 0 rect.dat
1 16 0 1.75 -77.5 17.5 0 0 0 0 1.75 0 -1 0 rect.dat
1 16 0 11 -70 0 0 -17.5 7.5 1 0 7.5 0 0 rect2p.dat

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Magnus Forsberg [MagFors]

initially submitted the part.

2023-07-18 21:58:14

Thanks for the images, Vincent.

Gerald Lasser [GeraldLasser]

made the following comment.

2024-06-03 19:17:31

Should it be rotated by 90 deg to be like the other cas bases?

Gerald Lasser [GeraldLasser]

posted a vote of Hold.

2024-06-24 07:39:53

Upgrading to a hold for a brief clarification of orientation

Magnus Forsberg [MagFors]

made the following comment.

2024-06-24 15:33:09

Sure, I could rotate this.
But Car Base is one of the more disambigous categories we have. I think the score now is 14 on X-axis against 15 on the z-axis.

Philippe Hurbain [Philo]

made the following comment.

2024-06-24 17:16:43

Except for parts that have a strong different orientation history, I prefer to have symmetry in the x direction.

Magnus Forsberg [MagFors]

submitted a new version of the part.

2024-11-10 16:54:43

Changed orientation

Gerald Lasser [GeraldLasser]

posted a vote of Certify.

2025-01-01 17:25:32

Takeshi Takahashi [RainbowDolphin]
