File Detail parts/4045.dat

Official File parts/4045.dat

Part Attributes:

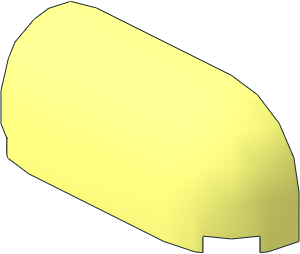

~Brick 1 x 4 x 1.333 with Curved Top and Corners (Obsolete)

File Header:

0 ~Brick  1 x  4 x  1.333 with Curved Top and Corners (Obsolete)
0 Name: 4045.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Part UPDATE 2025-08
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !CATEGORY Obsolete

0 !HISTORY 2024-06-30 [OrionP] Official Update 2024-05
0 !HISTORY 2025-01-14 [MagFors] Obsoleted due to bad geometry
0 !HISTORY 2025-08-31 [OrionP] Official Update 2025-08

Show contents
