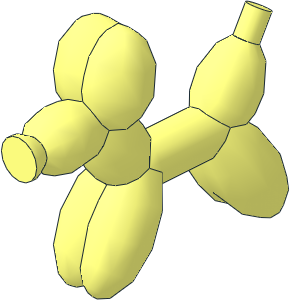

0 Minifig Balloon Dog
0 Name: 35692.dat
0 Author: Florent Faramond [Makou]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Minifig Accessory
0 !HISTORY 2025-05-11 [MagFors] Corrected edgelines
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\35692s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\35692s01.dat
1 16 0 0 -5.68 0 0 4 4 0 0 0 11.36 0 4-4cyli.dat
1 16 0 -10.35 -30 0 0 3.5 3.5 0 0 0 1 0 4-4cylc3.dat
1 16 0 -10.35 -30 0 0 3.5 3.5 0 0 0 1 0 4-4edge.dat
1 16 0 -15.764 17.563 0 0 2 -1 4.3301 0 -1.7321 -2.5 0 4-4cylc.dat
2 24 0 .717 12.824 0 2.513 14.463
2 24 0 2.513 14.463 0 5.692 16.665
2 24 0 5.692 16.665 0 10.534 18.343
2 24 0 10.534 18.343 0 13.929 18.22
2 24 0 13.929 18.22 0 15.339 17.263
2 24 0 15.339 17.263 0 15.128 14.162
2 24 0 15.128 14.162 0 10.692 8.479
2 24 0 -16.436 -17.637 0 -14.53 -17.371
2 24 0 -18.654 -17.157 0 -16.436 -17.637
2 24 0 -21.34 -16.171 0 -18.654 -17.157
2 24 0 -24.236 -12.671 0 -24.289 -11.62
2 24 0 -24.415 -10.382 0 -23.082 -8.714
2 24 0 -21.34 -16.171 0 -23.545 -14.155
2 24 0 -23.545 -14.155 0 -24.236 -12.671
2 24 0 -24.289 -11.62 0 -24.415 -10.382
2 24 0 -23.082 -8.714 0 -19.555 -7.716
2 24 0 -16.001 -7.955 0 -19.555 -7.716
2 24 0 15.706 -15.311 0 14.751 -11.733
2 24 0 15.497 -16.594 0 15.706 -15.311
2 24 0 14.989 -17.308 0 15.497 -16.594
2 24 0 12.179 -17.904 0 14.989 -17.308
2 24 0 5.735 -16.28 0 12.179 -17.904
2 24 0 5.735 -16.28 0 2.701 -14.266
2 24 0 .804 -12.616 0 2.701 -14.266
-
Has uncertified subfiles
None
- if you open the file in LDPE, you get errors on cond lines that are on a flat surface, those need to be removed.
- it has got a - needs work - line in the code but not in the description. is it final? then it needs to be removed.
Set number not necessary, not a patterned part
I will remove
keywords:
Bricklink 35692, Rebrickable 35692, Set 10303
to
removed keywords
Use of prim
Fix LPDE warning (were due to DATHeader opti)
It would be better to add a complete 4-4 primitive here in the main file, than a half, in the sub.
Missing condlines on the reshaped surfaces, adapted to the primitives.
Many of the triangle pairs should be flipped. A ballon doesn't have any concave surfaces.
3 16 77.257 -72 18.975 60.857 -72 18.975 63.198 -36.611 -20.435
3 16 63.198 -36.611 -20.435 77.196 -36.518 -17.769 77.257 -72 18.975
press F on your keyboard, and you should have:
3 16 60.857 -72 18.975 63.198 -36.611 -20.435 77.196 -36.518 -17.769
3 16 77.196 -36.518 -17.769 77.257 -72 18.975 60.857 -72 18.975
and for example, there could be one or more cone prims at the nose...
For the nose, I couldn't find a compatible prim cone.
category:
Minifig
to
Minifig Accessory
description:
Minifig Utensil Balloon Dog
to
Minifig Balloon Dog
This part is copyright © Florent Faramond
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Magnus Forsberg,
3D View
Website copyright ©2003-2025 LDraw.org, see Legal Info for details.
LDraw is a completely unofficial, community run free CAD system which represents official parts produced by the LEGO company.
LDraw™ is a trademark owned and licensed by the Estate of James Jessiman
LEGO® is a registered trademark of the LEGO Group, which does not sponsor,
endorse, or authorize this site. Visit the official Lego website at
http://www.lego.com
- is the center/body the part where it is held? if yes, use cyli
- the nose and tail are now p12, p16 could be used and substituded with prims too (can there connect anything?)
- maybe even some cones to replace even more...
