Official File parts/4789.dat

Part Attributes:

External Sites:

File Header:

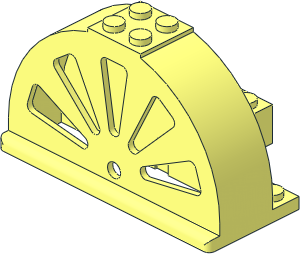

0 Fabuland Paddle Wheeler Wheel Holder
0 Name: 4789.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2024-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !CATEGORY Boat
0 !KEYWORDS Steamboat, Waterwheel

0 !HISTORY 2024-01-29 [OrionP] Official Update 2024-01

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\4789s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\4789s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 stug-2x2.dat
1 16 50 88 30 1 0 0 0 1 0 0 0 1 stug-1x3.dat
1 16 -50 88 30 1 0 0 0 1 0 0 0 1 stug-1x3.dat
1 16 10 72 50 1 0 0 0 1 0 0 0 1 stug-3x1.dat
1 16 -10 72 50 1 0 0 0 1 0 0 0 1 stug-3x1.dat
1 16 76 92 -24 0 -152 0 -4 0 0 0 0 -4 1-4cyli.dat
1 16 0 2.5881 0 20 0 0 0 -2.58808 0 0 0 20 box5-2p.dat
1 16 0 84 50 20 0 0 0 -12 0 0 0 30 box2-5.dat
4 16 -20 72 20 -20 2.5881 20 20 2.5881 20 20 72 20
0 BFC INVERTNEXT
1 16 0 80 -20 5 0 0 0 0 5 0 4 0 4-4cylo.dat
1 16 0 80 -20 5 0 0 0 0 5 0 1 0 4-4ndis.dat
1 16 0 80 -16 5 0 0 0 0 5 0 -1 0 4-4ndis.dat
2 24 80 88 -20 -80 88 -20
1 16 0 94 -28 0 0 76 2 0 0 0 1 0 rect1.dat
4 16 76 88 -24 80 88 -20 -80 88 -20 -76 88 -24
0 BFC INVERTNEXT
1 16 0 80 19 5 0 0 0 0 5 0 -3 0 4-4cylc.dat
1 16 0 80 16 5 0 0 0 0 5 0 1 0 4-4ndis.dat
0 BFC INVERTNEXT
1 16 0 91 16 5 0 0 0 0 -5 0 1.5 0 box4-1.dat
4 16 5 86 16 5 85 16 -5 85 16 -5 86 16
0 BFC INVERTNEXT
1 16 0 91 -16 5 0 0 0 0 -5 0 -1.5 0 box4-1.dat
4 16 -5 85 -16 5 85 -16 5 86 -16 -5 86 -16
0 BFC INVERTNEXT
1 16 0 96 48 16 0 0 0 -20 0 0 0 28 box4-1.dat
4 16 -20 96 80 20 96 80 16 96 76 -16 96 76
1 16 0 85 22 4 0 0 0 0 4 0 -1 0 2-4chrd.dat
1 16 0 85 22 4 0 0 0 0 4 0 -1 0 2-4edge.dat
1 16 0 85 20 2 0 0 0 0 2 0 2 0 2-4con2.dat
1 16 0 85 20 6 0 0 0 0 6 0 -1 0 2-4edge.dat
4 16 -16 76 20 16 76 20 16 96 20 -16 96 20
2 24 16 96 20 -16 96 20
2 24 4 76 22 -4 76 22
4 16 -4 76 22 4 76 22 4 85 22 -4 85 22
1 16 0 76 50 0 0 1 0 -5 0 -1 0 0 stug4-1x2.dat
2 24 -6 13 -20 6 13 -20
2 24 -6 13 -16 6 13 -16
4 16 6 13 -20 -6 13 -20 -6 13 -16 6 13 -16
4 16 -6 13 -20 6 13 -20 20 2.5881 -20 -20 2.5881 -20
4 16 5 85 -20 -5 85 -20 -80 88 -20 80 88 -20
4 16 -76 96 -24 76 96 -24 76 96 -28 -76 96 -28
4 16 -2 96 -24 -2 96 -20 2 96 -20 2 96 -24
4 16 -8 96 -20 -5 96 -17.5 5 96 -17.5 8 96 -20
3 16 -6 13 -16 0 4 -16 6 13 -16
3 16 -5 75 16 5 75 16 0 4 16
4 16 5 96 17.5 -5 96 17.5 -16 96 20 16 96 20

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Philippe Hurbain [Philo]

initially submitted the part.

2023-08-31 16:55:11

Vincent Messenet [Cheenzo]

made the following comment.

2023-12-04 18:07:34

Shouldn't the antistuds be aligned with the 3 studs on both sides of the 2x3 brick?
They are shifted by few LDUs for now.

Rene Rechthaler [Blechtaler]

made the following comment.

2023-12-04 18:26:03

the antistuds under the 2x3 are ok, but the antistuds under the 1x3 at the sides are shifted (in s01).
also the small boxes to help the antistuds are shifted, too...

Vincent Messenet [Cheenzo]

made the following comment.

2023-12-04 19:14:24

Yes, these are the ones I was talking about

Magnus Forsberg [MagFors]

posted a vote of Certify.

2023-12-04 21:22:47

Vincent Messenet [Cheenzo]

posted a vote of Certify.

2023-12-05 07:23:17

Orion Pobursky [OrionP]

posted a vote of Admin Review.
