Unofficial File parts/3571.dat
Part Attributes:
File Header:

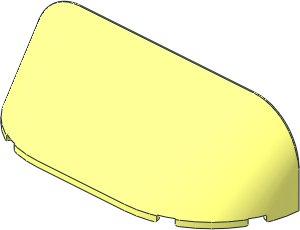

0 Windscreen 4 x 12 x 3 Curved
0 Name: 3571.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2023-08-23 {LEGO Instructions App} Original part shape
0 !HISTORY 2023-08-30 [MagFors] File preparation for LDraw Parts Tracker
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\3571s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\3571s01.dat
0 // front side
1 16 0 -2.4105 -60 40 0 0 0 0 -2.4105 0 1 0 rect2p.dat
4 16 80 -72 18.975 -80 -72 18.975 -40 -4.821 -60 40 -4.821 -60
0 // back side
1 16 0 -4 -45.3335 40 0 0 0 0 -4 0 5.3335 0 box2-9p.dat
1 16 0 -70 19.4875 80 0 0 0 0 -2 0 .5125 0 box2-9p.dat
4 16 -80 -68 20 80 -68 20 40 -8 -50.667 -40 -8 -50.667
1 16 0 -5.25 -50 40 0 0 0 -1 0 0 0 -6 rect2p.dat
1 16 0 -2.625 -42 -40 0 0 0 2.625 0 0 0 -2 box2-11.dat
1 16 0 -2.625 -58 -40 0 0 0 2.625 0 0 0 2 box2-11.dat
1 16 0 -5.25 -50 1 0 0 0 -1.3125 0 0 0 1 stug3-1x5.dat
Status:
Awaiting Admin Review (CCN)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
Current Votes:
| User | Vote |
|---|---|
| RainbowDolphin | Certify |
| WUIt | Certify |
Official parents and subparts
Part Events:
2023-08-31 22:09:41
2025-05-20 11:26:37
2025-06-28 17:44:21
bump
Removed the dip in the front/top surface. The surface is flat.
2025-09-10 08:07:33
* Looks good
2025-09-22 09:02:01
2025-09-22 15:05:03
Creative Commons Attribution License information
This part is copyright © Magnus Forsberg
Licensed under CC BY 4.0
