Unofficial File parts/3573.dat
Part Attributes:
File Header:

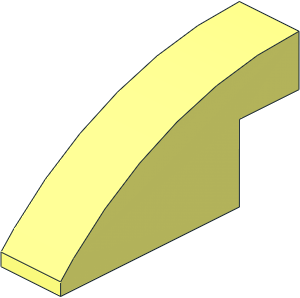

0 Slope Brick Curved 4 x 1 x 1.667
0 Name: 3573.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 16 0 38 -40 -10 0 0 0 0 2 0 1 0 rect3.dat
0 BFC INVERTNEXT
1 16 0 37.875 -34 6 0 0 0 0 -2.125 0 -2 0 box2-5.dat
1 16 0 10.5 22 -1 0 0 0 5.5 0 0 0 2 box2-5.dat
1 16 -3.5 10.896375 20 -2.5 0 0 0 0 -5.103625 0 -1 0 rect3.dat
1 16 3.5 10.896375 20 -2.5 0 0 0 0 -5.103625 0 -1 0 rect3.dat
1 16 0 23.294 16 -6 0 0 0 0 16.706 0 1 0 rect.dat
1 16 0 8 40 0 0 -10 8 0 0 0 -1 0 rect.dat
1 16 0 10 36 0 0 6 6 0 0 0 1 0 rect.dat
1 16 0 24.3875 -17.85 0 0 6 -3.4875 -1 0 4.65 0 0 rect2p.dat
1 16 0 31.8125 -27.25 0 0 -6 3.9375 -1 0 -4.75 0 0 rect2p.dat
1 16 0 4.344 30.78 0 0 -6 .344 -1 0 -5.22 0 0 rect2p.dat
1 16 0 6.658 15.648 0 0 -6 .07 -1 0 -.352 0 0 rect2p.dat
1 16 0 8.408 10.34 0 0 -6 1.68 -1 0 -4.956 0 0 rect2p.dat
1 16 0 12.404 .692 0 0 -6 2.316 -1 0 -4.692 0 0 rect2p.dat
1 16 0 17.81 -8.6 0 0 -6 3.09 -1 0 -4.6 0 0 rect2p.dat
2 24 -10 36 -40 10 36 -40
2 24 -10 36 -40 -10 31.3403 -35.6597
2 24 10 36 -40 10 31.3403 -35.6597
4 16 -10 31.3403 -35.6597 -10 36 -40 10 36 -40 10 31.3403 -35.6597
1 16 10 107 40 0 -20 0 -107 0 0 0 0 -107 48\1-8cylo.dat
1 16 10 107 40 0 -1 0 -107 0 0 0 0 -107 48\1-8chrd.dat
1 16 -10 107 40 0 1 0 -107 0 0 0 0 -107 48\1-8chrd.dat
2 24 -10 40 20 10 40 20
2 24 10 40 20 10 40 -40
2 24 -10 40 -40 -10 40 20
2 24 6 40 16 6 40 -36
2 24 -6 40 -36 -6 40 16
2 24 -10 40 20 -10 16 20
2 24 10 16 20 10 40 20
2 24 -10 16 40 -10 16 20
2 24 10 16 20 10 16 40
2 24 6 4.688 25.56 6 5.79275 20
2 24 -6 4.688 25.56 -6 5.79275 20
2 24 -6 16 36 -6 16 20
2 24 6 16 36 6 16 20
2 24 6 16 20 10 16 20
2 24 -6 16 20 -10 16 20
2 24 -1 5 24 -1 5.79275 20
2 24 1 5 24 1 5.79275 20
3 16 10 36 -40 10 40 -40 10 40 20
3 16 -10 40 20 -10 40 -40 -10 36 -40
3 16 6 16 20 10 16 20 10 40 20
3 16 1 16 20 6 16 20 10 40 20
3 16 -6 16 20 -1 16 20 -10 40 20
3 16 -10 40 20 -10 16 20 -6 16 20
3 16 -6 5.79275 20 -6 16 20 -6 16 36
3 16 6 5.79275 20 6 16 36 6 16 20
4 16 -10 36 -40 -10 31.3403 -35.6597 -10 16 20 -10 40 20
4 16 6 40 16 6 40 -36 6 35.75 -36 6 35.75 -32
4 16 -6 35.75 -36 -6 40 -36 -6 40 16 -6 35.75 -32
4 16 10 40 20 -10 40 20 -1 16 20 1 16 20
4 16 1 5 24 -1 5 24 -6 4.688 25.56 6 4.688 25.56
4 16 6 4.688 25.56 6 5.79275 20 1 5.79275 20 1 5 24
4 16 -1 5 24 -1 5.79275 20 -6 5.79275 20 -6 4.688 25.56
4 16 -6 4 36 -6 4.688 25.56 -6 5.79275 20 -6 16 36
4 16 6 4 36 6 16 36 6 5.79275 20 6 4.688 25.56
4 16 -6 16 20 -10 16 20 -10 16 40 -6 16 36
4 16 6 16 20 6 16 36 10 16 40 10 16 20
4 16 10 16 40 6 16 36 -6 16 36 -10 16 40
4 16 6 10.088 5.384 6 6.728 15.296 6 6.588 16 6 40 16
4 16 6 10.088 5.384 6 40 16 6 20.9 -13.2 6 14.72 -4
4 16 -6 40 16 -6 6.588 16 -6 6.728 15.296 -6 10.088 5.384
4 16 -6 10.088 5.384 -6 14.72 -4 -6 20.9 -13.2 -6 40 16
4 16 -6 40 -36 -10 40 -40 -10 40 20 -6 40 16
4 16 6 40 -36 6 40 16 10 40 20 10 40 -40
4 16 -6 40 -36 6 40 -36 10 40 -40 -10 40 -40
4 16 -6 40 16 -10 40 20 10 40 20 6 40 16
4 16 -6 40 16 -6 20.9 -13.2 -6 27.875 -22.5 -6 35.75 -32
4 16 6 27.875 -22.5 6 20.9 -13.2 6 40 16 6 35.75 -32
4 16 -1 16 20 -1 5.79275 20 -1 5 24 -1 16 24
4 16 1 16 24 1 5 24 1 5.79275 20 1 16 20
3 16 10 16 20 10 16 40 10 0 40
3 16 -10 0 40 -10 16 40 -10 16 20
4 16 10 16 20 10 31.3403 -35.6597 10 36 -40 10 40 20
5 24 10 31.3403 -35.6597 -10 31.3403 -35.6597 10 36 -40 10 22.1062 -25.1416
5 24 -6 6.728 15.296 6 6.728 15.296 -6 4.688 25.56 -6 10.088 5.384
5 24 -6 10.088 5.384 6 10.088 5.384 -6 6.728 15.296 -6 14.72 -4
5 24 -6 14.72 -4 6 14.72 -4 -6 10.088 5.384 -6 20.9 -13.2
5 24 -6 20.9 -13.2 6 20.9 -13.2 -6 14.72 -4 -6 27.875 -22.5
5 24 -6 27.875 -22.5 6 27.875 -22.5 -6 35.75 -32 -6 20.9 -13.2
5 24 -6 4.688 25.56 6 4.688 25.56 -6 4 36 -6 6.728 15.296
3 16 10 16 20 10 0 40 10 31.3403 -35.6597
3 16 -10 0 40 -10 16 20 -10 31.3403 -35.6597
Status:
Certified (ACCN)
Current Votes:
| User | Vote |
|---|---|
| OrionP | Admin Review |
| Philo | Certify |
| WUIt | Certify |
Official parents and subparts
Part Events:
2023-08-31 22:09:59
2023-08-31 22:10:37
I'll make the arch too.
2023-09-01 10:35:14
Hi Magnus,
That is the curve from the instructions app
4 7 -30 35.2 -40 -30 40 -40 -10 40 -40 -10 35.2 -40
4 7 -10 26.261 -30.778 -30 26.261 -30.778 -30 35.2 -40 -10 35.2 -40
4 7 -30 26.261 -30.778 -10 26.261 -30.778 -10 18.475 -20.564 -30 18.475 -20.564
4 7 -10 11.949 -9.502 -30 11.949 -9.502 -30 18.475 -20.564 -10 18.475 -20.564
4 7 -30 11.949 -9.502 -10 11.949 -9.502 -10 6.777 2.254 -30 6.777 2.254
4 7 -10 3.03 14.538 -30 3.03 14.538 -30 6.777 2.254 -10 6.777 2.254
4 7 -30 3.03 14.538 -10 3.03 14.538 -10 .76 27.179 -30 .76 27.179
4 7 -10 0 40 -30 0 40 -30 .76 27.179 -10 .76 27.179
That is the curve from the instructions app
4 7 -30 35.2 -40 -30 40 -40 -10 40 -40 -10 35.2 -40
4 7 -10 26.261 -30.778 -30 26.261 -30.778 -30 35.2 -40 -10 35.2 -40
4 7 -30 26.261 -30.778 -10 26.261 -30.778 -10 18.475 -20.564 -30 18.475 -20.564
4 7 -10 11.949 -9.502 -30 11.949 -9.502 -30 18.475 -20.564 -10 18.475 -20.564
4 7 -30 11.949 -9.502 -10 11.949 -9.502 -10 6.777 2.254 -30 6.777 2.254
4 7 -10 3.03 14.538 -30 3.03 14.538 -30 6.777 2.254 -10 6.777 2.254
4 7 -30 3.03 14.538 -10 3.03 14.538 -10 .76 27.179 -30 .76 27.179
4 7 -10 0 40 -30 0 40 -30 .76 27.179 -10 .76 27.179
2023-09-01 14:13:09
As the images show, this should match 50950 so I picked the line form that part.
1 9 0 0 -10 1 0 0 0 1 0 0 0 1 50950.dat
1 71 0 90 -100 -1 0 0 0 0 1 0 1 0 50950.dat
1 11 20 0 -20 1 0 0 0 1 0 0 0 1 3573.dat
1 11 20 80 -100 -1 0 0 0 0 1 0 1 0 3573.dat
Are there any other arches and slopes to consider?
1 9 0 0 -10 1 0 0 0 1 0 0 0 1 50950.dat
1 71 0 90 -100 -1 0 0 0 0 1 0 1 0 50950.dat
1 11 20 0 -20 1 0 0 0 1 0 0 0 1 3573.dat
1 11 20 80 -100 -1 0 0 0 0 1 0 1 0 3573.dat
Are there any other arches and slopes to consider?
2024-08-05 07:21:09
For the polygons I would suggest replacing the lines:
(53, 54)
3 16 10 36 -40 10 40 -40 10 40 20
3 16 -10 40 20 -10 40 -40 -10 36 -40
(61, 62)
3 6 10 16 20 10 20.33 -20.5 10 40 20
3 6 -10 16 20 -10 40 20 -10 20.33 -20.5
(92, 93)
4 16 10 40 20 10 20.33 -20.5 10 27.7 -30.6 10 36 -40
4 16 -10 27.7 -30.6 -10 20.33 -20.5 -10 40 20 -10 36 -40
with:
4 16 10 36 -40 10 40 -40 10 40 20 10 27.7 -30.6
4 16 -10 27.7 -30.6 -10 40 20 -10 40 -40 -10 36 -40
4 16 10 16 20 10 20.33 -20.5 10 27.7 -30.6 10 40 20
4 16 -10 40 20 -10 27.7 -30.6 -10 20.33 -20.5 -10 16 20
as you get fewer polygons that way.
(53, 54)
3 16 10 36 -40 10 40 -40 10 40 20
3 16 -10 40 20 -10 40 -40 -10 36 -40
(61, 62)
3 6 10 16 20 10 20.33 -20.5 10 40 20
3 6 -10 16 20 -10 40 20 -10 20.33 -20.5
(92, 93)
4 16 10 40 20 10 20.33 -20.5 10 27.7 -30.6 10 36 -40
4 16 -10 27.7 -30.6 -10 20.33 -20.5 -10 40 20 -10 36 -40
with:
4 16 10 36 -40 10 40 -40 10 40 20 10 27.7 -30.6
4 16 -10 27.7 -30.6 -10 40 20 -10 40 -40 -10 36 -40
4 16 10 16 20 10 20.33 -20.5 10 27.7 -30.6 10 40 20
4 16 -10 40 20 -10 27.7 -30.6 -10 20.33 -20.5 -10 16 20
as you get fewer polygons that way.
2025-03-31 15:03:09
2025-03-31 16:48:26
any cylo prims who fit?
Magnus, could you please update it using a cylo like the 4x4? not only you get substituable prim, but the curve better fits the BI part shape.
See https://library.ldraw.org/parts/45127
See https://library.ldraw.org/parts/45127
2025-08-28 10:01:25
bump
Please see thread https://forums.ldraw.org/thread-29090-post-58586.html#pid58586
It is confirmed that 3573, 7249, 50950 and 3572 have the same curvature, but unfortunately it is 50950 that has the wrong shape - it should be 1 LDU higher in the front. This part should copy the curvature from 7249 as Philo suggested.
It is confirmed that 3573, 7249, 50950 and 3572 have the same curvature, but unfortunately it is 50950 that has the wrong shape - it should be 1 LDU higher in the front. This part should copy the curvature from 7249 as Philo suggested.
2025-09-24 18:14:20
Thanks for investigating. Will correct it.
Corrected
The inside has a set of rect2p instead of a cylo prim. Maybe fit only the large compartment?
The small compartment has two 6-decimal rects.
1 5 0 38 -40 -10 0 0 0 0 2 0 1 0 rect3.dat
could be a full rect.dat
The part is well-made and ready for trans-colors
The small compartment has two 6-decimal rects.
1 5 0 38 -40 -10 0 0 0 0 2 0 1 0 rect3.dat
could be a full rect.dat
The part is well-made and ready for trans-colors
2025-09-25 07:06:02
2025-09-25 07:09:31
