Unofficial File parts/u9608c02.dat
Part Attributes:
Base Part: u9608.dat
File Header:

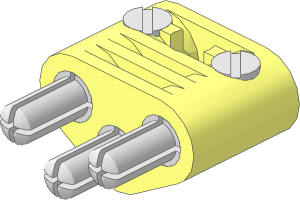

0 Electric Plug Triple with Cross-Cut Pin (Type 2) (Complete)
0 Name: u9608c02.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Shortcut
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP place on 833
0 !HELP 1 1 0 0 0 1 0 0 0 1 0 0 0 1 833.dat
0 !HELP 1 1 0 -14 70 -1 0 0 0 -1 0 0 0 1 u9608c02.dat
0 BFC CERTIFY CCW
0 !KEYWORDS Bricklink 3wayconb, Rebrickable 3wayconb
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 u9608.dat
1 494 0 6 0 1 0 0 0 1 0 0 0 1 u9018.dat
1 494 10 0 0 1 0 0 0 1 0 0 0 1 u9018.dat
1 494 -10 0 0 1 0 0 0 1 0 0 0 1 u9018.dat
1 494 0 0 17 0.707107 0 -0.707107 0 1 0 0.707107 0 0.707107 u9021.dat
1 494 10 -6 17 0.707107 0 -0.707107 0 1 0 0.707107 0 0.707107 u9021.dat
1 494 -10 -6 17 0.707107 0 -0.707107 0 1 0 0.707107 0 0.707107 u9021.dat
Status:
Needs 2 More Votes (N)
This part has the following errors
-
Decimal precision exceeds 5 significant placesLine 19: 1 494 0 0 17 0.707107 0 -0.707107 0 1 0 0.707107 0 0.707107 u9021.datLine 20: 1 494 10 -6 17 0.707107 0 -0.707107 0 1 0 0.707107 0 0.707107 u9021.datLine 21: 1 494 -10 -6 17 0.707107 0 -0.707107 0 1 0 0.707107 0 0.707107 u9021.dat
This part has the following automated holds from the Parts Tracker
Current Votes:
None
Official parents and subparts
Part Events:
2023-09-15 10:14:31
2024-05-31 15:29:52
corrected the vertical height of the central electrical contact (is now 6 LDU)
Creative Commons Attribution License information
This part is copyright © Rene Rechthaler
Licensed under CC BY 4.0
