Official File parts/2885.dat
Part Attributes:
File Header:

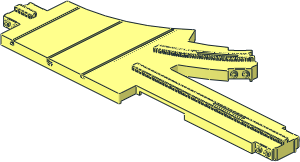

0 ~Monorail Track Point Left - Top
0 Name: 2885.dat
0 Author: Mikkel Bech Jensen [gaia]
0 !LDRAW_ORG Part UPDATE 2025-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2020-09-05 [PTadmin] Official Update 2020-02
0 !HISTORY 2025-09-27 [OrionP] Changed winding to CCW
0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09
Show contents
1 16 200 15 1 7 0 0 0 -1 -3 0 0 -1.5 rect.dat
1 16 200 7.5 2.5 1.5 0 0 0 0 2.5 0 1 0 rect3.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\2880s09.dat
1 16 320 0 0 -1 0 0 0 1 0 0 0 -1 s\2670s01.dat
1 16 -320 0 0 1 0 0 0 1 0 0 0 1 s\2670s01.dat
1 16 80 0 160 -1 0 0 0 1 0 0 0 -1 s\2891s01.dat
1 16 40.809 5 140.433 1.061 0 4.95 0 11 0 1.061 0 -4.95 box5.dat
1 16 38.14 5 154.914 1.061 0 1.414 0 11 0 1.061 0 -1.414 box4-1.dat
1 16 74.528 5 118.515 -1.061 0 -1.414 0 11 0 -1.061 0 1.414 box4-1.dat
1 16 71.793 12.5 107.816 0 1 2.568 -7.5 0 0 0 0 -2.568 rect.dat
1 16 26.2 12.5 152.408 -3.306 1 0 0 0 -7.5 3.306 0 0 rect.dat
0 BFC INVERTNEXT
1 16 74.954 5 139.2 0 0 -2 0 15 0 2 0 0 3-8cyli.dat
1 16 74.954 20 139.2 0 0 -2 0 1 0 2 0 0 3-8edge.dat
1 16 74.954 5 139.2 0 0 -2 0 1 0 2 0 0 3-8edge.dat
1 16 74.954 5 139.2 0 0 -2 0 -1 0 2 0 0 3-8chrd.dat
0 BFC INVERTNEXT
1 16 55.779 5 172.545 2 0 0 0 15 0 0 0 2 3-8cyli.dat
1 16 55.779 20 172.545 2 0 0 0 1 0 0 0 2 3-8edge.dat
1 16 55.779 5 172.545 2 0 0 0 1 0 0 0 2 3-8edge.dat
1 16 55.779 5 172.545 2 0 0 0 -1 0 0 0 2 3-8chrd.dat
2 24 201.5 16 2.5 201.5 12 2.5
2 24 201.5 16 2.5 198.5 16 2.5
2 24 198.5 16 2.5 198.5 12 2.5
2 24 198.5 12 2.5 193 12 2.5
2 24 201.5 12 2.5 207 12 2.5
2 24 207 12 2.5 207 12 -.5
2 24 193 12 -.5 193 12 2.5
2 24 193 12 2.5 193 18 2.5
2 24 207 12 2.5 207 18 2.5
2 24 198.5 16 16.5 198.5 16 2.5
2 24 201.5 16 2.5 201.5 16 19.5
2 24 201.5 16 19.5 201.5 5 19.5
2 24 201.5 5 19.5 201.5 5 2.5
2 24 198.5 5 2.5 198.5 5 16.5
2 24 198.5 5 16.5 198.5 16 16.5
2 24 195.5 16 13.5 198.5 16 16.5
2 24 201.5 16 19.5 210 16 28
2 24 210 16 -28 195.5 16 -13.5
2 24 58.592 5 152.733 64.446 5 158.588
2 24 29.505 20 149.102 43.654 20 163.248
2 24 64.446 25 158.588 64.446 5 158.588
2 24 82.872 20 124.03 67.755 20 139.136
2 24 56.375 25 150.516 64.446 25 158.588
2 24 56.375 20 150.516 58.592 20 152.733
2 24 43.654 20 163.248 56.375 20 150.516
2 24 35.665 5 155.268 29.505 5 149.102
2 24 82.872 20 124.03 69.225 20 110.383
2 24 82.872 5 124.03 82.872 20 124.03
2 24 65.254 5 141.637 82.872 5 124.03
2 24 37.787 5 157.389 43.654 5 163.248
2 24 69.225 5 110.383 74.882 5 116.04
2 24 43.654 5 163.248 43.654 20 163.248
2 24 82.872 5 124.03 77.003 5 118.162
2 24 43.654 5 163.248 61.963 5 144.928
2 24 94.508 25 141.253 70.138 25 141.187
2 24 94.508 5 141.253 94.508 25 141.253
2 24 79.082 0 104.354 79.082 20 104.354
2 24 79.082 20 104.354 53.489 20 86.453
2 24 -6.461 20 142 22.945 20 160.491
2 24 79.082 0 104.354 53.489 0 86.453
2 24 -6.461 0 142 22.945 0 160.491
2 24 57.375 5 165.659 57.779 5 172.545
2 24 74.954 5 141.2 94.508 5 141.253
2 24 74.954 20 141.2 70.138 20 141.187
2 24 57.779 20 172.545 58.082 20 177.679
3 16 201.5 12 2.5 201.5 16 2.5 201.5 16 19.5
3 16 198.5 12 2.5 198.5 16 16.5 198.5 16 2.5
3 16 207 12 -.5 207 12 2.5 201.5 12 2.5
3 16 198.5 12 2.5 193 12 2.5 193 12 -.5
3 16 207 12 -.5 207 18 2.5 207 12 2.5
3 16 193 18 2.5 193 12 -.5 193 12 2.5
3 16 67.755 25 139.136 67.416 25 143.799 70.138 25 141.187
3 16 69.225 20 110.383 82.872 20 124.03 73.639 20 109.797
3 16 43.654 20 163.248 29.505 20 149.102 29.798 20 153.638
3 16 65.254 5 141.637 74.175 5 120.99 72.053 5 118.869
3 16 72.053 5 118.869 74.882 5 116.04 69.225 5 110.383
3 16 65.254 5 141.637 72.053 5 118.869 69.225 5 110.383
3 16 38.494 5 152.439 40.615 5 154.561 61.963 5 144.928
3 16 29.505 5 149.102 35.665 5 155.268 38.494 5 152.439
3 16 36.92 5 146.443 61.963 5 144.928 46.819 5 136.544
3 16 34.799 5 144.322 29.505 5 149.102 36.92 5 146.443
3 16 34.799 5 144.322 44.698 5 134.423 34.683 5 139.435
3 16 85.083 20 126.241 73.639 20 109.797 82.872 20 124.03
3 16 29.798 20 153.638 45.866 20 165.459 43.654 20 163.248
3 16 79.082 0 104.354 73.639 0 109.797 53.489 0 86.453
3 16 -6.461 0 142 29.798 0 153.638 22.945 0 160.491
4 16 54.365 20 173.959 55.961 20 179.801 58.082 20 177.679 55.014 20 174.393
3 16 58.082 20 177.679 57.779 20 172.545 57.627 20 173.31
3 16 57.193 20 173.959 58.082 20 177.679 57.627 20 173.31
3 16 56.544 20 174.393 58.082 20 177.679 57.193 20 173.959
3 16 55.779 20 174.545 58.082 20 177.679 56.544 20 174.393
3 16 55.014 20 174.393 58.082 20 177.679 55.779 20 174.545
3 16 73.54 5 137.786 74.954 5 141.2 85.083 5 126.241
4 16 94.508 25 141.253 74.954 20 141.2 70.138 20 141.187 70.138 25 141.187
3 16 67.755 20 139.136 72.954 20 139.2 73.106 20 138.435
3 16 73.54 20 137.786 67.755 20 139.136 73.106 20 138.435
3 16 70.138 20 141.187 73.54 20 140.614 73.106 20 139.965
3 16 74.189 20 141.048 73.54 20 140.614 70.138 20 141.187
3 16 74.954 20 141.2 74.189 20 141.048 70.138 20 141.187
4 16 201.5 12 2.5 201.5 16 19.5 201.5 5 19.5 201.5 5 2.5
4 16 198.5 12 2.5 198.5 5 2.5 198.5 5 16.5 198.5 16 16.5
4 16 201.5 12 2.5 207 12 2.5 207 18 2.5 201.5 16 2.5
4 16 193 12 2.5 198.5 12 2.5 198.5 16 2.5 193 18 2.5
4 16 198.5 16 2.5 201.5 16 2.5 207 18 2.5 193 18 2.5
4 16 198.5 12 2.5 193 12 -.5 207 12 -.5 201.5 12 2.5
4 16 201.5 16 2.5 198.5 16 2.5 198.5 16 16.5 201.5 16 19.5
4 16 77.003 16 118.162 77.003 5 118.162 82.872 5 124.03 82.872 20 124.03
4 16 69.225 20 110.383 74.882 16 116.04 77.003 16 118.162 82.872 20 124.03
4 16 74.882 16 116.04 69.225 20 110.383 69.225 5 110.383 74.882 5 116.04
1 16 91.1925 12.5 132.35 -6.1095 1 0 0 0 7.5 -6.109 0 0 rect.dat
4 16 37.787 16 157.389 43.654 20 163.248 43.654 5 163.248 37.787 5 157.389
4 16 29.505 20 149.102 35.665 16 155.268 35.665 5 155.268 29.505 5 149.102
4 16 43.654 20 163.248 37.787 16 157.389 35.665 16 155.268 29.505 20 149.102
4 16 64.446 25 158.588 58.592 20 152.733 58.592 5 152.733 64.446 5 158.588
4 16 56.375 25 150.516 56.375 20 150.516 58.592 20 152.733 64.446 25 158.588
4 16 56.375 20 150.516 61.963 5 144.928 43.654 5 163.248 43.654 20 163.248
4 16 43.654 20 163.248 45.866 20 165.459 58.592 20 152.733 56.375 20 150.516
4 16 67.755 20 139.136 82.872 20 124.03 82.872 5 124.03 65.254 5 141.637
1 16 62.065 22.5 144.826 0 1 -5.69 2.5 0 0 0 0 5.69 rect2a.dat
4 16 56.375 20 150.516 67.755 20 139.136 65.254 5 141.637 61.963 5 144.928
1 16 52.229 12.5 159.096 0 -1 6.363 7.5 0 0 0 0 -6.363 rect2a.dat
4 16 61.158 25 150.057 56.375 25 150.516 64.446 25 158.588 69.785 25 158.683
4 16 67.755 25 139.136 56.375 25 150.516 61.158 25 150.057 67.416 25 143.799
4 16 73.639 20 109.797 85.083 20 126.241 97.302 20 138.459 99.802 20 135.96
4 16 69.225 20 110.383 73.639 20 109.797 79.082 20 104.354 74.36 20 105.248
4 16 22.894 20 155.713 22.945 20 160.491 29.798 20 153.638 29.505 20 149.102
4 16 45.866 5 165.459 57.375 5 165.659 64.446 5 158.588 58.592 5 152.733
4 16 65.254 5 141.637 82.872 5 124.03 77.003 5 118.162 74.175 5 120.99
4 16 37.787 5 157.389 43.654 5 163.248 61.963 5 144.928 40.615 5 154.561
4 16 43 5 124 65.254 5 141.637 69.225 5 110.383 51.364 5 114.501
4 16 44.698 5 134.423 40 5 128 30.527 5 136.656 34.683 5 139.435
4 16 40 5 128 44.698 5 134.423 46.819 5 136.544 61.963 5 144.928
4 16 61.963 5 144.928 36.92 5 146.443 29.505 5 149.102 38.494 5 152.439
4 16 29.505 5 149.102 34.799 5 144.322 34.683 5 139.435 5.837 5 141.193
4 16 74.36 5 105.248 51.241 5 89.786 51.364 5 114.501 69.225 5 110.383
4 16 5.837 5 141.193 4.028 5 143.896 22.894 5 155.713 29.505 5 149.102
4 16 66 0 141 48.538 0 126 73.639 0 109.797 80 0 117.575
4 16 37.576 0 160 29.798 0 153.638 47.911 0 136 59 0 143.575
4 16 -6.461 0 142 22.945 0 160.491 22.945 20 160.491 -6.461 20 142
4 16 53.489 20 86.453 79.082 20 104.354 79.082 0 104.354 53.489 0 86.453
4 16 79.082 20 104.354 53.489 20 86.453 51.241 20 89.786 74.36 20 105.248
4 16 -4.648 20 138.462 -6.461 20 142 22.945 20 160.491 22.894 20 155.713
1 16 68.9465 22.5 140.1615 0 -1 1.1915 -2.5 0 0 0 0 1.0255 rect.dat
4 16 29.798 20 153.638 55.961 20 179.801 54.365 20 173.959 45.866 20 165.459
4 16 45.866 5 165.459 54.365 5 173.959 57.779 5 172.545 57.375 5 165.659
1 16 50.1155 12.5 169.709 0 -1 -4.2495 7.5 0 0 0 0 -4.25 rect3.dat
4 16 57.779 20 172.545 57.375 25 165.658 57.375 5 165.659 57.779 5 172.545
4 16 58.082 25 177.679 57.375 25 165.658 57.779 20 172.545 58.082 20 177.679
4 16 67.755 20 139.136 73.54 20 137.786 85.083 20 126.241 82.872 20 124.03
1 16 79.3115 12.5 132.0135 -5.7715 -1 0 0 0 7.5 5.7725 0 0 rect2p.dat
4 16 74.954 20 141.2 94.508 25 141.253 94.508 5 141.253 74.954 5 141.2
4 16 85.083 5 126.241 74.954 5 141.2 94.508 5 141.253 97.302 5 138.459
4 16 73.106 20 139.965 72.954 20 139.2 67.755 20 139.136 70.138 20 141.187
5 24 53.489 0 86.453 53.489 20 86.453 18.737 0 66.218 79.082 0 104.354
5 24 -6.461 20 142 -6.461 0 142 22.945 0 160.491 -39 0 127
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © Mikkel Bech Jensen
Licensed under CC BY 4.0
