Official File parts/2473a.dat
Part Attributes:
File Header:

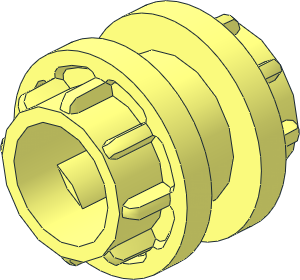

0 Technic Transmission Driving Ring 2L with 8 Teeth
0 Name: 2473a.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2024-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS BrickLink 2473, Rebrickable 2473
0 !HISTORY 2023-08-19 {LEGO Instructions App} Original part shape
0 !HISTORY 2023-09-17 [Philo] File preparation for LDraw Parts Tracker
0 !HISTORY 2024-06-30 [OrionP] Official Update 2024-05
Show contents
1 16 0 0 5 17.5 0 0 0 0 17.5 0 5 0 48\4-4cylo.dat
1 16 0 0 5 5.83333 0 0 0 0 5.83333 0 1 0 48\4-4ring2.dat
1 16 0 0 5 11.875 0 0 0 0 11.875 0 -10 0 4-4cylo.dat
1 16 0 0 18 2.375 0 0 0 0 2.375 0 -1 0 4-4ring4.dat
0 BFC INVERTNEXT
1 16 0 0 -18 9.5 0 0 0 0 9.5 0 36 0 4-4cylo.dat
1 16 0 0 18 11.875 0 0 0 0 11.875 0 -9 0 4-4cylo.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\2473as01.dat
1 16 0 0 0 1 0 0 0 -1 0 0 0 1 s\2473as01.dat
1 16 0 0 0 0.70711 -0.70711 0 0.70711 0.70711 0 0 0 1 s\2473as01.dat
1 16 0 0 0 0.70711 0.70711 0 0.70711 -0.70711 0 0 0 1 s\2473as01.dat
1 16 0 0 0 0 -1 0 1 0 0 0 0 1 s\2473as01.dat
1 16 0 0 0 0 1 0 1 0 0 0 0 1 s\2473as01.dat
1 16 0 0 0 -0.70711 -0.70711 0 0.70711 -0.70711 0 0 0 1 s\2473as01.dat
1 16 0 0 0 -0.70711 0.70711 0 0.70711 0.70711 0 0 0 1 s\2473as01.dat
1 16 0 0 0 -1 0 0 0 -1 0 0 0 1 s\2473as01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\2473as01.dat
1 16 0 0 0 -0.70711 0.70711 0 -0.70711 -0.70711 0 0 0 1 s\2473as01.dat
1 16 0 0 0 -0.70711 -0.70711 0 -0.70711 0.70711 0 0 0 1 s\2473as01.dat
1 16 0 0 0 0 1 0 -1 0 0 0 0 1 s\2473as01.dat
1 16 0 0 0 0 -1 0 -1 0 0 0 0 1 s\2473as01.dat
1 16 0 0 0 0.70711 0.70711 0 -0.70711 0.70711 0 0 0 1 s\2473as01.dat
1 16 0 0 0 0.70711 -0.70711 0 -0.70711 -0.70711 0 0 0 1 s\2473as01.dat
1 16 0 0 -5 5.83333 0 0 0 0 5.83333 0 -1 0 48\4-4ring2.dat
1 16 0 0 -18 2.375 0 0 0 0 2.375 0 1 0 4-4ring4.dat
1 16 0 0 -18 11.875 0 0 0 0 11.875 0 9 0 4-4cylo.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\2473as01.dat
1 16 0 0 0 1 0 0 0 -1 0 0 0 -1 s\2473as01.dat
1 16 0 0 0 0.70711 -0.70711 0 0.70711 0.70711 0 0 0 -1 s\2473as01.dat
1 16 0 0 0 0.70711 0.70711 0 0.70711 -0.70711 0 0 0 -1 s\2473as01.dat
1 16 0 0 0 0 -1 0 1 0 0 0 0 -1 s\2473as01.dat
1 16 0 0 0 0 1 0 1 0 0 0 0 -1 s\2473as01.dat
1 16 0 0 0 -0.70711 -0.70711 0 0.70711 -0.70711 0 0 0 -1 s\2473as01.dat
1 16 0 0 0 -0.70711 0.70711 0 0.70711 0.70711 0 0 0 -1 s\2473as01.dat
1 16 0 0 0 -1 0 0 0 -1 0 0 0 -1 s\2473as01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\2473as01.dat
1 16 0 0 0 -0.70711 0.70711 0 -0.70711 -0.70711 0 0 0 -1 s\2473as01.dat
1 16 0 0 0 -0.70711 -0.70711 0 -0.70711 0.70711 0 0 0 -1 s\2473as01.dat
1 16 0 0 0 0 1 0 -1 0 0 0 0 -1 s\2473as01.dat
1 16 0 0 0 0 -1 0 -1 0 0 0 0 -1 s\2473as01.dat
1 16 0 0 0 0.70711 0.70711 0 -0.70711 0.70711 0 0 0 -1 s\2473as01.dat
1 16 0 0 0 0.70711 -0.70711 0 -0.70711 -0.70711 0 0 0 -1 s\2473as01.dat
1 16 0 0 -5 17.5 0 0 0 0 17.5 0 -5 0 48\4-4cylo.dat
1 16 12.4126 -12.4126 -10 -8.77686 0 3.6355 3.6355 0 8.77686 0 20 0 1-8cylo.dat
1 16 0 0 -10 3.6355 0 8.77686 -8.77686 0 3.6355 0 -1 0 1-8edge.dat
1 16 0 0 -10 3.6355 0 8.77686 -8.77686 0 3.6355 0 1 0 1-8chrd.dat
1 16 12.4126 -12.4126 -10 -8.77686 0 3.6355 3.6355 0 8.77686 0 1 0 1-8chrd.dat
1 16 0 0 10 3.6355 0 8.77686 -8.77686 0 3.6355 0 1 0 1-8edge.dat
1 16 0 0 10 3.6355 0 8.77686 -8.77686 0 3.6355 0 -1 0 1-8chrd.dat
1 16 12.4126 -12.4126 10 -8.77686 0 3.6355 3.6355 0 8.77686 0 -1 0 1-8chrd.dat
2 24 8.7771 -3.6358 -10 8.7771 -3.6358 10
2 24 3.6357 -8.7771 -10 3.6357 -8.7771 10
1 16 12.4126 12.4126 -10 -3.6355 0 -8.77686 -8.77686 0 3.6355 0 20 0 1-8cylo.dat
1 16 0 0 -10 8.77686 0 -3.6355 3.6355 0 8.77686 0 -1 0 1-8edge.dat
1 16 0 0 -10 8.77686 0 -3.6355 3.6355 0 8.77686 0 1 0 1-8chrd.dat
1 16 12.4126 12.4126 -10 -3.6355 0 -8.77686 -8.77686 0 3.6355 0 1 0 1-8chrd.dat
1 16 0 0 10 8.77686 0 -3.6355 3.6355 0 8.77686 0 1 0 1-8edge.dat
1 16 0 0 10 8.77686 0 -3.6355 3.6355 0 8.77686 0 -1 0 1-8chrd.dat
1 16 12.4126 12.4126 10 -3.6355 0 -8.77686 -8.77686 0 3.6355 0 -1 0 1-8chrd.dat
2 24 3.6358 8.7771 -10 3.6358 8.7771 10
2 24 8.7771 3.6357 -10 8.7771 3.6357 10
1 16 -12.4126 12.4126 -10 8.77686 0 -3.6355 -3.6355 0 -8.77686 0 20 0 1-8cylo.dat
1 16 0 0 -10 -3.6355 0 -8.77686 8.77686 0 -3.6355 0 -1 0 1-8edge.dat
1 16 0 0 -10 -3.6355 0 -8.77686 8.77686 0 -3.6355 0 1 0 1-8chrd.dat
1 16 -12.4126 12.4126 -10 8.77686 0 -3.6355 -3.6355 0 -8.77686 0 1 0 1-8chrd.dat
1 16 0 0 10 -3.6355 0 -8.77686 8.77686 0 -3.6355 0 1 0 1-8edge.dat
1 16 0 0 10 -3.6355 0 -8.77686 8.77686 0 -3.6355 0 -1 0 1-8chrd.dat
1 16 -12.4126 12.4126 10 8.77686 0 -3.6355 -3.6355 0 -8.77686 0 -1 0 1-8chrd.dat
2 24 -8.7771 3.6358 -10 -8.7771 3.6358 10
2 24 -3.6357 8.7771 -10 -3.6357 8.7771 10
1 16 -12.4126 -12.4126 -10 3.6355 0 8.77686 8.77686 0 -3.6355 0 20 0 1-8cylo.dat
1 16 0 0 -10 -8.77686 0 3.6355 -3.6355 0 -8.77686 0 -1 0 1-8edge.dat
1 16 0 0 -10 -8.77686 0 3.6355 -3.6355 0 -8.77686 0 1 0 1-8chrd.dat
1 16 -12.4126 -12.4126 -10 3.6355 0 8.77686 8.77686 0 -3.6355 0 1 0 1-8chrd.dat
1 16 0 0 10 -8.77686 0 3.6355 -3.6355 0 -8.77686 0 1 0 1-8edge.dat
1 16 0 0 10 -8.77686 0 3.6355 -3.6355 0 -8.77686 0 -1 0 1-8chrd.dat
1 16 -12.4126 -12.4126 10 3.6355 0 8.77686 8.77686 0 -3.6355 0 -1 0 1-8chrd.dat
2 24 -3.6358 -8.7771 -10 -3.6358 -8.7771 10
2 24 -8.7771 -3.6357 -10 -8.7771 -3.6357 10
