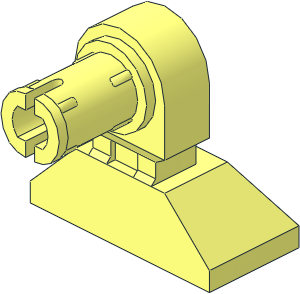

Minifig Robot Leg 1 x 2 x 1.667 with Pin with Square Centre Hole

File Header:

0 Minifig Robot Leg  1 x  2 x  1.667 with Pin with Square Centre Hole
0 Name: 51066.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS astromech, droid, Star Wars
