File Detail parts/2886.dat

Official File parts/2886.dat

Part Attributes:

File Header:

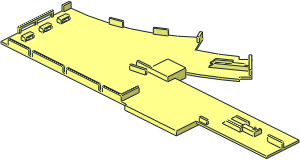

0 ~Monorail Track Point Left - Bottom
0 Name: 2886.dat
0 Author: Mikkel Bech Jensen [gaia]
0 !LDRAW_ORG Part UPDATE 2025-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2020-09-05 [PTadmin] Official Update 2020-02
0 !HISTORY 2025-09-27 [OrionP] Changed winding to CCW
0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\2881s01.dat
1 16 39.142 0 124.911 .831 0 -.556 0 1 0 .556 0 .831 s\2881s02.dat
1 16 190 0 0 1 0 0 0 1 0 0 0 1 s\2881s03.dat
4 16 67.19725 8 134.0358 20.322 8 102.695 12.843 16 97.691 67.19712 16 134.0359
4 16 57.986 16 132.707 57.986 8 132.707 64.31346 8 136.9195 64.31346 16 136.9195
3 16 57.986 8 132.707 67.19725 8 134.0358 64.31346 8 136.9195
3 16 20.322 8 102.695 67.19725 8 134.0358 57.986 8 132.707
3 16 41.366 8 121.587 20.322 8 102.695 57.986 8 132.707
3 16 18.098 8 106.019 20.322 8 102.695 41.366 8 121.587
4 16 219 16 9.5 244 16 2 276 16 2 276 16 36
4 16 276 16 36 0 16 36 153 16 12 190 16 12
4 16 190 16 12 216 16 9.5 219 16 9.5 276 16 36
4 16 244 16 -2 244 16 2 219 16 9.5 219 16 -6.5
4 16 219 16 -6.5 276 16 -36 276 16 -2 244 16 -2
4 16 193 16 -12 139 16 -29 276 16 -36 219 16 -6.5
4 16 153 16 -12 123 16 -29 139 16 -29 193 16 -12
4 16 0 16 36 123 16 -29 153 16 -12 153 16 -8
3 16 153 16 8 0 16 36 153 16 -8
3 16 153 16 12 0 16 36 153 16 8
4 16 76.752 16 124.481 76.752 5 124.481 67.19725 8 134.0358 67.19712 16 134.0359
4 16 64.31346 8 136.9195 44.037 5 157.196 44.037 16 157.196 64.31346 16 136.9195
4 16 76.752 5 124.481 44.037 5 157.196 64.31346 8 136.9195 67.19725 8 134.0358
4 16 44.037 16 157.196 55.484 16 136.4465 57.986 16 132.707 64.31346 16 136.9195
4 16 29.505 16 149.102 34.694 16 131.559 55.484 16 136.4465 44.037 16 157.196
4 16 3.947 16 110.987 34.694 16 131.559 29.505 16 149.102 22.894 16 155.713
3 16 3.947 16 110.987 22.894 16 155.713 -4.648 16 138.462
3 16 -40.78 16 121.767 3.947 16 110.987 -4.648 16 138.462
3 16 6.171 16 107.663 3.947 16 110.987 -40.78 16 121.767
3 16 -40 16 60 6.171 16 107.663 -40.78 16 121.767
3 16 10.619 16 101.015 6.171 16 107.663 -40 16 60
3 16 12.843 16 97.691 10.619 16 101.015 -40 16 60
3 16 -3.394 16 60 12.843 16 97.691 -40 16 60
3 16 0 16 61.728 12.843 16 97.691 -3.394 16 60
3 16 17.229 16 69.936 12.843 16 97.691 0 16 61.728
3 16 51.241 16 89.786 12.843 16 97.691 17.229 16 69.936
3 16 67.19712 16 134.0359 12.843 16 97.691 51.241 16 89.786
3 16 69.225 16 110.383 67.19712 16 134.0359 51.241 16 89.786
3 16 69.225 16 110.383 76.752 16 124.481 67.19712 16 134.0359
4 16 29.505 20 149.102 43.654 20 163.248 52.991 20 134.7785 41.357 20 126.9945
4 16 82.872 20 124.03 55.771 20 130.6235 52.991 20 134.7785 43.654 20 163.248
4 16 44.137 20 122.8395 55.771 20 130.6235 82.872 20 124.03 69.225 20 110.383
4 16 51.241 20 89.786 -4.648 20 138.462 41.357 20 126.9945 44.137 20 122.8395
4 16 -4.648 20 138.462 22.894 20 155.713 29.505 20 149.102 41.357 20 126.9945
4 16 51.241 20 89.786 44.137 20 122.8395 69.225 20 110.383 74.36 20 105.248
2 24 57.986 8 132.707 64.31346 8 136.9195
2 24 64.31346 8 136.9195 64.31346 16 136.9195
2 24 57.986 16 132.707 64.31346 16 136.9195
2 24 44.037 16 157.196 64.31346 16 136.9195
2 24 64.31346 8 136.9195 67.19725 8 134.0358
2 24 67.19712 16 134.0359 67.19725 8 134.0358
2 24 12.843 16 97.691 67.19712 16 134.0359
2 24 20.322 8 102.695 67.19725 8 134.0358

Status:

Official
