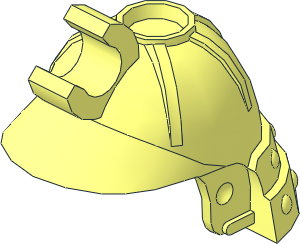

0 Minifig Helmet with Clip and Long Visor
0 Name: 98128.dat
0 Author: Evert-Jan Boer [ejboer]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP Visor hinge point at Y 11.375 and Z 1.25
0 BFC CERTIFY CCW
0 !CATEGORY Minifig Headwear
0 !KEYWORDS Ninja, samurai
0 !HISTORY 2013-08-14 {LEGO Digital Designer} Original part shape
0 !HISTORY 2023-09-11 [ejboer] File preparation for LDraw Parts Tracker
