Unofficial File parts/23985.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

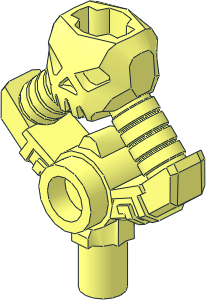

0 Minifig Sword Hilt with Skull
0 Name: 23985.dat
0 Author: Evert-Jan Boer [ejboer]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Minifig Accessory
0 !HISTORY 2016-03-18 {LEGO Digital Designer} Original part shape
0 !HISTORY 2023-09-22 [ejboer] File preparation for LDraw Parts Tracker
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitivesShow file code:
1 16 0 0 0 -4 0 0 0 -10.2 0 0 0 4 4-4cyli.dat
1 16 0 -10.2 0 0 0 -4 0 -.55 0 -4 0 0 1-4cyls.dat
1 16 0 -10.2 0 0 0 4 0 -.55 0 -4 0 0 1-4cyls.dat
1 16 0 -10.2 0 0 0 4 0 -.55 0 4 0 0 1-4cyls.dat
1 16 0 -10.2 0 0 0 -4 0 -.55 0 4 0 0 1-4cyls.dat
1 16 0 0 0 4 0 0 0 -1 0 0 0 4 4-4disc.dat
1 16 0 0 0 4 0 0 0 1 0 0 0 4 4-4edge.dat
1 16 0 -20 -4.75 1 0 0 0 0 -1 0 1 0 stud2.dat
1 16 0 -20 -4.75 6.9 0 0 0 0 -6.9 0 1 0 4-4disc.dat
1 16 0 -20 0 -3 0 0 0 0 -3 0 4 0 4-4cylo.dat
1 16 0 -20 4 -3 0 0 0 0 -3 0 -1 0 4-4disc.dat
1 16 0 -20 -.55 .6 0 0 0 0 -.6 0 .55 0 4-4con5.dat
1 16 0 -20 -.55 3.6 0 0 0 0 3.6 0 -1 0 4-4edge.dat
1 16 0 -20 -.55 .4 0 0 0 0 .4 0 -1 0 4-4ring9.dat
1 16 0 -20 -.55 1 0 0 0 0 1 0 -1 0 4-4ring4.dat
0 BFC INVERTNEXT
1 16 0 -20 -.55 5 0 0 0 0 5 0 5.3 0 4-4cylo.dat
1 16 0 -20 4.75 1 0 0 0 0 1 0 -1 0 4-4ring5.dat
1 16 0 -20 4.75 .6 0 0 0 0 .6 0 -1 0 4-4ring10.dat
1 16 0 -20 4.75 .3 0 0 0 0 .3 0 -1 0 4-4ring22.dat
1 16 0 -20 -4.75 6.9 0 0 0 0 6.9 0 9.5 0 4-4cylo.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\23985s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\23985s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\23985s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\23985s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\23985s02.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\23985s02.dat
3 16 2.6406 -26.3749 -3.036 1.381 -28.85 -3 0 -26.9 -2.935
3 16 0 -26.9 -2.935 1.381 -28.85 -3 0 -29.316 -2.983
4 16 0 -29.316 -2.983 1.381 -28.85 -3 1.328 -28.439 2.946 0 -28.878 2.968
3 16 0 -28.878 2.968 1.328 -28.439 2.946 0 -26.9 2.936
3 16 1.381 -28.85 -3 2.6406 -26.3749 -3.036 2.6406 -26.3749 3.001
3 16 1.381 -28.85 -3 2.6406 -26.3749 3.001 1.328 -28.439 2.946
3 16 2.6406 -26.3749 3.001 0 -26.9 2.936 1.328 -28.439 2.946
2 24 2.6406 -26.3749 -3.036 1.381 -28.85 -3
5 24 0 -26.9 -2.935 1.381 -28.85 -3 2.6406 -26.3749 -3.036 0 -29.316 -2.983
2 24 1.381 -28.85 -3 0 -29.316 -2.983
2 24 0 -28.878 2.968 1.328 -28.439 2.946
5 24 1.328 -28.439 2.946 0 -26.9 2.936 2.6406 -26.3749 3.001 0 -28.878 2.968
2 24 1.328 -28.439 2.946 2.6406 -26.3749 3.001
5 24 1.328 -28.439 2.946 1.381 -28.85 -3 0 -28.878 2.968 2.6406 -26.3749 3.001
5 24 2.6406 -26.3749 3.001 1.381 -28.85 -3 2.6406 -26.3749 -3.036 1.328 -28.439 2.946
2 24 0 -26.9 -2.935 2.6406 -26.3749 -3.036
2 24 2.6406 -26.3749 3.001 0 -26.9 2.936
2 24 2.6406 -26.3749 -3.036 2.6406 -26.3749 3.001
3 16 -1.381 -28.85 -3 -2.6406 -26.3749 -3.036 0 -26.9 -2.935
3 16 -1.381 -28.85 -3 0 -26.9 -2.935 0 -29.316 -2.983
4 16 -1.328 -28.439 2.946 -1.381 -28.85 -3 0 -29.316 -2.983 0 -28.878 2.968
3 16 -1.328 -28.439 2.946 0 -28.878 2.968 0 -26.9 2.936
3 16 -2.6406 -26.3749 -3.036 -1.381 -28.85 -3 -2.6406 -26.3749 3.001
3 16 -2.6406 -26.3749 3.001 -1.381 -28.85 -3 -1.328 -28.439 2.946
3 16 0 -26.9 2.936 -2.6406 -26.3749 3.001 -1.328 -28.439 2.946
2 24 -1.381 -28.85 -3 -2.6406 -26.3749 -3.036
5 24 -1.381 -28.85 -3 0 -26.9 -2.935 -2.6406 -26.3749 -3.036 0 -29.316 -2.983
2 24 0 -29.316 -2.983 -1.381 -28.85 -3
2 24 -1.328 -28.439 2.946 0 -28.878 2.968
5 24 0 -26.9 2.936 -1.328 -28.439 2.946 -2.6406 -26.3749 3.001 0 -28.878 2.968
2 24 -2.6406 -26.3749 3.001 -1.328 -28.439 2.946
5 24 -1.381 -28.85 -3 -1.328 -28.439 2.946 0 -28.878 2.968 -2.6406 -26.3749 3.001
5 24 -1.381 -28.85 -3 -2.6406 -26.3749 3.001 -2.6406 -26.3749 -3.036 -1.328 -28.439 2.946
2 24 -2.6406 -26.3749 -3.036 0 -26.9 -2.935
2 24 0 -26.9 2.936 -2.6406 -26.3749 3.001
2 24 -2.6406 -26.3749 3.001 -2.6406 -26.3749 -3.036
5 24 -1.328 -28.439 2.946 0 -29.316 -2.983 -1.381 -28.85 -3 0 -28.878 2.968
5 24 0 -29.316 -2.983 0 -26.9 -2.935 -1.381 -28.85 -3 1.381 -28.85 -3
5 24 0 -26.9 2.936 0 -28.878 2.968 1.328 -28.439 2.946 -1.328 -28.439 2.946
5 24 0 -28.878 2.968 0 -29.316 -2.983 -1.328 -28.439 2.946 1.381 -28.85 -3Status
Errors Found (HN)
Current Votes:
Willy Tschager [Holly-Wood]
This part has the following automated holds from the Parts Tracker
-
Has Uncertified Subfiles
Part Dependencies
Official parents and subparts
Part Events
Evert-Jan Boer [ejboer]
initially submitted the part.
2023-09-22 15:06:54
Magnus Forsberg [MagFors]
posted a vote of Hold
2023-09-22 16:24:47
Orion Pobursky [OrionP]
posted a vote of Hold
2023-09-22 16:36:41
subfile references use "/" vice "\"
Evert-Jan Boer [ejboer]
submitted a new version of the part (all votes reset).
2023-09-23 07:20:00
updated subfile reference
Magnus Forsberg [MagFors]
posted a vote of Hold
2023-09-23 08:05:57
Scaling of the stud.dat primitive is not allowed.
Evert-Jan Boer [ejboer]
submitted a new version of the part (all votes reset).
2023-09-23 14:13:59
Corrected the stud scalings
Magnus Forsberg [MagFors]
made the following comment.
2023-09-23 16:30:22
I think the orientation of the stud might be wrong. Guess the logo should be horizontal.
Is it possible to insert an axle into the skull?
Is it possible to insert an axle into the skull?
Magnus Forsberg [MagFors]
made the following comment.
2023-09-23 16:35:18
cgi images, and the ldd download, show a different inside of the skull.
Magnus Forsberg [MagFors]
made the following comment.
2023-09-23 16:38:21
The ldd model has some edgelines on the side of the skull that I think are missing.
Gerald Lasser [GeraldLasser]
posted a vote of Hold
2023-09-23 16:50:52
The hole at the top of the skull should be able to fit a standard bar, it is too small to do so now
Magnus Forsberg [MagFors]
posted a vote of Hold
2023-09-24 07:37:19
Due to the reasons above. The skull is not correct.
Evert-Jan Boer [ejboer]
made the following comment.
2023-09-24 08:16:55
That was indeed a concern, should it be able to hold a axle, bar or both? I took the technic brick with axle hole as example, it has the same issue with a bar
Evert-Jan Boer [ejboer]
made the following comment.
2023-09-24 08:21:45
Now i tested it, it can hold the axle of a brick separator, but that is a smaller axle.
See difference on inside at https://rebrickable.com/parts/23985/weapon-sword-hilt-with-skull-and-bar-djinn/, the photo is correct, the renders are not. Will do some changes and look at the skull edges as well.
See difference on inside at https://rebrickable.com/parts/23985/weapon-sword-hilt-with-skull-and-bar-djinn/, the photo is correct, the renders are not. Will do some changes and look at the skull edges as well.
Magnus Forsberg [MagFors]
edited the part header.
2023-10-16 20:23:29
Header Edits
category:
Minifig
to
Minifig Accessory
Orion Pobursky [OrionP]
submitted a new version of the part (all votes reset).
2024-03-23 00:59:43
Update ring primitives via script. This will not reset the vote status of the part.
Jeff Jones [notmaster]
made the following comment.
2025-01-25 15:43:11
dont know if im stupid but
the hole at the top of the skull doesnt seem too small for the bar
maybe add ninjago djinn blade and sets ref keywords
and maybe add a help line for placing angle of the axe head (53454)
the hole at the top of the skull doesnt seem too small for the bar
maybe add ninjago djinn blade and sets ref keywords
and maybe add a help line for placing angle of the axe head (53454)
Gerald Lasser [GeraldLasser]
cancelled their vote.
2025-01-25 18:01:44
subfile was updated with the fix to hold the bar, removing hold
Magnus Forsberg [MagFors]
cancelled their vote.
2025-01-26 09:17:49
I think the stud should be rotated, to have the logo horizontal.
Jeff Jones [notmaster]
made the following comment.
2025-08-25 22:18:58
bump
Willy Tschager [Holly-Wood]
made the following comment.
2025-09-28 08:32:18
* Stud orientation
* Overlap:
2 24 0 -38.723 -8.391 0 -36.395 -7.583
2 24 0 -36.395 -7.583 0 -35.056 -2.458
* Overlap:
2 24 0 -38.723 -8.391 0 -36.395 -7.583
2 24 0 -36.395 -7.583 0 -35.056 -2.458
Willy Tschager [Holly-Wood]
posted a vote of Hold
2026-07-02 09:14:02
* Upgrade to HOILD
Interesting subfile structure.
