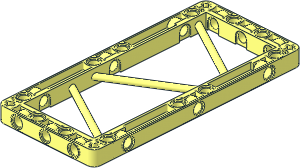

Technic Beam 15 x 7 with Open Center and 3 Truss Bars

File Header:

0 Technic Beam 15 x  7 with Open Center and 3 Truss Bars
0 Name: 79766.dat
0 Author: Ralf Kochanowski [rkoch]
0 !LDRAW_ORG Part UPDATE 2024-07
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-08-26 [OrionP] Official Update 2024-07
