Official File parts/s/79767s02.dat
File Header:

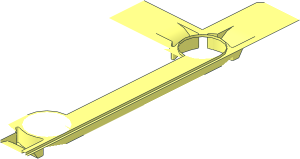

0 ~Technic Beam 15 x 5 with Open Center and 3 Truss Bars Quarter Half
0 Name: s\79767s02.dat
0 Author: Ralf Kochanowski [rkoch]
0 !LDRAW_ORG Subpart UPDATE 2024-07
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2024-08-26 [OrionP] Official Update 2024-07
Show contents
1 16 40 -10 10 1 0 0 0 1 0 0 0 1 npeghol21.dat
1 16 40 -10 110 1 0 0 0 1 0 0 0 -1 npeghol22.dat
1 16 30 -10 100 0 0 1 0 1 0 1 0 0 npeghol22.dat
1 16 31 -8.5 139 1 1 0 0 0 -0.5 1 0 0 rect.dat
4 16 30 -8 110 30 -9 110 30 -9 138 30 -8 138
4 16 30 -8 138 32 -8 140 32 -8 128 30 -8 128
4 16 47.071 -9 120 50 -9 140 32 -9 140 36.173 -9 120
3 16 50 -9 120 50 -9 140 47.071 -9 120
4 16 32 -9 120 36.173 -9 120 32 -9 140 30 -9 138
4 16 30 -9 110 32 -9 108 32 -9 120 30 -9 138
1 16 40 -9 100 1 0 0 0 1 0 0 0 1 3-4ring9.dat
2 24 30 -8 138 30 -8 128
2 24 32 -8 140 32 -8 128
2 24 30 -9 138 30 -9 110
1 16 40 -9 100 0 0 -10 0 1 0 -10 0 0 1-8ndis.dat
2 24 50 -9 100 50 -9 140
1 16 40 -10 100 0 0 -9 0 1 0 -9 0 0 3-4cyli.dat
1 16 40 -10 100 0 0 -9 0 1 0 -9 0 0 3-4edge.dat
1 16 40 -9 100 0 0 -9 0 1 0 -9 0 0 3-4edge.dat
4 16 20 -9 96.173 20 -9 107.071 0 -9 110 0 -9 92
3 16 0 -9 110 20 -9 107.071 20 -9 110
3 16 20 -9 92 20 -9 96.173 0 -9 92
2 24 30 -9 110 0 -9 110
1 16 40 -9 100 10 0 0 0 1 0 0 0 10 1-8ndis.dat
1 16 40 -6 100 9 0 0 0 -1 0 0 0 -9 1-4ndis.dat
1 16 40 -6 20 9 0 0 0 -1 0 0 0 9 1-4ndis.dat
4 16 50 -6 91 49 -6 91 49 -6 100 50 -6 100
4 16 50 -6 20 49 -6 20 49 -6 29 50 -6 29
2 24 50 -6 91 50 -6 100
2 24 50 -6 20 50 -6 29
2 24 50 -6 20 49 -6 20
2 24 50 -6 100 49 -6 100
2 24 40 -9 91 40 -10 91
2 24 40 -9 91 40 -9 90
4 16 40 -9 90 40 -10 90 40 -10 91 40 -9 91
1 16 40 -10 100 9 0 0 0 1 0 0 0 -9 1-4ndis.dat
1 16 40 -10 20 9 0 0 0 1 0 0 0 9 1-4ndis.dat
4 16 49 -10 29 49 -10 91 40 -10 91 40 -10 29
1 16 40 -10 20 0 0 -1 0 1 0 1 0 0 2-4ring9.dat
1 16 40 -10 20 0 0 1 0 1 0 -1 0 0 1-8ring9.dat
1 16 40 -10 20 9 0 0 0 1 0 0 0 -9 1-8ndis.dat
1 16 40 -10 20 -10 0 0 0 1 0 0 0 -10 1-8ndis.dat
0 BFC INVERTNEXT
1 16 49.5 -9.5 50 0 -0.5 0 0 0 0.5 -50 0 0 box2-9p.dat
4 16 50 -9 111 50 -9 9 50 -6 20 50 -6 100
4 16 47.071 -10 0 49 -10 0 49 -10 11 47.071 -10 12.929
3 16 33.5443 -10 10.5927 32.9285 -10 12.9287 30 -10 10
3 16 33.826 -10 10.109 33.5443 -10 10.5927 30 -10 10
3 16 36.173 -10 8.31497 33.826 -10 10.109 30 -10 10
1 16 40 -10 20 -10 0 0 0 -1 0 0 0 10 1-4edge.dat
2 24 40 -10 91 40 -10 30
Status:
Official
This part has the following warnings
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 3 16 36.173 -10 8.31497 33.826 -10 10.109 30 -10 10
- Number in description may need a leading space
