Official File parts/s/79767s01.dat
File Header:

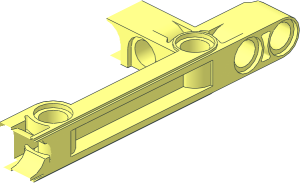

0 ~Technic Beam 15 x 5 with Open Center and 3 Truss Bars Quarter
0 Name: s\79767s01.dat
0 Author: Ralf Kochanowski [rkoch]
0 !LDRAW_ORG Subpart UPDATE 2024-07
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2024-08-26 [OrionP] Official Update 2024-07
Show contents
1 16 40 0 20 1 0 0 0 1 0 0 0 1 connhole.dat
1 16 40 0 100 1 0 0 0 1 0 0 0 1 connhole.dat
1 16 20 0 100 -1 0 0 0 0 1 0 1 0 connhol2.dat
1 16 40 0 120 0 1 0 -1 0 0 0 0 1 connhol2.dat
1 16 40 0 140 0 -1 0 0 0 1 -1 0 0 connhol3.dat
1 16 10 0 110 0 0 1 1 0 0 0 -8 0 npeghol2.dat
1 16 50 0 130 0 -8 0 1 0 0 0 0 -1 npeghol2.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\79767s02.dat
1 16 0 0 0 1 0 0 0 -1 0 0 0 1 s\79767s02.dat
0 BFC INVERTNEXT
1 16 50 0 60 0 -8 0 0 0 -6 31 0 0 box3u8p.dat
1 16 32 0 140 0 1 0 -2 0 0 0 0 2 4-4ring3.dat
1 16 50 0 140 0 -18 0 -9 0 0 0 0 9 2-4cyli.dat
1 16 32 0 140 0 1 0 8 0 0 0 0 -8 2-4ndis.dat
1 16 50 0 140 0 -1 0 -9 0 0 0 0 9 2-4edge.dat
1 16 32 0 140 0 -1 0 -9 0 0 0 0 9 2-4edge.dat
1 16 32 0 140 0 1 0 -1 0 0 0 0 1 2-4ring8.dat
1 16 10 9 91 0 0 2 0 -1 0 1 0 0 rect2p.dat
4 16 32 8 128 32 -8 128 32 -8 132 32 8 132
1 16 30 0 120 0 1 0 -8 0 0 0 0 -8 2-4ndis.dat
1 16 50 0 120 0 -1 0 -9 0 0 0 0 -9 2-4ndis.dat
4 16 50 9 111 50 -9 111 50 -6 100 50 6 100
4 16 30 8 110 30 -8 110 30 -8 112 30 8 112
1 16 29.5 0 110 0.5 0 0 0 0 9 0 -1 0 rect1.dat
1 16 20 0 110 0 0 9 -9 0 0 0 -1 0 2-4ndis.dat
1 16 20 0 90 8 0 0 0 0 -8 0 1 0 2-4ndis.dat
1 16 0 0 90 8 0 0 0 0 -8 0 1 0 1-4ndis.dat
4 16 8 9 90 12 9 90 12 -8 90 8 -8 90
4 16 40 -8 90 28 -8 90 28 9 90 40 9 90
4 16 40 -8 90 40 -9 90 0 -9 90 0 -8 90
2 24 28 9 90 40 9 90
2 24 40 9 90 40 -9 90
2 24 8 9 90 12 9 90
0 BFC INVERTNEXT
1 16 20 8.5 90 0 0 -8 -0.5 0 0 0 2 0 box3u5p.dat
4 16 30 -9 90 32 -9 92 0 -9 92 0 -9 90
2 24 0 -9 90 40 -9 90
4 16 50 6 20 49 6 20 49 -6 20 50 -6 20
4 16 49 -6 100 49 6 100 50 6 100 50 -6 100
4 16 42 -6 28.6023 42 6 28.6023 42 6 29 42 -6 29
4 16 42 6 91 42 6 91.3977 42 -6 91.3977 42 -6 91
4 16 42 -6 91.3977 42 6 91.3977 43.4443 6 91.6849 43.4443 -6 91.6849
4 16 43.4443 6 28.3151 42 6 28.6023 42 -6 28.6023 43.4443 -6 28.3151
4 16 40 -10 30 40 -10 90 40 10 90 40 10 30
4 16 30 -10 20 30 10 20 30 10 10 30 -10 10
1 16 40 -10 20 -10 0 0 0 20 0 0 0 10 1-4cyli.dat
1 16 40 6 20 9 0 0 0 -12 0 0 0 9 3-16cyli.dat
1 16 40 6 20 9 0 0 0 -1 0 0 0 9 3-16edge.dat
1 16 40 -6 20 9 0 0 0 -1 0 0 0 9 3-16edge.dat
1 16 40 -6 100 9 0 0 0 12 0 0 0 -9 3-16cyli.dat
1 16 40 -6 100 9 0 0 0 1 0 0 0 -9 3-16edge.dat
1 16 40 6 100 9 0 0 0 1 0 0 0 -9 3-16edge.dat
2 24 50 -6 100 50 6 100
2 24 50 -6 20 50 6 20
2 24 49 -6 20 49 6 20
2 24 42 6 91 42 6 91.3977
2 24 42 6 91.3977 43.4443 6 91.6849
2 24 42 6 91.3977 42 -6 91.3977
2 24 42 -6 91 42 -6 91.3977
2 24 42 -6 91.3977 43.4443 -6 91.6849
2 24 49 -6 100 49 6 100
2 24 42 -6 29 42 -6 28.6023
2 24 42 -6 28.6023 43.4443 -6 28.3151
2 24 42 6 29 42 6 28.6023
2 24 42 6 28.6023 43.4443 6 28.3151
2 24 42 6 28.6023 42 -6 28.6023
2 24 40 10 30 40 -10 30
1 16 30 0 0 0 1 0 0 0 -8 8 0 0 1-4ndis.dat
4 16 30 -8 8 30 -10 10 30 10 10 30 10 8
3 16 32.9285 -10 12.9287 30 -10 10 33.5443 -10 10.5927
3 16 33.5443 -10 10.5927 30 -10 10 33.826 -10 10.109
3 16 33.826 -10 10.109 30 -10 10 36.173 -10 8.31497
1 16 40 -10 20 -10 0 0 0 -1 0 0 0 10 1-4edge.dat
1 16 50 0 0 0 -1 0 -9 0 0 0 0 9 2-4ndis.dat
4 16 50 6 20 50 -6 20 50 -9 9 50 9 9
4 16 28 9 92 32 9 92 30 9 90 28 9 90
4 16 30 -10 10 30 -8 8 30 -8 0 30 -10 0
4 16 30 -10 10 30 -10 0 36.173 -10 0 36.173 -10 8.31497
2 24 30 -10 0 30 -10 20
2 24 30 10 20 30 10 8
4 16 30 10 8 30 10 10 36.173 10 8.3151 36.173 10 8
4 16 32 10 8 36.173 10 8 36.173 10 0 32 10 0
Status:
Official
This part has the following warnings
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 3 16 33.826 -10 10.109 30 -10 10 36.173 -10 8.31497
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 4 16 30 -10 10 30 -10 0 36.173 -10 0 36.173 -10 8.31497
- Number in description may need a leading space
