File Detail parts/79767.dat

Official File parts/79767.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

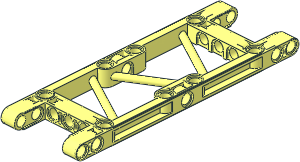

Technic Beam 15 x 5 with Open Center and 3 Truss Bars

File Header:

0 Technic Beam 15 x  5 with Open Center and 3 Truss Bars
0 Name: 79767.dat
0 Author: Ralf Kochanowski [rkoch]
0 !LDRAW_ORG Part UPDATE 2024-07
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-08-26 [OrionP] Official Update 2024-07

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\79767s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\79767s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\79767s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\79767s01.dat

1 16 40 0 0 0 1 0 0 0 1 1 0 0 connhol2.dat
0 BFC INVERTNEXT
1 16 30 9 0 0 2 0 -1 0 0 0 0 8 box3u5p.dat
1 16 0 0 100 -1 0 0 0 0 1 0 1 0 connhol2.dat
0 BFC INVERTNEXT
1 16 0 8.5 90 0 0 -8 -0.5 0 0 0 2 0 box3u5p.dat
1 16 -40 0 0 0 -1 0 0 0 1 1 0 0 connhol2.dat
0 BFC INVERTNEXT
1 16 -30 9 0 0 -2 0 -1 0 0 0 0 8 box3u5p.dat
1 16 0 0 -100 -1 0 0 0 0 1 0 -1 0 connhol2.dat
0 BFC INVERTNEXT
1 16 0 8.5 -90 0 0 -8 -0.5 0 0 0 -2 0 box3u5p.dat

1 16 40 0 36.941 0 -80 0 0 0 -4 4.6188 46.118 0 4-4cylo.dat
1 16 40 0 -83.059 0 -80 0 0 0 -4 4.6188 46.118 0 4-4cylo.dat
1 16 30.5 0 17.6092 0 -61 0 0 0 4 -4.6188 -35.2184 0 4-4cyli.dat
1 16 -30 0 -17.3 0 1 0 4 0 0 0 0 4.6188 2-4edge.dat
1 16 30 0 17.2305 0 1 0 4 0 0 0 0 -4.6188 2-4edge.dat

2 24 -30 -4 -17.3 -30 -3.6956 -19.0676
2 24 -30 -3.6956 -19.0676 -30 -3.17 -20
2 24 -30 -3.17 -20 -30.12 -2.82 -20.65
2 24 -30.12 -2.82 -20.65 -30.38 -1.52 -21.78
2 24 -30.38 -1.52 -21.78 -30.46 -0 -22.21
2 24 -30.46 -0 -22.21 -30.38 1.52 -21.78
2 24 -30.38 1.52 -21.78 -30.12 2.82 -20.65
2 24 -30.12 2.82 -20.65 -30 3.17 -20
2 24 -30 3.17 -20 -30 3.6956 -19.0676
2 24 -30 3.6956 -19.0676 -30 4 -17.3

2 24 30 -4 17.3 30 -3.6956 19.0676
2 24 30 -3.6956 19.0676 30 -3.17 20
2 24 30 -3.17 20 30.12 -2.82 20.65
2 24 30.12 -2.82 20.65 30.38 -1.52 21.78
2 24 30.38 -1.52 21.78 30.46 -0 22.21
2 24 30.46 -0 22.21 30.38 1.52 21.78
2 24 30.38 1.52 21.78 30.12 2.82 20.65
2 24 30.12 2.82 20.65 30 3.17 20
2 24 30 3.17 20 30 3.6956 19.0676
2 24 30 3.6956 19.0676 30 4 17.3

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Ralf Kochanowski [rkoch]

initially submitted the part.

2023-09-24 09:31:19

Rene Rechthaler [Blechtaler]

posted a vote of Hold.

2023-09-24 09:41:26

outer bars are too short on one side, center bar should go around that outer cylinder of the pinhole instead of ending at the plane.
